17
4

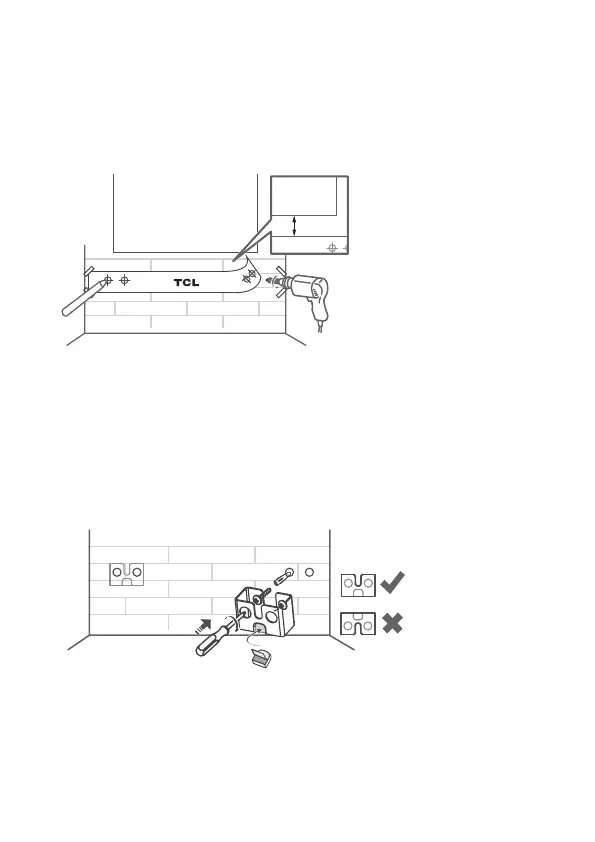

Mark on the wall using each marking on the template on the
template through the mounting holes.
5
Take away the wall mount template.
6
Drill a screw hole at each marking on the wall.
> 5cm
TV
TV
1
7
Insert the supplied wall anchors into 4 screw holes on the
wall.
8
Insert the supplied wall bracket screws into the wall
anchors.
9
Fix and tighten the wall bracket screws on the wall. Stick the
silicone pads on the wall mount brackets when necessary to
adjust the direction of the Sound Bar main unit.
10
Replace the screws at the back of the Sound Bar main unit
with the supplied wall mounting screws.
