1

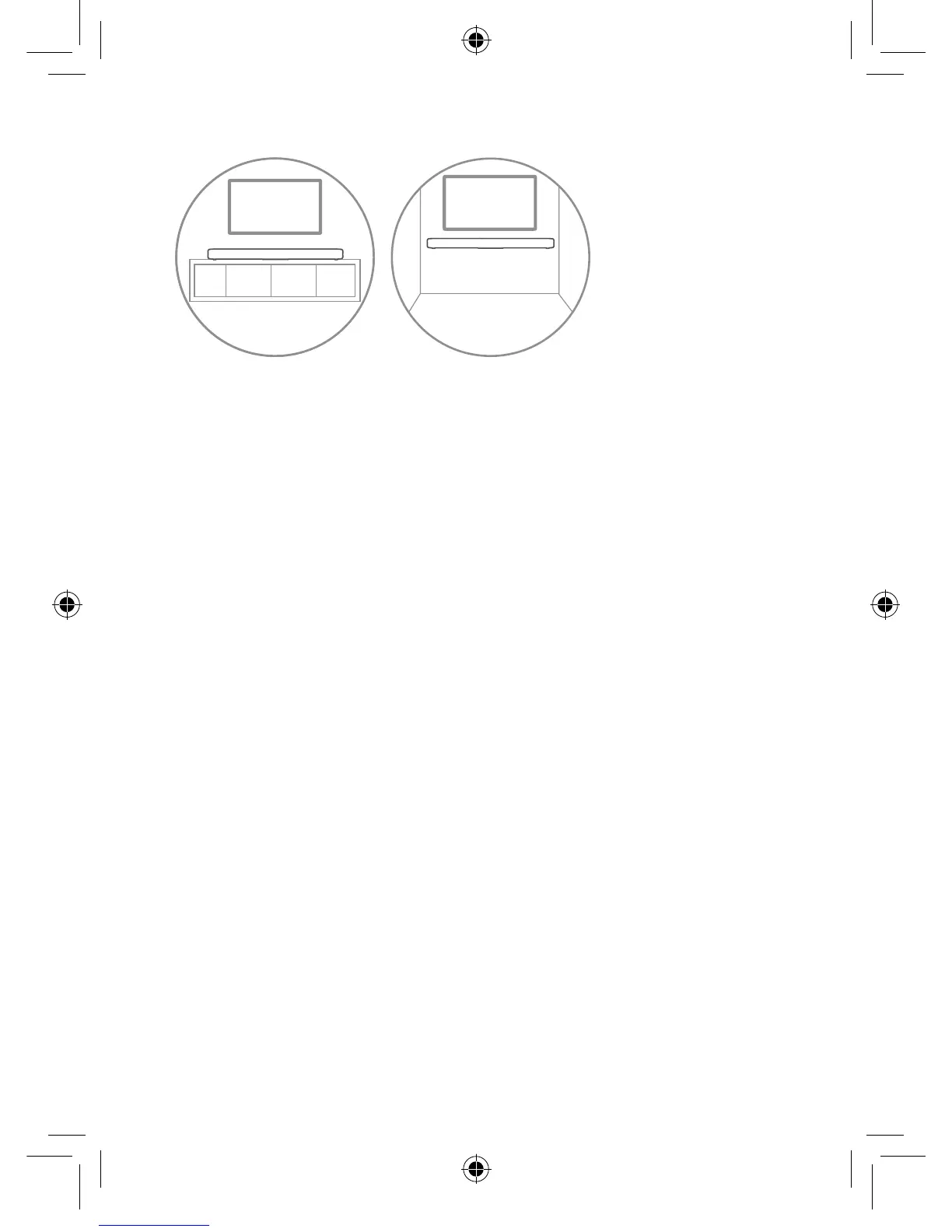

Place the supplied wall mount template on the wall.
Make sure the wall mount template is at least 2 inches
(5cm) below the center of the TV.
2
Use a level to make sure the Sound Bar is positioned
accurately.
3
Usethetapetostickthewallmounttemplatermlyon
the wall.
4
Mark on the wall using each marking on the template
through the mounting holes (Fig.1).
5
Take away the wall mount template.
6
Drill a screw hole at each marking on the wall.
7
Insert the supplied wall anchors into 2 screw holes on
the wall (Fig. 1).
8
Insert the supplied screws into the wall anchors. Leave
4mm between the screw heads and the wall (Fig. 2).
9
Fix and tighten the screws on the wall (Fig. 3).
10
Hang the Sound Bar main unit on the screws (Fig. 3).
