TCM FB15-7 - Page 76

5. BRAKE SYSTEM
- 64 -

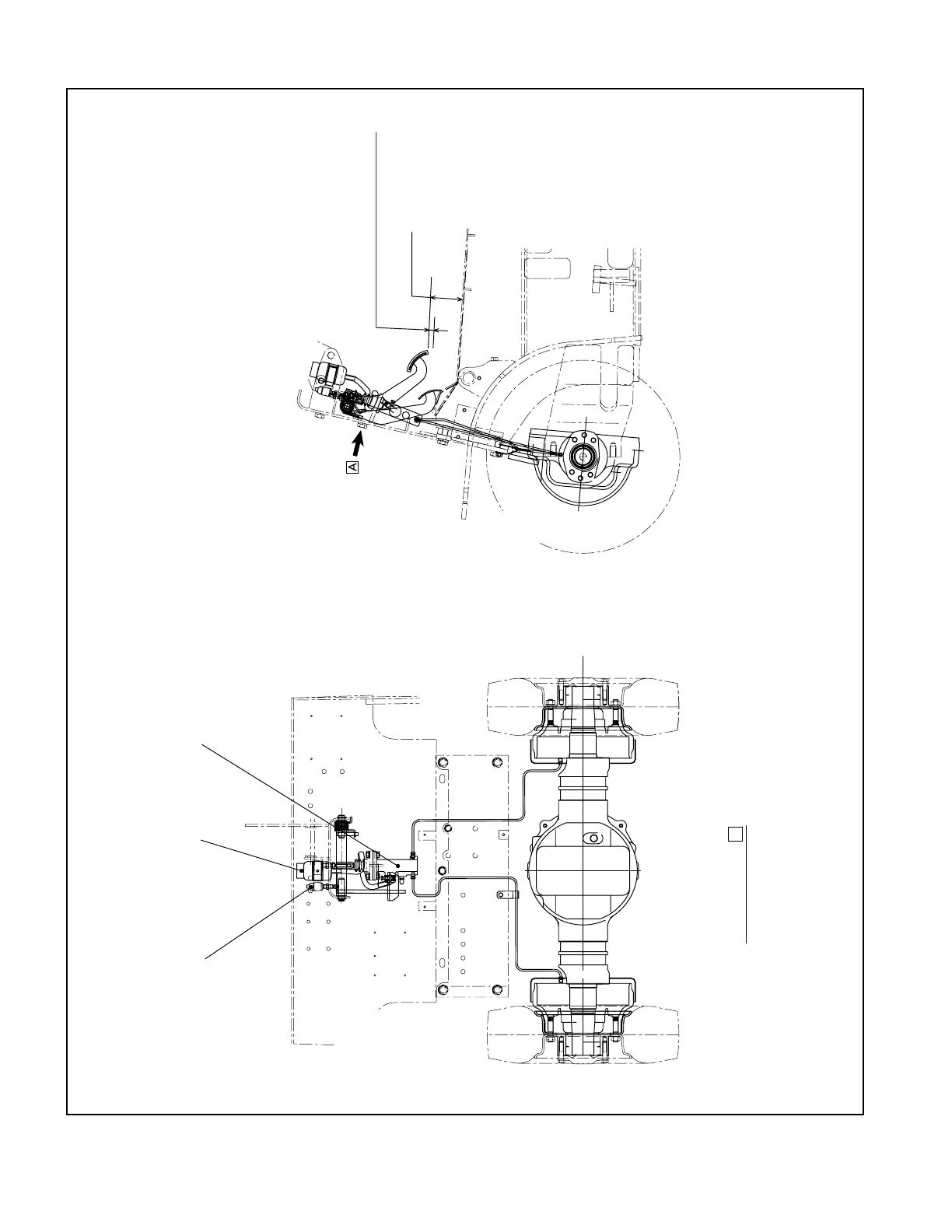

Fig. 5.2 Brake Pedal
BRAKE SWITCH
RESERVE TANK MASTER CYLINDER
BRAKE SWITCH OPERATION DISTANCE: 5 – 10 mm [1.97 – 3.94 in.]
Height: 90 mm [35.43 in.]
View looking from
A
