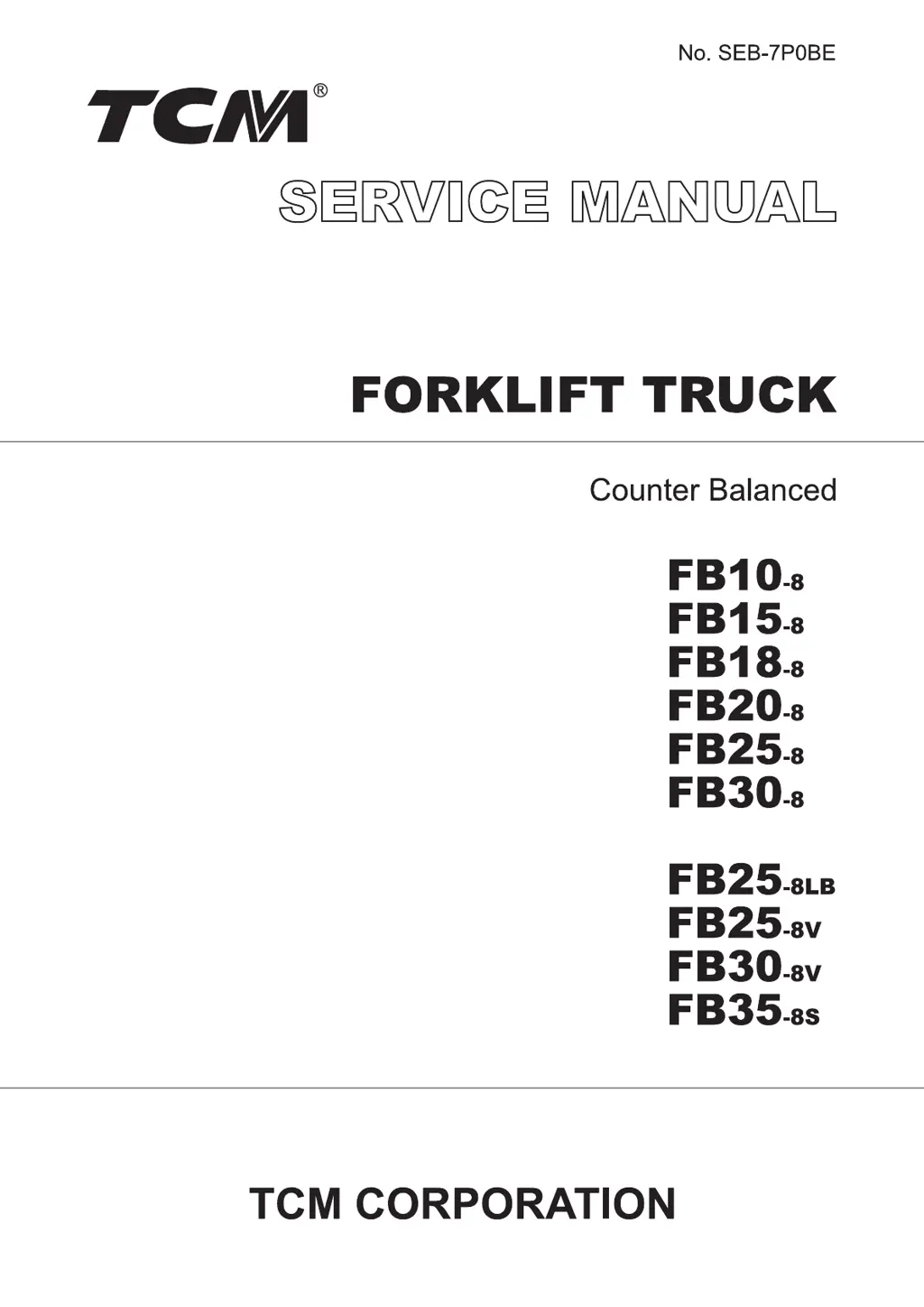

No. SEB‑7POBE
TCM
⑮
@~æ.
WD@
国間
A
間切
I&
[S
FORKLIFTTRUCK
Counter 8alanced
FB唱O‑S
FB唱5‑s
FB
唱8‑s
FB20‑s
FB25‑s
FB30‑s
FB25‑SLB
FB25‑sv
FB30‑sv
FB35‑ss
TCMCORPORATION

Table of Contents

Questions and Answers

  • T
    Theresa HumphreyAug 10, 2025
    How to fix poor braking force in TCM FB15-8?
    • M
      michaellinAug 10, 2025
      If you're experiencing poor braking force with your TCM Forklifts, several factors could be at play. It might be due to brake fluid leaks, which require repair. Other potential causes include maladjusted brake shoe clearance (check and adjust the adjuster), overheating brakes (check for dragging), poor contact between the brake drum and lining (adjust contact), foreign matter sticking to the lining (repair or replace), foreign matter mixed in brake fluid (check brake fluid), or maladjustment of the brake pedal (adjust).
  • S
    Samantha VasquezAug 18, 2025
    Why are the brakes on my TCM FB15-8 soft or spongy?
    • B
      Brandon VasquezAug 18, 2025
      If your TCM Forklifts exhibit a soft or spongy brake, it could stem from a few reasons. Start by checking for brake fluid leaks within the brake system and repair any leaks found. Also, inspect the brake shoe clearance and adjust the adjuster if it's maladjusted. Another possibility is air mixed in the brake system, in which case you should bleed the air. Finally, ensure the pedal is properly adjusted.
  • B
    Brandon KingAug 25, 2025
    What to do if TCM FB15-8 Forklifts have uneven braking?
    • R
      Randy MitchellAug 25, 2025
      Uneven braking in TCM Forklifts can arise from several issues. Check for foreign matter adhering to the lining, and repair or replace if necessary. Inspect and adjust the brake shoe clearance. A malfunctioning wheel cylinder might also be the culprit, requiring repair or replacement. Additionally, a defective shoe return spring should be replaced. Other potential causes include a deflected drum (repair or replace) or improper tire inflation pressure (adjust).
  • E
    Erika NelsonSep 2, 2025
    Why are the brakes on my TCM FB15-8 Forklifts noisy?
    • C
      Christine VillanuevaSep 2, 2025
      A noisy brake in TCM Forklifts could be due to several reasons. The lining surface might be hardened or have foreign matter sticking to it, requiring repair or replacement. The backing plate could be deformed, or its bolts might be loose, also needing repair or replacement. Shoes might be deformed or improperly installed, necessitating repair or replacement. Other causes include unevenly worn lining (replace) or a defective wheel bearing (replace).
  • Я
    ЯрославDec 5, 2025
    добрый день! погрузчик TCM FB15-8 перестал развивать макс скорость 16км/ч, сейчас развивает скорость не более 8км/ч. в чём может быть причина?
    • И
      ИванDec 26, 2025
      Ярослав, потенциометр педали может быть не исправен

Summary

Specifications

Cautions for Servicing the Truck

General Servicing Precautions

General safety advice before and during truck servicing, including parking and obstacle checks.

Specific Servicing Cautions

Specific warnings for measurements, repairs, electrical components, and tool usage.

Lubrication and Maintenance

Hydraulic Oil Level Check

Guide on checking hydraulic oil level using a dipstick and interpreting the readings.

Hydraulic System Maintenance Procedures

Procedures for pump disassembly, inspection, and reassembly, including cautions.

Battery and Charger System

Battery Care and Charging Procedures

Guidelines for battery care, preventing overdischarge, and correct charging methods.

Motors and Drive System

Drive Motor Maintenance and Inspection

Procedures for checking drive motors during operation and when stopped, including periodic checks.

Drive Unit and Axle Description

Describes the drive unit's construction and the drive axle's components and mounting.

Control System

Controller Assembly Overview

Describes the controller assembly, its units (inverters, EPS controller), and communication network.

Inverter Unit Functionality

Explains the inverter unit's role in converting DC to AC and controlling motors via sensors.

Accelerator Pedal Operation and Voltage

Details the accelerator pedal's function and the voltage readings from its potentiometers.

Brake System

Brake System Components

Overviews the brake pedal, master cylinder, and wheel brakes as part of the hydraulic system.

Master Cylinder Functionality

Explains the master cylinder's installation and operation to maintain hydraulic pressure and prevent issues.

Wheel Brake Mechanism

Describes the duo-servo wheel brake, its operation, and the parking brake mechanism.

Automatic Clearance Adjuster Operation

Details how the automatic clearance adjuster maintains consistent brake performance.

Parking Brake Lever Adjustment and Alarm

Covers parking brake lever adjustment, force settings, and the associated alarm system.

Brake System Maintenance and Troubleshooting

Procedures for brake disassembly, inspection, reassembly, pedal adjustment, and troubleshooting.

Steering System

Orbitrol Steering System Overview

Describes the components of the Orbitrol steering system: wheel, orbitrol, and power cylinder.

Orbitrol Unit Functionality

Explains the orbitrol's operation, including its control valve, metering device, and oil passages.

EPS Steering System Overview

Steering Gearbox and Actuator Details

Rear Axle and Wheel Bearing Adjustment

Actuator Maintenance Procedures

Hydraulic System

Hydraulic System Components Overview

Main Pump Details and Maintenance

Control Valve Operation and Adjustment

Lift Cylinder Functionality

Flow Regulator Valve Operation

Tilt Cylinder Operation and Components

Load Handling System

Load Handling System Overview

Mast Channel Components

Carriage and Roller Locations

Load Handling System Maintenance

Procedures for adjusting lift cylinder rod length, carriage height, and replacing rollers.

Roller Replacement Procedures

Shimming for Roller Clearance Adjustment

Electric System

Electric System Overview

Relay Unit Functionality

Lighting System Components and Operation

Light Switch Operation

Turn Signal Switch Operation
