TCM FB20-7 - Page 51

INS
ENRUNIENTS
ANY
ККУІМІ
ГІЛІ.
О

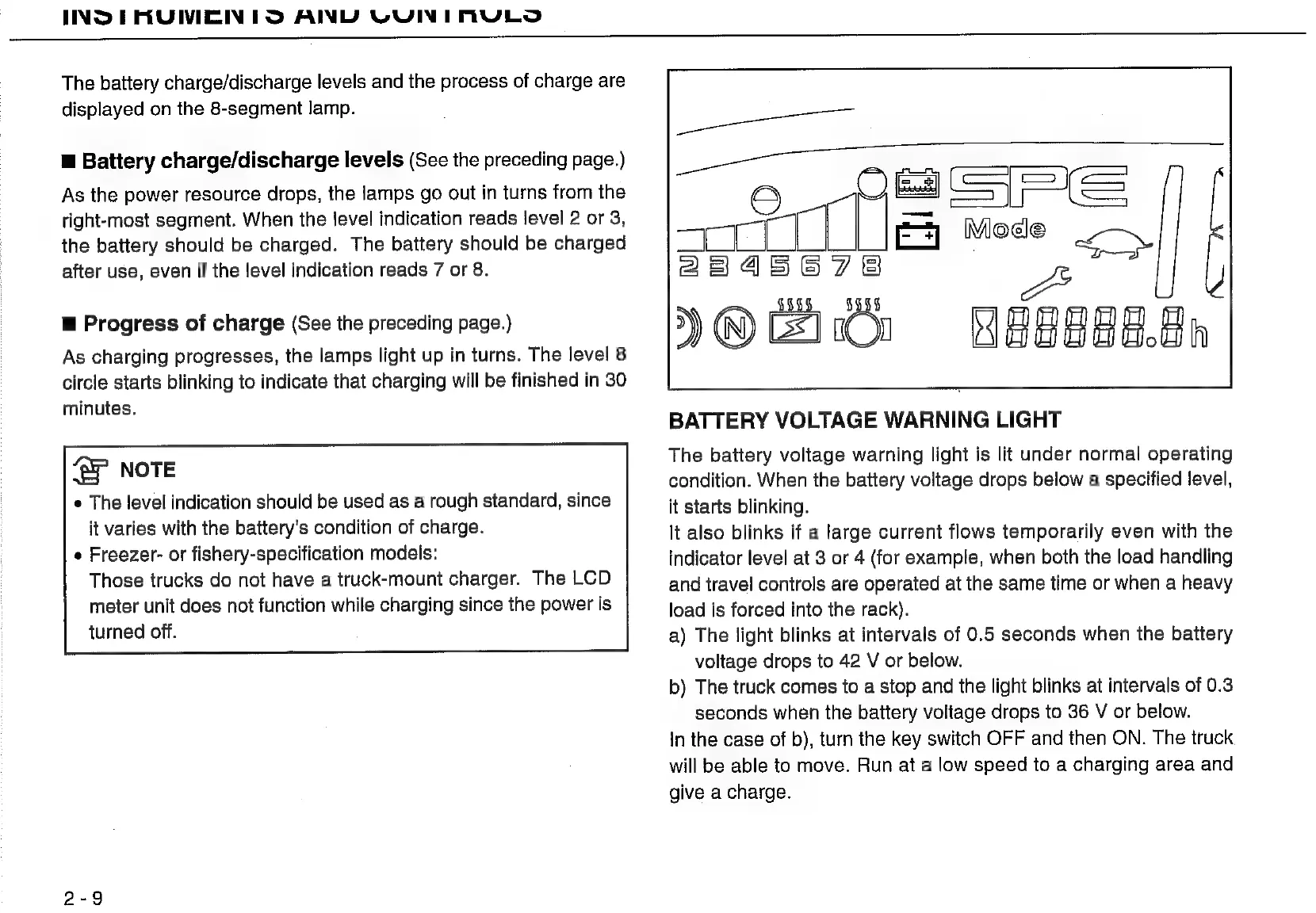

The
battery
charge/discharge
levels
and
the
process
of
charge
are
displayed
on
the
8-segment
lamp.
W
Battery
charge/discharge
levels
(See
the
preceding
page.)
As
the
power
resource
drops,
the
lamps
go
out
in
turns
from
the
right-most
segment.
When
the
level
indication
reads
level
2
or
3,
the
battery
should
be
charged.
The
battery
should
be charged
after
use,
even
if the
level
indication
reads
7
or
8.
W Progress of charge (See the preceding page.)
As
charging
progresses,
the
lamps
light
up
in
turns.
The
level
8
circle
starts
blinking
to
indicate
that
charging
will
be
finished
in
30
minutes.
^P NOTE
• The level indication should be used as a rough standard, since
it varies with the battery's condition of charge.
• Freezer- or fishery-specification models:
Those
trucks
do
not
have
a
truck-mount
charger.
The
LCD
meter
unit
does
not
function
while
charging
since
the
power
is
turned off.
nmm
2а тё Meds 27
2545678
14496: 9593
>) ГӨ!
ІШТЕ
BATTERY VOLTAGE WARNING LIGHT
The battery voltage warning light is lit under normal operating
condition. When the battery voltage drops below a specified level,
it starts blinking.
It also blinks if a large current flows temporarily even with the
indicator level at 3 or 4 (for example, when both the load handling
and travel controls are operated at the same time or when a heavy
load is forced into the rack).
a) The light blinks at intervals of 0.5 seconds when the battery
voltage drops to 42 V or below.
b) The truck comes to a stop and the light blinks at intervals of 0.3
seconds when the battery voltage drops to 36 V or below.
In the case of b), turn the key switch OFF and then ON. The truck
will be able to move. Run at a low speed to a charging area and
give a charge.
