1. BATTERY AND CHARGER
- 12 -
[Procedure for changing VTM settings] (for trucks manufactured on and after February 1, 2004)
①
Preparations
Park the truck on a level surface, turn the key switch off, and then disconnect the battery connectors.
Remove the right side cover of the truck and then remove the VTM unit cover.
Connect the battery connectors. (Make sure the key switch is off.)
Check that the 4-digit LED reading is “
☆
**.*” (
☆
: rotary switch setting).
Usually the “
☆
” shows“d”and “**.*”shows a battery voltage.
②
Set the rotary switch setting to “8” using a small Philips screwdriver.
(The 4-digit LED reads “8P06” (the 1st digit shows the rotary switch number, 2nd digit, the mode,
and the last two digits, the speed limit or operating level.
③
Every time the mode switch is pressed, the mode will change from “P”, “S” and to “ ” .
④
Set the mode switch to the mode you want
Set the level by pressing the H or L switches. The level will be increased by pressing the H switch
and decreased by pressing the L switch.
⑤
After changing the settings, turn on the key switch. The communication LED will blink for about 5
seconds.
⑥
After making the communication LED turns off, turn off the key switch.
⑦
Return the setting of the rotary switch to “d”.
⑧
Disconnect the battery connectors and reinstall the VTM unit cover.
Then, reinstall the side cover.

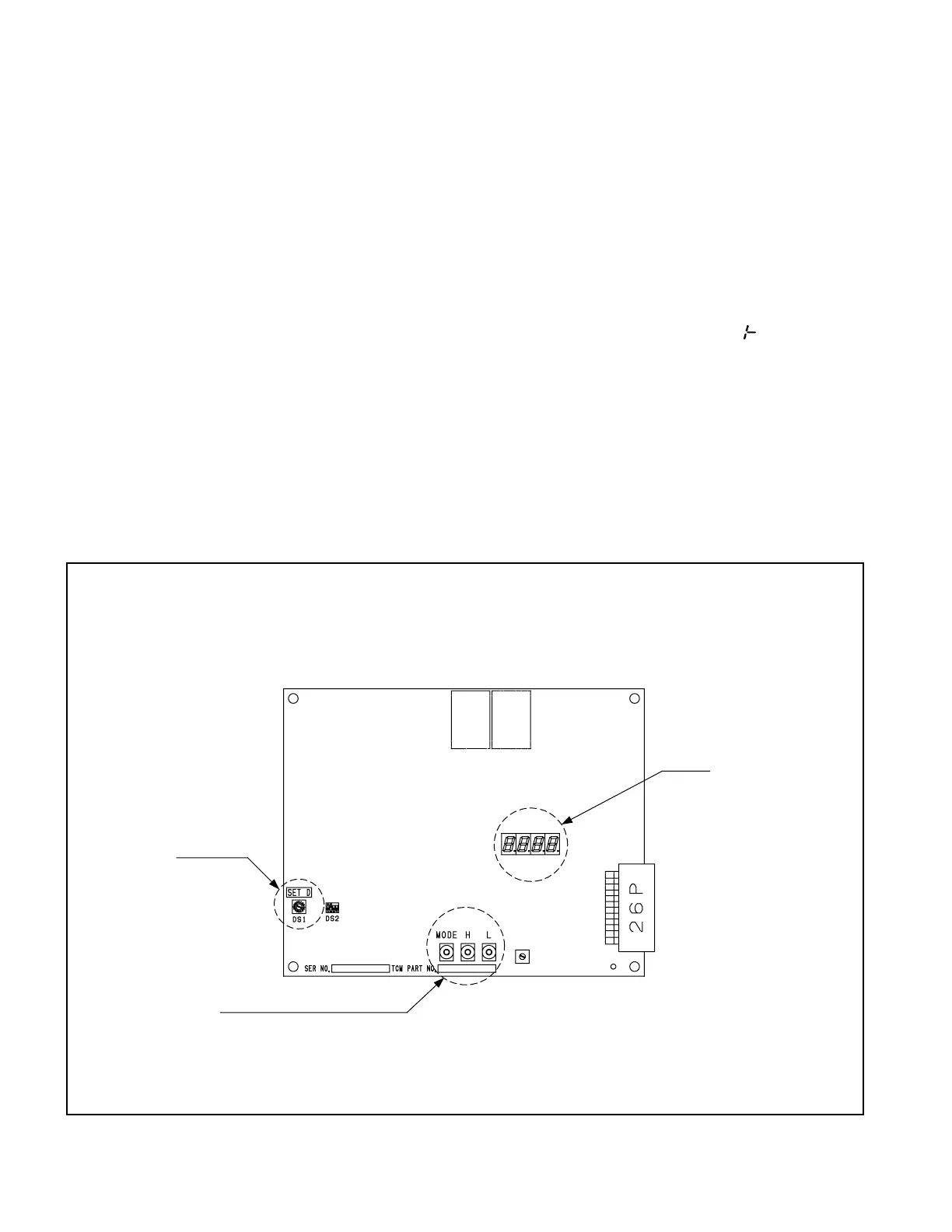

4-DIGIT
LED
SWITCHES (MODE, HIGH, LOW)
ROTARY
SWITCH
Fig. 1.11
VTM Adjustment (for trucks manufactured on and after February 1, 2004)
