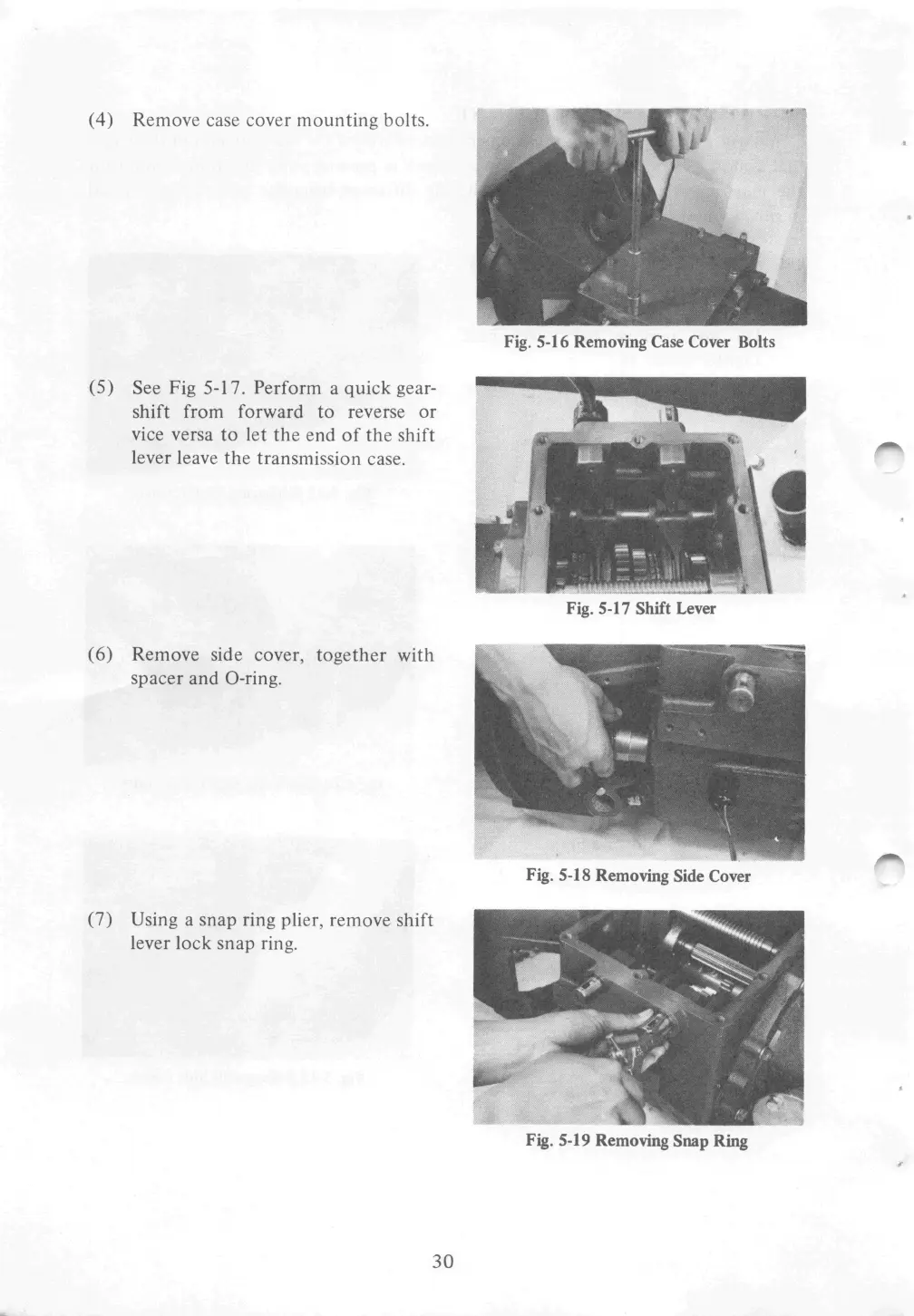

(4)

Remove

case

cover

mounting

bolts.

(5)

See Fig

5-17.

Perform

a

quick

gear-

shift

from

forward

to

reverse

or

vice

versa

to

let

the

end

of

the

shift

lever

leave

the

transmission

case.

(6)

Remove side cover, together

with

spacer

and

0-ring.

(7)

Using

a

snap

ring

plier,

remove

shift

lever

lock

snap

ring.

.

.

.

.

. .

.

Fig.

5-16

Removing

Case

Cover

Bolts

Fig.

5-18

Removing

Side

Cover

Fig.

5-17

Shift

Lever

I

A

r-

Fig.

5-19

Removing

Snap

Ring
