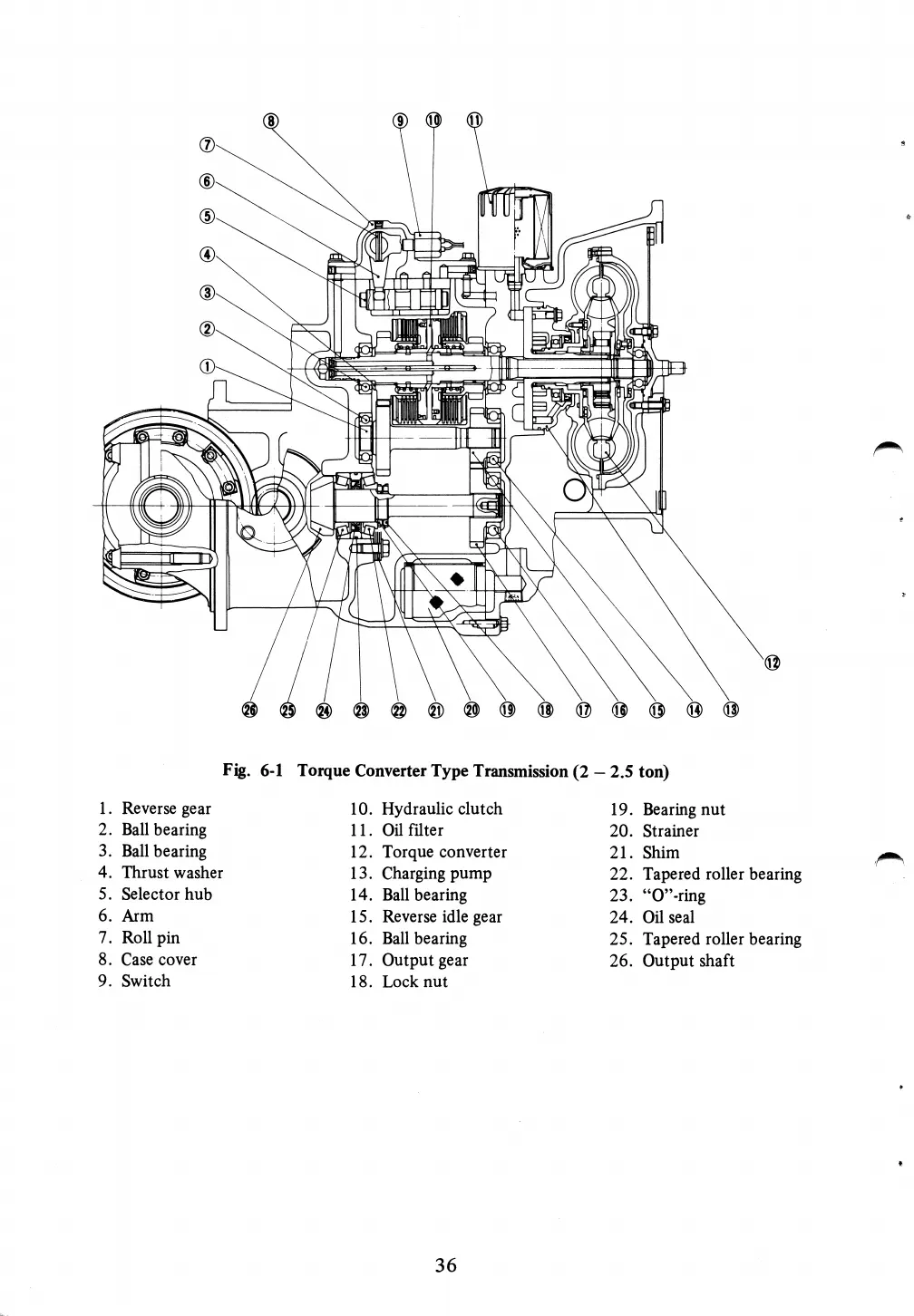

Fig. 6-1 Torque Converter Type Transmission (2
- 2.5 ton)
1. Reverse gear
2. Ball bearing
3. Ball bearing
4. Thrust washer
5. Selector hub
6. Arm
7. R011 pin
8. Case cover
9. Switch
10. Hydraulic clutch
11. Oil filter
12. Torque converter
13. Charging pump
14. Ball bearing
15. Reverse idle gear
16. Ball bearing
17. Output gear
18. Lock nut
22.
19. Bearing nut
20. Strainer
21. Shim
Tapered roller bearing
23. "O"-ring
24. Oil seal
25. Tapered roller bearing
26. Output shaft
*
