YOUR INDOOR STATION

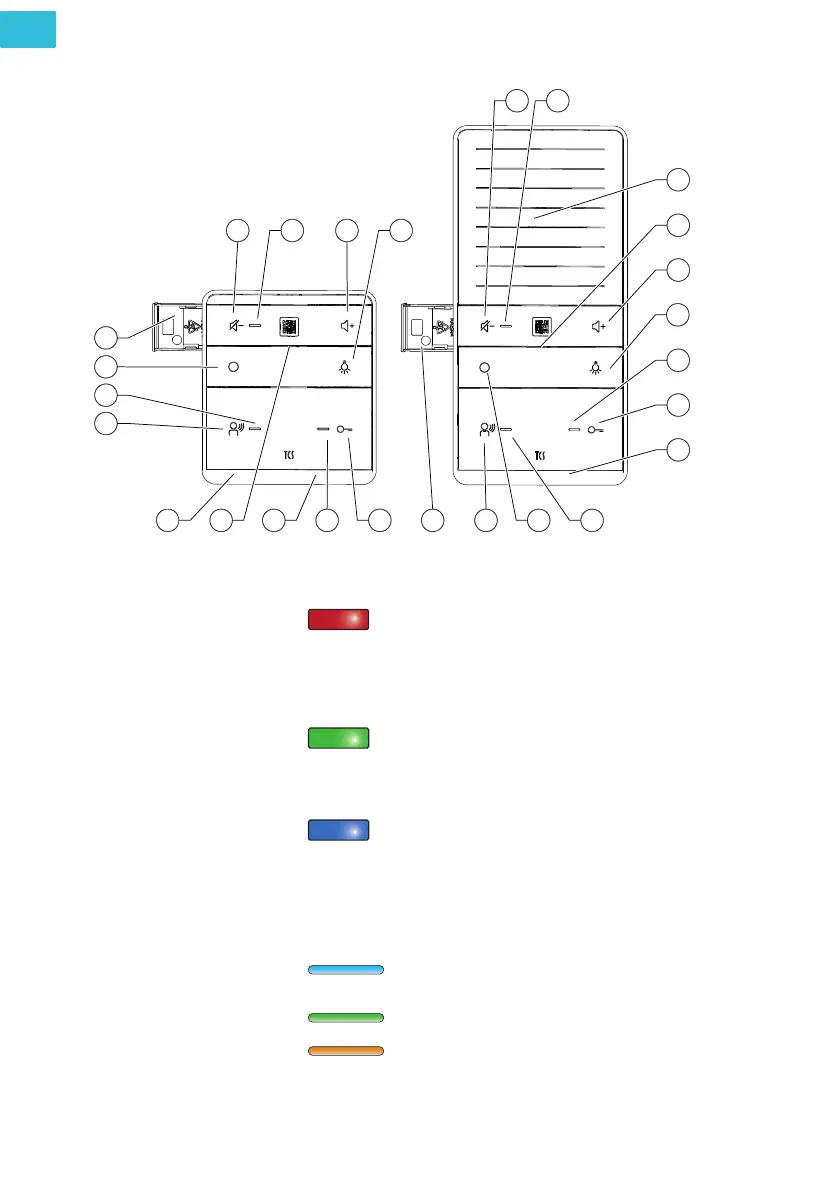

Geräteübersicht
1 Volume down button (call off)
2 LED indication (red) ring tone mute
3 Volume up button
4 Light switch button
5 Loudspeaker
6 Microphone
7 Indication for door release, blue LED
8 Door release button
9 Ambient illumination, LED blue
10 Call indication, LED green
11 Function key
12 Speech button
13 Smart Slot
LED-Display
LED red OFF – call off deactivated
ON – call off activated
Incoming calls are not signaled audibly.
Flashes – call diversion activated
Blinks – A message was saved to the answering machine.
Keying out – call diversion activated
LED green
OFF – device in standby
ON – call, speaking activated
Blinks 3x – speech channel is busy
Blinks – Answering machine: ready to record a greeting
Flashes – Answering machine function activated
LED blue
OFF – door opener in standby
ON – door release automatic is activated
ON 3s – door will be opened
All LED are on – ring tone selection is activated
All LED are flashing – device or TCS:BUS error
Ambient
illumination
ON blue – The ambient illumination can be deactivated and activated.
The ambient illumination is activated in the factory setting.
blue
Blinks – The ambient illumination signals an incoming door or inter-
nal call. The function can only be deactivated or activated by
an electrician.
green
ON 3s – The smart stick has been detected by the indoor station.
orange
Blinks – The Smart Stick is in configuration mode.
5 9
9
13
13
12
6
10
7 8
11
12 10
41 2
7
8
11
3
6
4
1 2
3
5
