Figure 8. Inspect and Lubricate O-Ring
WARNING: Replace damaged O-rings im-
mediately.
A damaged O-ring will cause
leakage of gases or fluids that
can lead to serious injury and
property damage.
D. Always clean the interior surfaces of the
clamp ring and apply a thin film of lubricant.
When opening, check lubrication of all hinge
points on the clamp ring assembly. These
include the following:
• One clamp ring pivot pin (Figure 9);
• Three clamp ring link pins (Figures 9 and
10); these pins should be lubricated at all
points along the pin, not just the front
(Figure 11).
The door-hinge bearings are oil impregnated,
sintered bronze and do not require lubrication but
should be checked at regular intervals for excessive
wear.

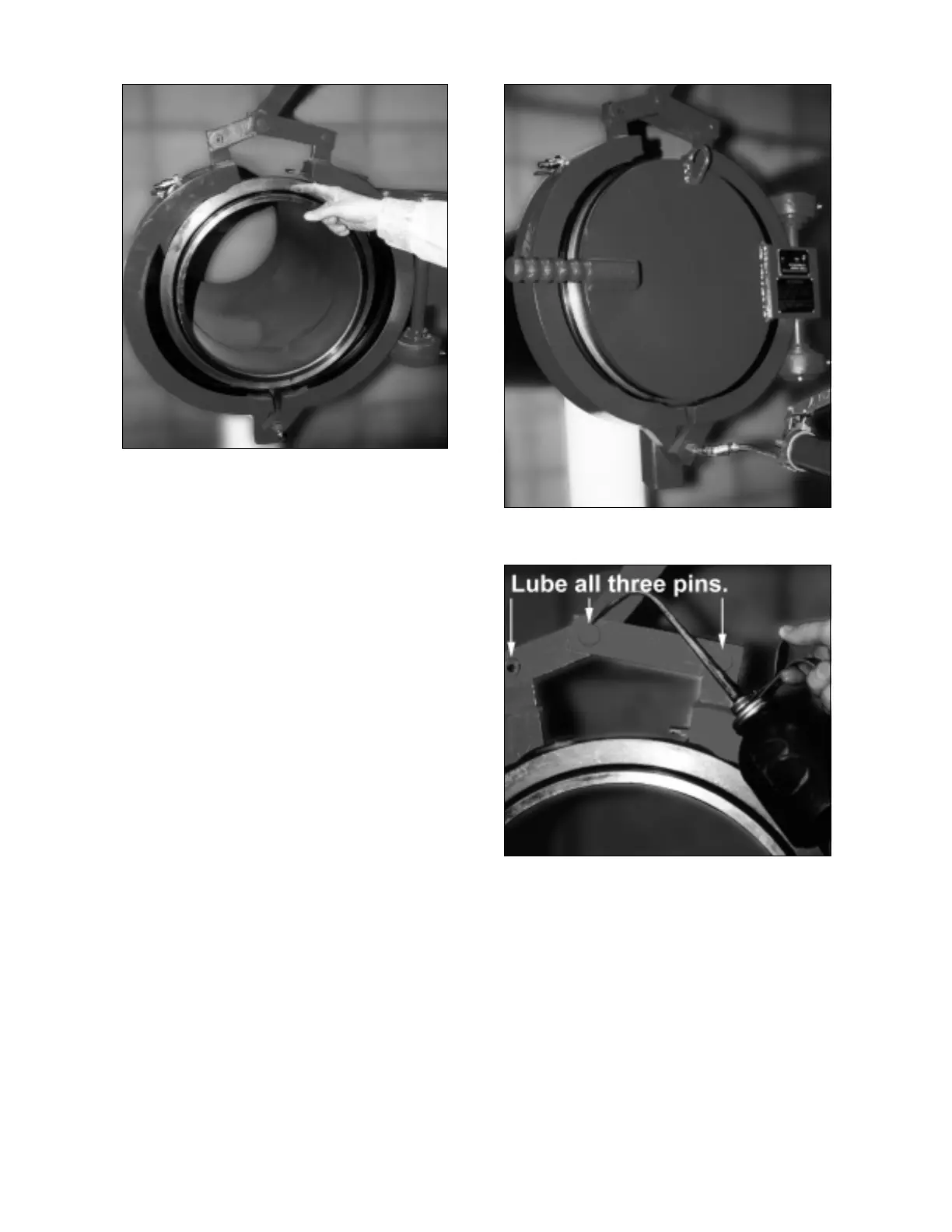

Figure 9. Grease the Clamp Ring Pivot Pin
Figure 10. Clamp Ring Hinge Points
