PB

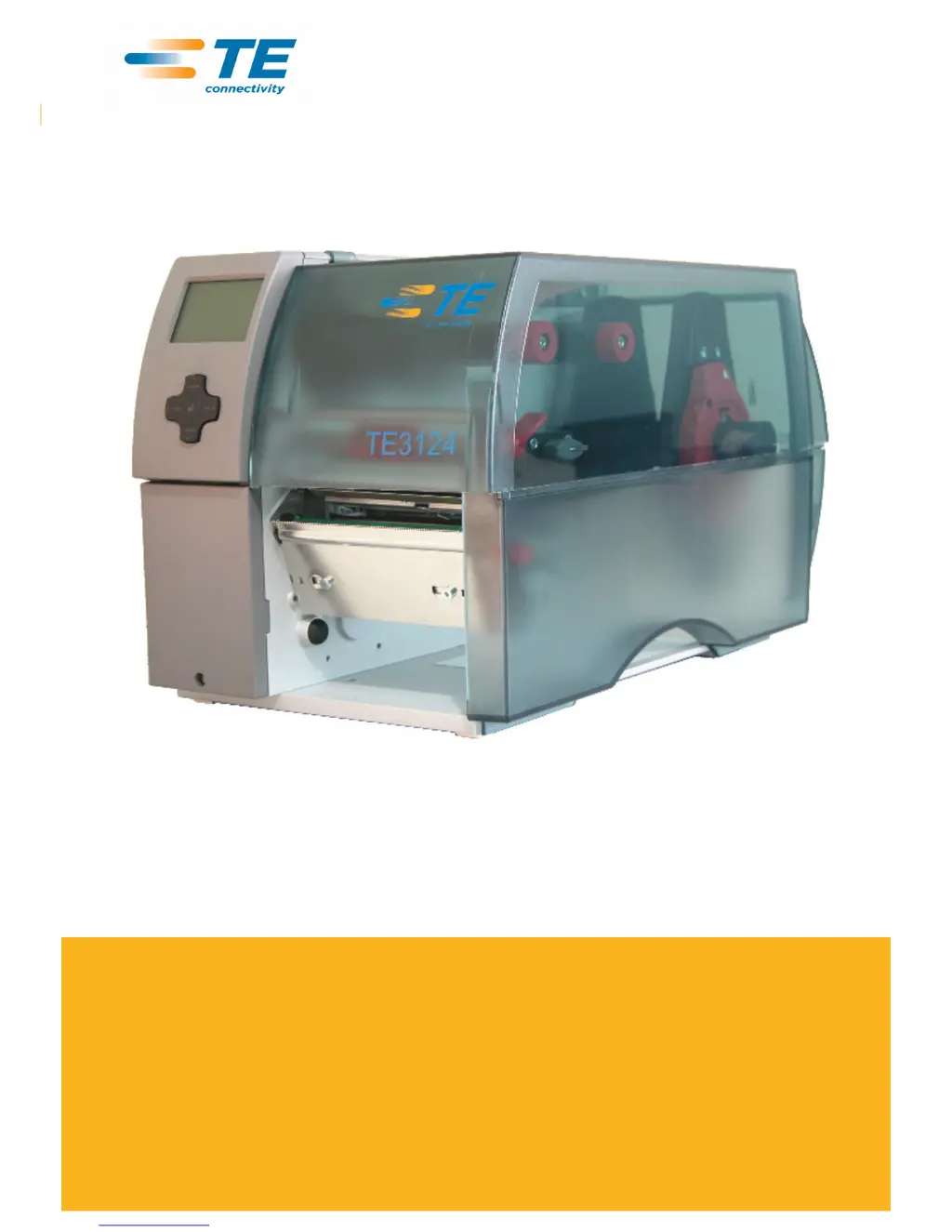

Service Manual
TE3124/TE3112.
Thermal Transfer Printer

Table of Contents

Questions and Answers

  • K
    Katherine MartinezAug 19, 2025
    What to do if a peripheral device is not functioning on TE TE3112 Printer?
    • M
      Michelle EstesAug 20, 2025
      If a peripheral device isn't working with your TE Printer, try these steps: * First, check if the peripheral device is activated via programming. * Next, inspect the USB cable of the peripheral device for damage and replace it if needed. * Test the peripheral device with another device to ensure it functions correctly. * If the issue persists, replacing the PCB CPU might be necessary.
  • Y
    yjenkinsAug 21, 2025
    How to troubleshoot medium not being transported in TE TE3112 Printer?
    • J
      Jeremy HinesAug 22, 2025
      If the medium is not being transported in your TE Printer, you should: * Check the electrical connections between the PCB CPU and the motor. * Examine the drive mechanism for any obstructions or damage. * If the problem continues, consider replacing the PCB CPU or the motor.
  • J
    James HebertAug 23, 2025
    Why are the display and navigator pad not functioning on my TE TE3112?
    • K
      Kelly SheltonAug 25, 2025
      If the display and navigator pad on your TE Printer are not functioning, here's what to check: * If LED1 is not illuminating, the power supply unit or CPU PCB could be defective; replace the PCB CPU or power supply unit. * If LED1 flashes, a firmware update was unsuccessful; reload the firmware. * Check the cable connection between the PCB CPU and the control panel. * If there's no voltage at either measurement point, the power supply unit may be defective, so replace it. * If there's no voltage at one measurement point, the PCB CPU may be defective, so replace it. * If these steps don't resolve the issue, consider replacing the LCD Display or the PCB Navi Button assembly.
  • B
    Bradley RodgersAug 26, 2025
    What to do if TE TE3112 Printer transports medium but there is no print image?
    • J
      Jeffrey SnyderAug 26, 2025
      If your TE Printer is transporting the medium but not producing a print image: * Check the plug connections at the printhead. * Examine the printhead cable for any damage and replace it if necessary. * If those steps don't solve the issue, try replacing the printhead or the PCB CPU.
  • S
    Sara JonesAug 28, 2025
    Why is the navigator pad not functioning on my TE TE3112, but the display is?
    • S
      Shane JohnsonAug 28, 2025
      If the navigator pad is not working, but the display functions on your TE Printer: * Check the cable connection between the LCD Display and the PCB Navi Button assembly, replacing it if necessary. * If that doesn't work, try replacing the PCB Navi Button assembly or the LCD Display.
  • T
    Tracy DouglasAug 30, 2025
    What to do if the display is not functioning, but the navigator pad is on TE TE3112?
    • S
      Sara WilliamsAug 30, 2025
      If the display on your TE Printer is not functioning, but the navigator pad is working, replace the LCD Display.
  • T
    Terrence AguirreAug 31, 2025
    How to fix communication issues via an interface on TE TE3112 Printer?
    • R
      Raymond WhiteAug 31, 2025
      To troubleshoot communication issues via an interface on your TE Printer: * First, ensure that the interface configurations of both the printer and the computer are correctly matched. * If you're using an Ethernet connection, verify the IP address and subnet mask are valid. * Inspect the interface cable for any damage, and replace it if necessary. * If all interface functionality is lost, the PCB CPU may need replacement.
  • J
    jacob58Sep 2, 2025
    What causes low motor voltage on TE TE3112?
    • G
      Guy WashingtonSep 3, 2025
      If the motor voltage is too low on your TE Printer: * First, check the motor voltage at the measurement point V mot. * If the voltage is too low, replace the power supply unit. * If the voltage is correct, replace the PCB CPU.
  • S
    Samuel CookSep 4, 2025
    What does it mean when 24 V is too low on TE Printer?
    • S
      Seth FranklinSep 4, 2025
      If the 24 V is too low on your TE Printer: * Check the voltage at the measurement point +24V. * If the voltage is too low, replace the power supply unit. * If the voltage is correct, replace the PCB CPU.
  • L
    Lisa BrewerSep 6, 2025
    What to do if 24 V at peripheral connection is too low on TE TE3112?
    • J
      John StewartSep 7, 2025
      If the 24 V at the peripheral connection is too low on your TE Printer: * Disconnect the peripheral device. * If the fault still exists, replace the PCB CPU. * If the fault is remedied, repair or replace the peripheral device.

Summary

Important Information

General Safety Instructions

General safety rules for device operation and maintenance, including work area cleanliness and safety precautions.

Protective Devices

Importance of protective devices, risks of missing or defective parts, and when to wear protective goggles.

Handling Electricity

Guidelines for trained electricians and precautions for electrical work on the device.

Procedure in Case of Accidents

Steps to follow in case of an accident, emphasizing calmness and seeking assistance.

Cleaning

Cleaning by the Operator

Outlines the cleaning tasks that can be performed by the operator, referencing a specific document.

Cleaning the Label Sensor

Detailed instructions for removing, cleaning, and reinstalling the label sensor.

Replacing Assembly Units

Tools for Replacement

Lists essential special and standard tools required for various assembly and replacement tasks.

Removing and Installing the Plastic Cover

Step-by-step guide on how to safely remove and reattach the printer's plastic cover.

Replacing the Printhead

Procedures for replacing the printhead, including warnings about static discharge and handling.

Replacing the Slipping Clutches

Instructions for changing slipping clutches on ribbon rewinders and supply hubs.

Replacing the Label Sensor

Notice regarding label sensor contamination and the need for replacement.

Replacing Standard Label Sensor

Detailed steps for removing and installing a standard label sensor.

Replacing Label Sensor

Instructions for removing and installing the label sensor assembly.

Replacing the PCB CPU

Step-by-step guide for removing and installing the Printed Circuit Board Central Processing Unit.

Replacing the Power Supply Unit

Detailed instructions for removing and installing the power supply unit.

Adjustments

Measuring and Adjusting Winding Torques

Explains the necessity and methods for measuring and adjusting winding torques on rewinders.

Measuring Winding Torques

Details the process for measuring winding torques for ribbon take-up and supply hubs.

Measuring Winding Torques for Internal Rewinder

How to measure winding torques for the internal rewinder using a cord and spring scale.

Adjusting Winding Torques

Procedure for adjusting winding torques on slipping clutches using a knurled ring.

Adjusting the Printing Mechanism

Guidelines on when and how to adjust the printing mechanism for optimal print quality.

Preparing the Printer for Adjustment

Steps to prepare the printer, including loading media and setting parameters before adjustment.

Adjusting the Printhead Position

How to align the printhead for optimal density and parallelism of print lines.

Adjusting the Printhead Pressure

Method for adjusting printhead pressure to improve image density and ribbon feed.

Adjusting the Transfer Ribbon Feed Path

Steps to adjust the ribbon feed path and deflection to prevent wrinkles and ensure proper printing.

Final Test

Performing a final test print to verify adjustments and print quality.

Adjusting Belt Tension at the Main Drive Motor

Instructions for adjusting the tension of the toothed belt on the main drive motor.

Adjusting the Head Switch

How to adjust the head switch to resolve 'Head open' error messages.

Troubleshooting and Error Correction

Failure of Device Functions

Provides a table of functional errors and their corresponding possible remedies.

Hardware Faults

Lists common hardware faults, their causes, and recommended recovery actions.

Block Diagram

Layout Diagram PCB CPU

TE TE3112 Specifications

General IconGeneral
Resolution203 dpi
Memory8 MB DRAM, 4 MB Flash
Print TechnologyThermal Transfer
Max. Print Speed127 mm (5”)/second
Max. Print Width108 mm (4.25”)
InterfaceUSB
Print Speed127 mm (5”)/second
Maximum Print Width108 mm (4.25”)
ConnectivityUSB
Supported Barcode TypesCode 39, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, Interleaved 2 of 5, Codabar, POSTNET, PDF417, Data Matrix, QR Code
Power Supply100-240 VAC, 50-60 Hz
