9. VOLTAGE AND FREQUENCY SETTING
a. VOLTAGE SELECTOR SETTING PROCEDURE
(FOR GENERAL EXPORT MODELS)
First make sure the AC power cord is disconnected from
the AC outlet or power source.
1.
Remove the top cover of the deck by removing 2
screws from each side of the deck and lifting off the
cover,
Locate the voltage selector (shown in the Figure) at the
right side of the power transformer.
Loosen the 2 screws in the shorting bar and move the
bar so that it shorts across the terminals marked with
the desired AC voltage (100, 117, 220, or 240).
After the bar is set to the desired position, tighten the
screws.
Replace the top cover of the deck.
NOTE: The voltage selection setting can be visually
checked without removing the top cover by look-
ing through the cut out slits in the bottom cover
of the deck.
b. AC POWER LINE FREQUENCY ADAPTATION
Since the A-300 employs a DC Servo Motor, 50 Hz or 60
Hz operation is permitted without power line frequency
adaptation.

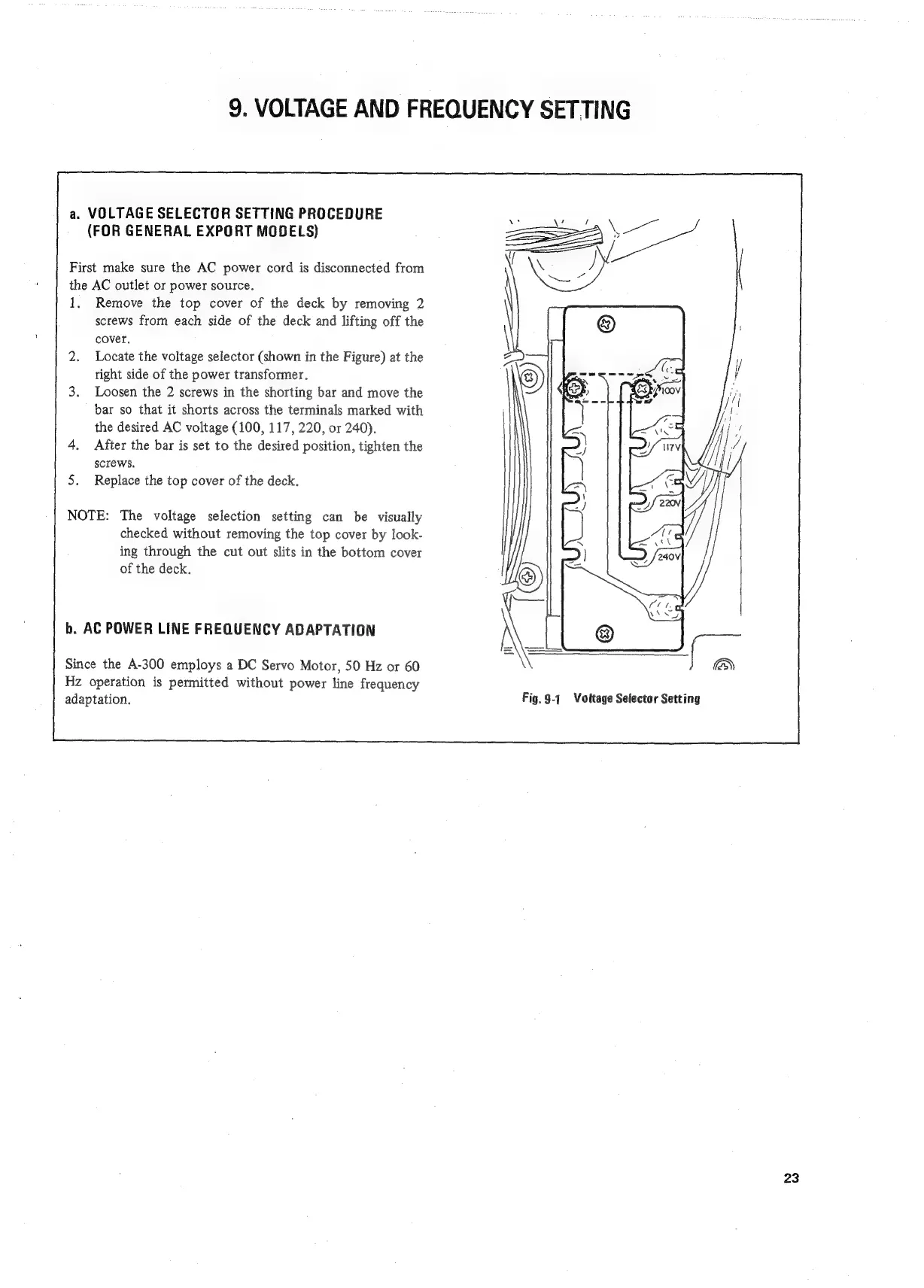

Fig. 9-1 Voltage Selector Setting
