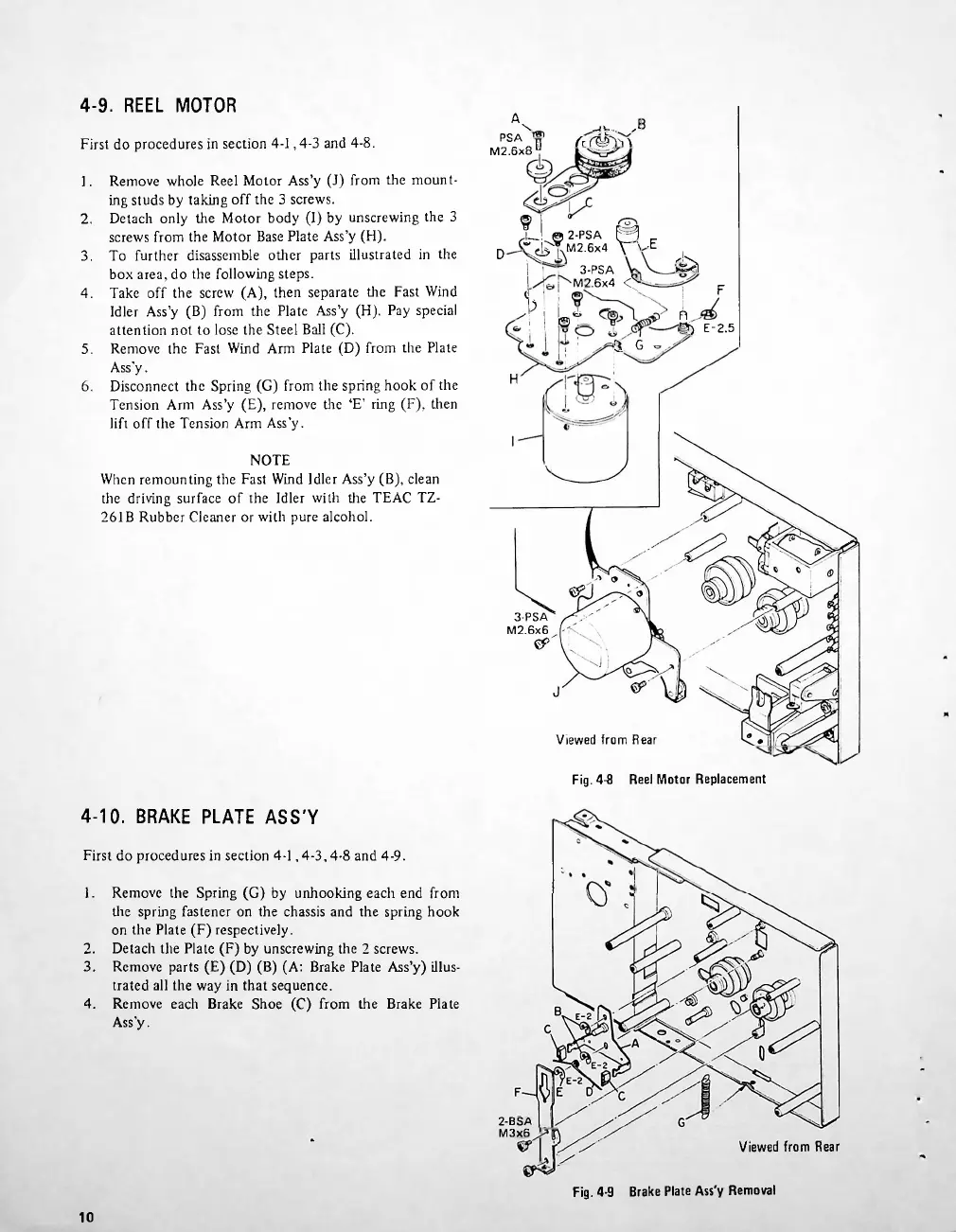

4-9. REEL MOTOR
First do procedures in section 4-1,4-3 and 4-8.
1.
2.
-E
D
3.
4.
5.
H
6.
Viewed from Rear
Reel Motor Replacement
Fig. 4-8
4-10. BRAKE PLATE ASS ’ Y
First do procedures in section 4-1,4-3,4-8 and 4-9.
1.
4.
Viewed from Rear
Fig. 4-9 Brake Plate Ass'y Removal
10
Remove the Spring (G) by unhooking each end from
the spring fastener on the chassis and the spring hook
on the Plate (F) respectively.
Detach the Plate (F) by unscrewing the 2 screws.
Remove parts (E) (D) (B) (A: Brake Plate Ass ’ y) illus 
trated all the way in that sequence.
Remove each Brake Shoe (C) from the Brake Plate
Ass ’ y .
2.
3.
NOTE
When remounting the Fast Wind Idler Ass ’ y (B), clean
the driving surface of the Idler with the TEAC TZ-
261 B Rubber Cleaner or with pure alcohol.
