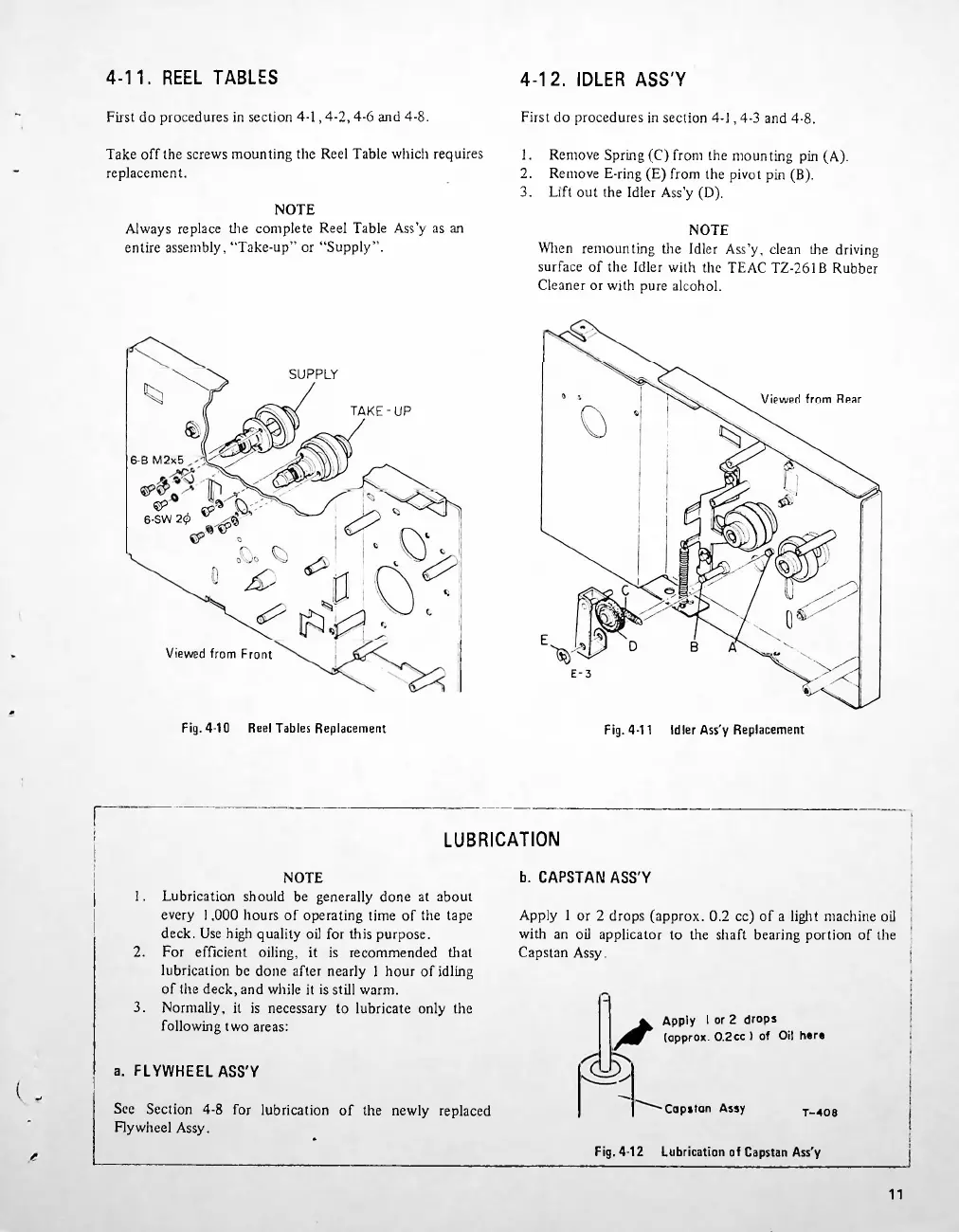

4-11. REEL TABLES
4-12. IDLER ASS'Y
First do procedures in section 4-1,4-2, 4-6 and 4-8.
First do procedures in section 4-1,4-3 and 4-8.
SUPPLY
Viewed from Rear
TAKE-UP
&
Viewed from Front
Fig. 4-10 Reel Tables Replacement
Fig. 4-11 Idler Ass'y Replacement
LUBRICATION
b. CAPSTAN ASS'Y
1.
2.
Capstan Assy.
3.
a. FLYWHEEL ASS'Y
Cops ton Assy
T-40B
Fig. 4-12
Lubrication of Capstan Ass'y
11
r
i
Take off the screws mounting the Reel Table which requires
replacement.
1.
2.
3.
Remove Spring (C) from the mounting pin (A).
Remove E-ring (E) from the pivot pin (B).
Lift out the Idler Ass ’ y (D).
Apply I or 2 drops
(approx. O.2cc ) of Oil here
NOTE
Always replace tire complete Reel Table Ass ’ y as an
entire assembly, “ Take-up ” or “ Supply ” .
NOTE
Lubrication should be generally done at about
every 1,000 hours of operating time of the tape
deck. Use high quality oil for this purpose.
For efficient oiling, it is recommended that
lubrication be done after nearly 1 hour of idling
of the deck, and while it is still warm.
Normally, it is necessary to lubricate only the
following two areas:
NOTE
When remounting tire Idler Ass ’ y, clean the driving
surface of the Idler with the TEAC TZ-261B Rubber
Cleaner or with pure alcohol.
6-B M2x5
S ’
6-SW 20
See Section 4-8 for lubrication of the newly replaced
Flywheel Assy.
Apply 1 or 2 drops (approx. 0.2 cc) of a light machine oil
with an oil applicator to the shaft bearing portion of the
