Teac A-7300 - Page 23

Ww
.
ON OAOAAWHN =

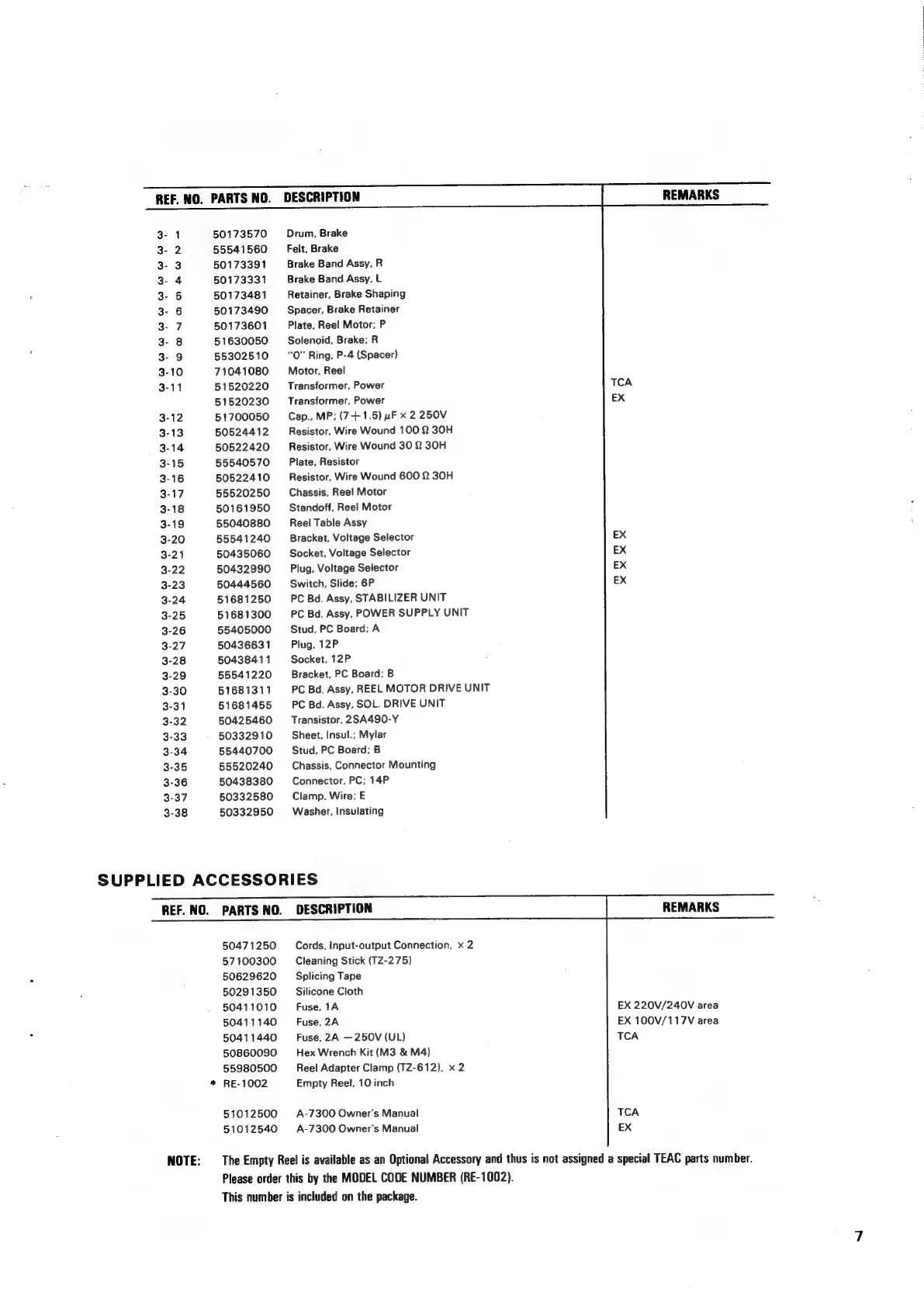

REF. NO. PARTS NO.
50173570
55541560
50173391
50173331
50173481
50173490
50173601
51630050
55302510
71041080
51520220
51520230
51700050
50524412
50522420
55540570
50522410
55520250
50161950
55040880
55541240
50435060
50432990
50444560
51681250
51681300
55405000
50436631
50438411
55541220
51681311
51681455
50425460
50332910
55440700
55520240
50438380
50332580
50332950
DESCRIPTION
Drum, Brake
Felt, Brake
Brake Band Assy, R
Brake Band Assy, L
Retainer, Brake Shaping
Spacer, Brake Retainer
Plate, Reel Motor; P
Solenoid, Brake: R
“O" Ring, P-4 (Spacer)
Motor, Reel
Transformer, Power
Transformer, Power
Cap., MP; (7-+1.5) uF x 2 250V
Resistor, Wire Wound 100 2 30H
Resistor, Wire Wound 30 2 30H
Plate, Resistor
Resistor, Wire Wound 600 2 30H
Chassis, Reel Motor
Standoff, Reel Motor
Reel Table Assy
Bracket, Voltage Selector
Socket, Voltage Selector
Plug, Voltage Selector
Switch, Slide: 6P
PC Bd. Assy, STABILIZER UNIT
PC Bd. Assy, POWER SUPPLY UNIT
Stud, PC Board; A
Plug, 12P
Socket, 12P
Bracket, PC Board; B
PC Bd. Assy, REEL MOTOR DRIVE UNIT
PC Bd. Assy, SOL. DRIVE UNIT
Transistor, 2SA490-Y
Sheet, Insul.; Mylar
Stud, PC Board; B
Chassis, Connector Mounting
Connector, PC; 14P
Clamp, Wire; E
Washer, Insulating
SUPPLIED ACCESSORIES
NOTE:
*
REF.NO. PARTS NO.
50471250
57100300
50629620
50291350
50411010
50411140
50411440
50860090
55980500
RE-1002
51012500
51012540
DESCRIPTION
Cords, Input-output Connection, x 2
Cleaning Stick (TZ-275)
Splicing Tape
Silicone Cloth
Fuse, 1A
Fuse, 2A
Fuse, 2A —250V (UL)
Hex Wrench Kit (M3 & M4)
Reel Adapter Clamp (TZ-612), x 2
Empty Reel, 10 inch
A-7300 Owner's Manual
A-7300 Owner's Manual
REMARKS
TCA
EX
EX
EX
EX
EX
REMARKS
EX 220V/240V area
EX 100V/117V area
TCA
TCA
EX
The Empty Reel is available as an Optional Accessory and thus is not assigned a special TEAC parts number.
Please order this by the MODEL CODE NUMBER (RE-1002).
This number is included on the package.
