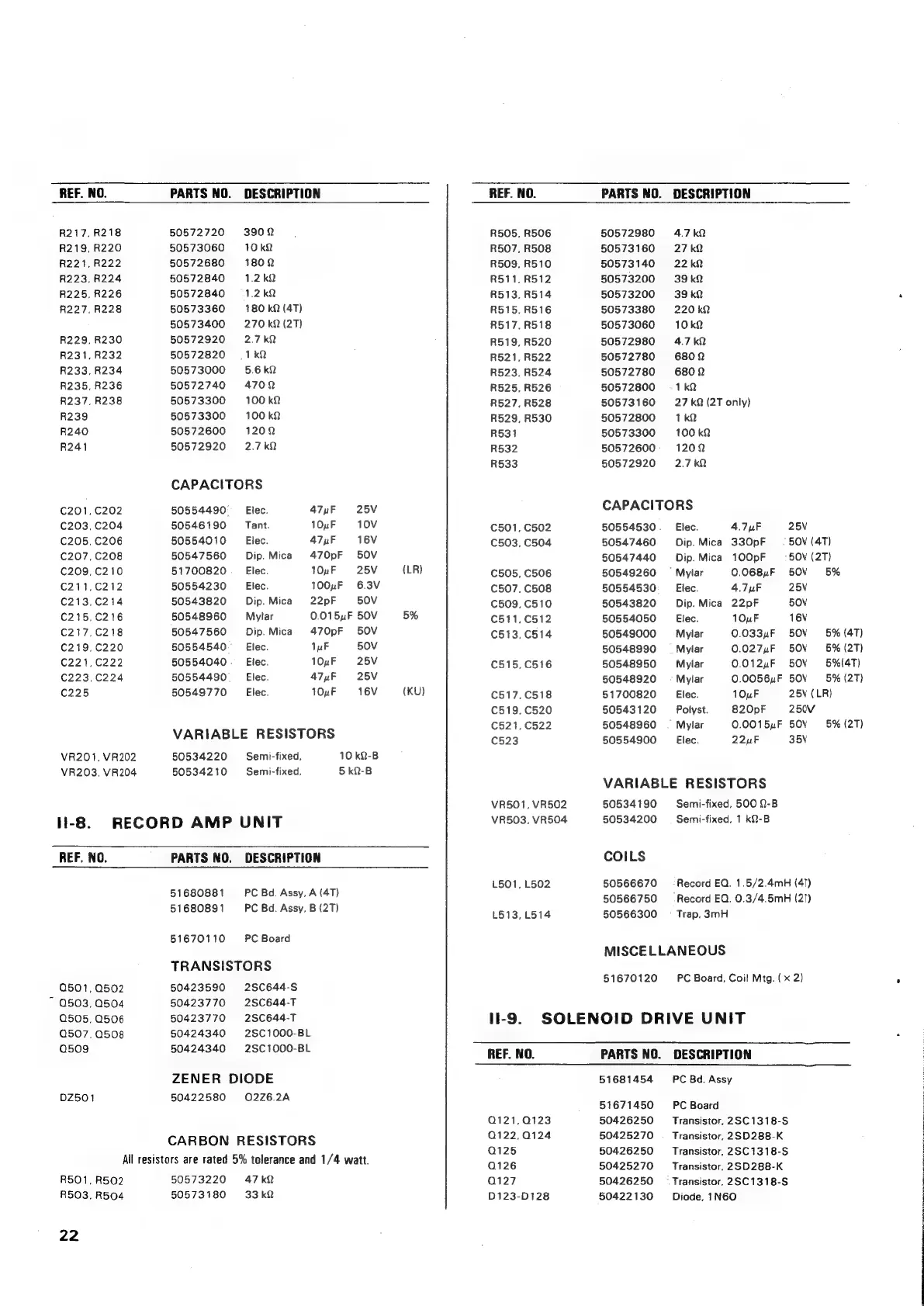

Teac A-7300 - RECORD AMP UNIT PARTS LIST; SOLENOID DRIVE UNIT PARTS LIST

REF. NO. PARTS NO. DESCRIPTION
R217, R218 50572720 3902
R219, R220 50573060 10 kQ
R221, R222 50572680 1802
R223, R224 50572840) 3=1.2k
R225, R226 50572840 =: 1.2 kQ
R227, R228 50573360 180k (4T)
50573400 270 k2(2T)
R229, R230 50572920 8 2.7kQ
R231, R232 50572820 = 1kQ
R233, R234 50573000 56k
R235, R236 50572740 4702
R237, R238 50573300 100k2
R239 50573300 100k2
R240 50572600 1202
R241 50572920 2.7 kQ
CAPACITORS
C201, C202 50554490 ___ Elec. 47uF 25V
C203, C204 50546190 =‘ Tant. 10uF 10V
C205, C206 50554010 Elec. 47 uF 16V
C207, C208 50547560 Dip.Mica 470pF SOV
C209, C210 51700820 _ Elec. 10uF 25V (LR)
€211,C212 50554230 Elec. 100uF 6.3V
€213,C214 50543820 Dip.Mica 22pF 50V
C215,C216 50548960 Mylar 0.015uF 50V 5%
C217,C218 50547560 Dip.Mica 470pF 50V
C219, C220 50554540 _~ Elec. 1pF 50V
C221,C222 50554040 _ Elec. 10uF 25V
C223, C224 50554490 __ Elec. 47 pF 25V
C225 50549770 _ Elec. 10uF 16V (KU)
VARIABLE RESISTORS
VR201, VR202 50534220 Semi-fixed, 10 kQ-B
VR203, VR204 50534210 Semi-fixed, 5 kQ-B
H-8. RECORD AMP UNIT
REF, NO. PARTS NO. DESCRIPTION
51680881 PC Bd. Assy, A (4T)
51680891 PC Bd. Assy, B (2T)
51670110 PC Board
TRANSISTORS
Q501, 0502 50423590 2SC644-S
” Q503, Q504 50423770 2SC644-T
Q505, Q506 50423770 2SC644-T
0507, Q508 50424340 2S8C1000-BL
Q509 50424340 2SC1000-BL
ZENER DIODE
Dz501 50422580 0226.2A
CARBON RESISTORS
All resistors are rated 5% tolerance and 1/4 watt.
R501, R502 50573220 47k2
R503. R504 50573180 33kQ2
22
REF. NO. PARTS NO. DESCRIPTION
R505. R506 50572980 4.7kQ
R507, R508 50573160 27kQ
R509, R510 50573140 22k0
R511, R512 50573200 39k2
R513, R514 50573200 39k0
R515, R516 50573380 220k2
R517, R518 50573060 10k
R519, R520 50572980 4.7 k2
R521, R522 50572780 6802
R523, R524 50572780 6802
R525, R526 50572800 = 1kQ
R527, R528 50573160 27 kQ(2T only)
R529, R530 50572800 -1kQ
R531 50573300 100k2
R532 50572600. 1202
R533 50572920 _2.7k2
CAPACITORS
C501, C502 50554530 _— Elec. 4.7pF 25V
C503, C504 50547460 Dip.Mica 330pF = 50V(4T)
50547440 Dip. Mica 100pF — 50V (2T)
C505, C506 50549260 = Mylar 0.068uF 5O0V 5%
C507, C508 50554530 _— Elec. 4.7uF 25V
C509, C510 50543820 Dip. Mica 22pF 5OV
C511, C512 50554050 Elec. 10uF 16V
C513, C514 50549000 = Mylar 0.033uF 50V 5% (47)
50548990 = Mylar 0.027nF SOV 5% (2T)
C515, C516 50548950 = Mylar 0.012uF 5O0V 5%(4T)
50548920 = Mylar 0.0056uF 50V 5% (27)
C517, C518 51700820 Elec. 10uF 25V (LR)
C519, C520 50543120 Polyst. 820pF 250V
C521, C522 50548960 = Mylar 0.0015uF 50V 5% (2T)
C523 50554900 Elec. 22uF 35N
VARIABLE RESISTORS
VR501, VR502 50534190 Semi-fixed, 500 Q-B
VR503. VR504 50534200 = Semi-fixed, 1 kQ-B
COILS
L501, L502 50566670 ~— Record EQ. 1.5/2.4mH (41)
50566750 ~— Record EQ. 0.3/4.5mH (21)
L513, L514 50566300 = Trap, 3MH
MISCELLANEOUS
51670120 PC Board, Coil Mtg. ( x 2)
Il-9. SOLENOID DRIVE UNIT
REF. NO. PARTS NO. DESCRIPTION
51681454 PC Bd. Assy
51671450 PC Board
Q121,0123 50426250 ‘Transistor, 2SC1318-S
Q122,0124 50425270 . Transistor, 25D288-K
Q125 50426250 ‘Transistor, 2SC1318-S
Q126 50425270 ‘Transistor. 2SD288-K
Q127 50426250 si Transistor, 2$C1318-S
D123-D128 50422130 Diode, 1N6O
