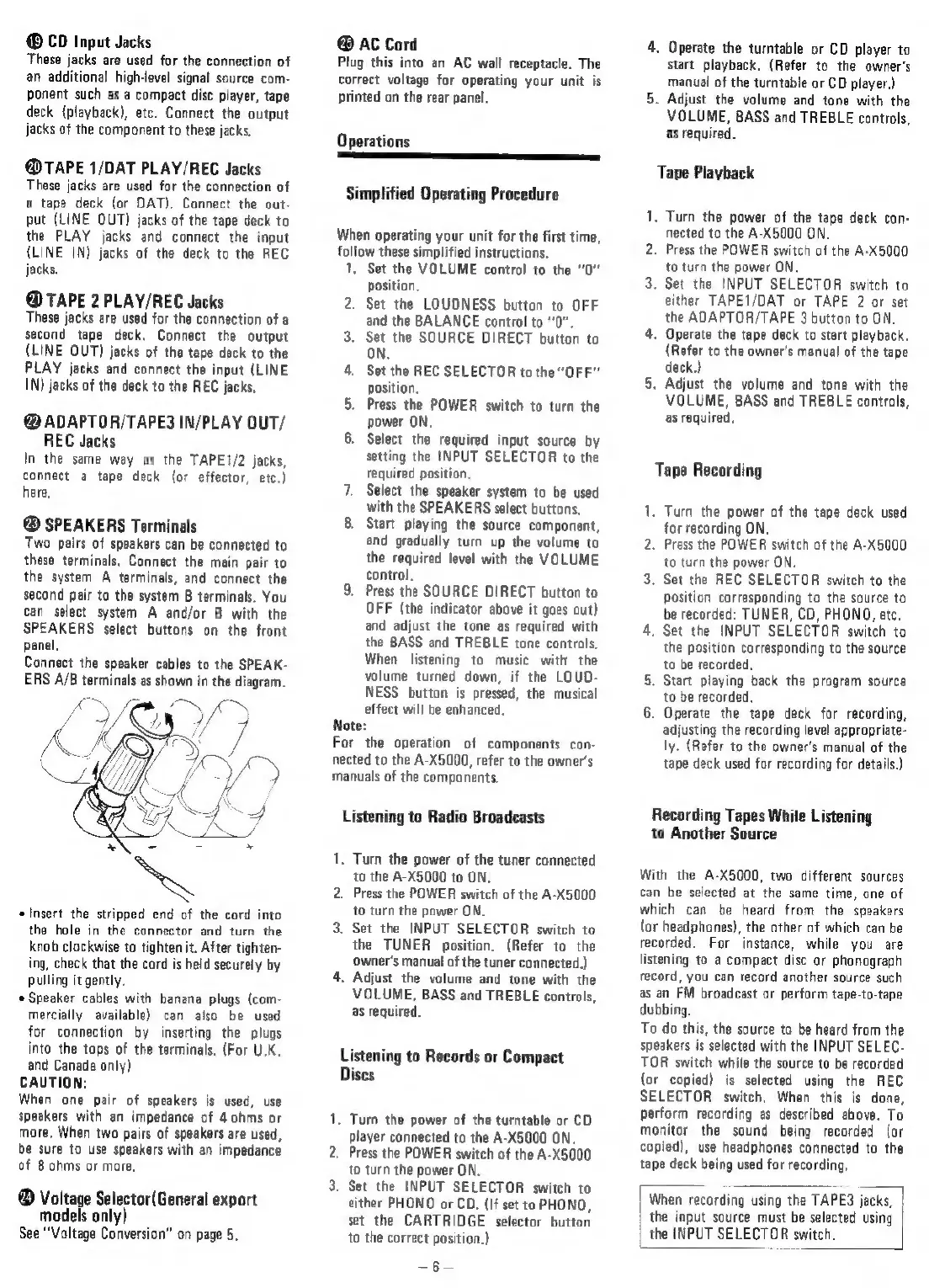

Page #6 background imageLoading...
Page #6 background image
®
CD
Input
Jacks
These
jacks
are
used
for the
connection
of
an
additional
high-level
signal
source
com-
ponent
such
as
a
compact
disc
player,
tape
deck
(playback),
etc.
Connect
the
output
jacks
of
the
component
to
these
jacks.
@
TAPE
1/DAT
PLAY/REC
Jacks
These
jacks
are
used
for
the
connection
of
a
tape
deck
(or
DAT),
Connect
the
out-
put
(LINE
OUT)
jacks
of
the
tape
deck
to
the
PLAY
jacks
and
connect
the
input
{LINE
IN)
jacks
of
the
deck
to
the
REC
jacks,
@
TAPE
2
PLAY/REC
Jacks
These
jacks
are
used
for
the
connection
of
a
second
tape
deck.
Connect
the
output
(LINE
OUT)
jacks
of
the
tape
deck
to
the
PLAY
jacks
and
connect
the
input
(LINE
IN)
jacks
of
the
deck
to
the
REC
jacks,
@
ADAPTOR/TAPE3
IN/PLAY
OUT/
REC
Jacks
In
the
same
way
as
the
TAPE1/2
jacks,
connect
a
tape
deck
(or
effector,
etc.)
here,
®
SPEAKERS
Terminals
Two
pairs
of
speakers
can
be
connected
to
these
terminals,
Connect
the
main
pair
to
the
system
A
terminals,
and
connect
the
second
pair
to
the
system
B
terminals.
You
can
select
system
A
and/or
B
with
the
SPEAKERS
select
buttons
on
the
front
panel.
Connect
the
speaker
cables
to
the
SPEAK-
ERS
A/B
terminals
as
shown
in
the
diagram.
elnsert
the
stripped
end
of
the
cord
into
the
hole
in
the
connector
and
turn
the
knob
clockwise
to
tighten
it.
After
tighten-
ing,
check
that
the
cord
is
held
securely
by
pulling
it
gently.
Speaker
cables
with
banana
plugs
(com-
mercially
available)
can
also
be
used
for
connection
by
inserting
the
plugs
into
the
tops
of
the
terminals.
(For
U.K.
and
Canada
only)
CAUTION:
When
one
pair
of
speakers
is
used,
use
speakers
with
an
impedance
of
4
ohms
or
more,
When
two
pairs
of
speakers
are
used,
be
sure
to
use
speakers
with
an
impedance
of
8
ohms
or
mare,
®
Voltaye
Selector(General
export
models
only)
See
‘Voltage
Conversion”
on
page
5.
@
AC
Cord
Plug
this
into
an
AC
wall
receptacle.
The
correct
voltage
for
operating
your
unit
is
printed
on
the
rear
panel.
Operations
Simplified
Operating
Procedure
When
operating
your
unit
for
the
first
time,
follow
these
simplified
instructions.
1,
Set the
VOLUME
control
to
the
“0”
position.
2.
Set
the
LOUDNESS
button
to
OFF
and
the
BALANCE
control
to
“0”.
3.
Set the
SOURCE
DIRECT
button
to
ON.
4.
Set
the
REC
SELECTOR
tothe
“OFF”
position.
5.
Press
the
POWER
switch
to
turn
the
power
ON.
6.
Select
the
required
input
source
by
setting
the
INPUT
SELECTOR
to
the
required
position.
7.
Select
the
speaker
system
to
be
used
with
the
SPEAKERS
select
buttons,
8.
Start
playing
the
source
component,
and
gradually
turn
up
the
volume
to
the
required
level
with
the
VOLUME
control.
9.
Press
the
SOURCE
DIRECT
button
to
OFF
(the
indicator
above
it
goes
out)
and
adjust
the
tone
as
required
with
the
BASS
and
TREBLE
tone
controls.
When
listening
to
music
with
the
volume
turned
down,
if
the
LOUD-
NESS
button
is
pressed,
the
musical
effect
will
be
enhanced.
Note:
For
the
operation
of
components
con-
nected
to
the
A-X5000,
refer
to
the
owner's
manuals
of
the
components.
Listening
to
Radio
Broadcasts
1.
Turn
the
power
of
the
tuner
connected
to
the
A-X5000
to
ON.
2.
Press
the
POWER
switch
of
the
A-X5000
to
turn
the
power
ON.
3.
Set the
INPUT
SELECTOR
switch
to
the
TUNER
position.
(Refer
to
the
owner's
manual
of
the
tuner
connected.)
4.
Adjust
the
volume
and
tone
with
the
VOLUME,
BASS
and
TREBLE
controls,
as
required.
Listening
to
Records
or
Compact
Dises
1.
Turn
the
power
of
the
turntable
or
CD
player
connected
to
the
A-X5000
ON,
2.
Press
the
POWER
switch
of
the
A-X5000
to
turn
the
power
ON.
3.
Set
the
INPUT
SELECTOR
switch
to
either
PHONO
or
CD.
(if
set
to
PHONO,
set
the
CARTRIDGE
selector
button
‘to
the
correct
position.)
f=
4,
Operate
the
turntable
or
CD
player
to
start
playback,
(Refer
to
the
owner‘s
manual
of
the
turntable
or
CD
player.)
5.
Adjust
the
volume
and
tone
with
the
VOLUME,
BASS
and
TREBLE
controls,
as
required.
Tape
Playback
1,
Turn
the
power
of
the
tape
deck
con-
nected
to
the
A-X5000
ON.
2.
Press
the
POWER
switch
of
the
A-x5000
to
turn
the
power
ON.
3.
Set
the
INPUT
SELECTOR
switch
to
either
TAPE1/DAT
or
TAPE
2
or
set
the
ADAPTOR/TAPE
3
button
to
ON.
4.
Operate
the
tape
deck
to
start
playback.
(Refer
to
the
owner's
manual
of
the
tape
deck.)
5,
Adjust
the
volume
and
tone
with
the
VOLUME,
BASS
and
TREBLE
controls,
as
required.
Tape
Recording
1.
Turn
the
power
of
the
tape
deck
used
for
recording
ON.
2.
Press
the
POWER
switch
of
the
A-X5000
to
turn
the
power
ON
3.
Set
the
REC
SELECTOR
switch
to
the
Position
corresponding
to
the
source
to
be
recorded:
TUNER,
CD,
PHONO,
etc.
4.
Set the
INPUT
SELECTOR
switch
to
the
position
corresponding
to
the
source
to
be
recorded.
5,
Start
playing
back
the
program
source
to
be
recorded.
6.
Operate
the
tape
deck
for
recording,
adjusting
the
recording
level
appropriate-
ly.
(Refer
to
the
owner's
manual
of
the
tape
deck
used
for
recording
for
details.)
Recording
Tapes
While
Listening
to
Another
Source
With
the
A-X5000,
two
different
sources
can
be
selected
at
the
same
time,
one
of
which
can
be
heard
from
the
speakers
{or
headphones),
the
other
nf
which
can
be
recorded.
For
instance,
while
you
are
listening
to
a
compact
disc
or
phonograph
record,
you
can
record
another
source
such
as
an
FM
broadcast
or
perform
tape-to-tape
dubbing.
To
do
this,
the
source
to
be
heard
from
the
speakers
is
selected
with
the
INPUT
SELEC-
TOR
switch
while
the
source
to
be
recorded
(or
copied)
is
selected
using
the
REC
SELECTOR
switch,
When
this
is
done,
perform
recording
as
described
above.
To
monitor
the
sound
being
recorded
(or
copied),
use
headphones
connected
to
the
tape
deck
being
used
for
recording.
When
recording
using
the
TAPES
jacks,
|
the
input
source
must
be
selected
using
|
|
the
INPUT
SELECTOR
switch.
