Teac AG-D200 - Connecting Your Components; Connecting Components with HDMI; Listening to TV audio (Optional); Connecting Components without HDMI

Connecting Components without HDMI
VIDEO
IN
AV OUT
Game
console
TV
The content information is displayed
(lists are displayed) on-screen, and you
can control the contents while looking
at the TV screen.
Portable player
- 3 -

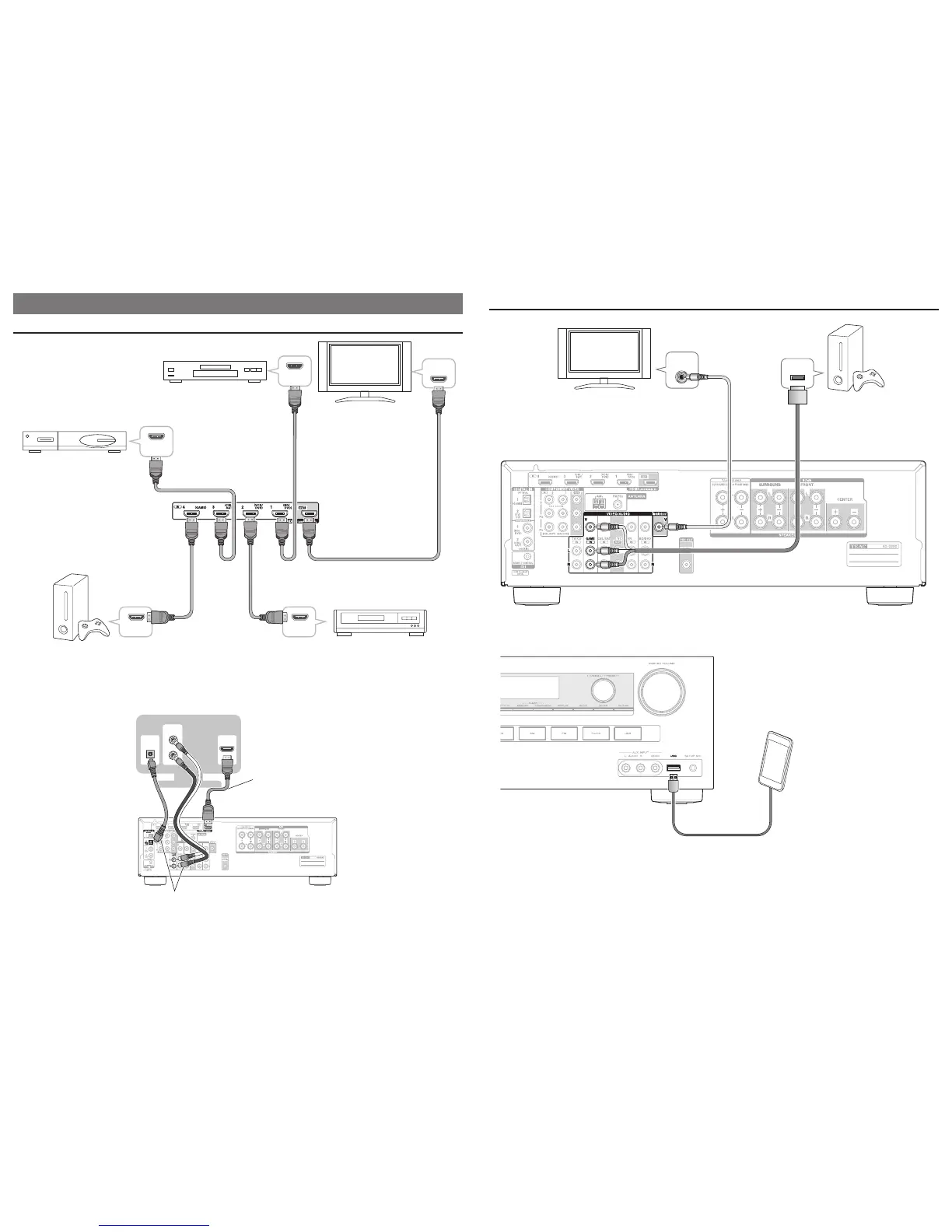

2. Connecting Your Components
Connecting Components with HDMI
HDMI
IN
HDMI
OUT
HDMI
OUT
HDMI
OUT
HDMI
OUT
Please turn on “HDMI Ctrl (RIHD)”
from the setup menu.
Blu-ray Disc/
DVD player
TV
Satellite/cable
set-top box, etc.
VCR or DVD recorder/
digital video recorder
Game
console
The components connected to each terminal (BD/DVD, GAME, etc.) can be selected with the input selector buttons of the same
name on the front panel. Note that these default assignments can be changed. For details, please refer to the instruction manual.
Listening to TV audio (Optional)
HDMI
IN
DIGITAL
OPTICAL
OUT
AUDIO
OUT
L
R
TV
Choose an audio connection that matches
your TV (without Audio Return Channel).
When using a TV that supports Audio Return Channel,
both audio/video signals from the AV receiver and the
audio output from the TV are carried bi-directionally on
a single HDMI cable.
■
- 4 -
