Teac AN-80 - Page 17

CIRCUIT
REF.NO.
Q101/102
Q103/104
Q105/106
Q107/108
Q109/110
Q111/112
Q113/114
Q115/116
Q117/118
Q119/120
D101/102
D103/104
D105/106
D107
D108
D109/110
D111/112

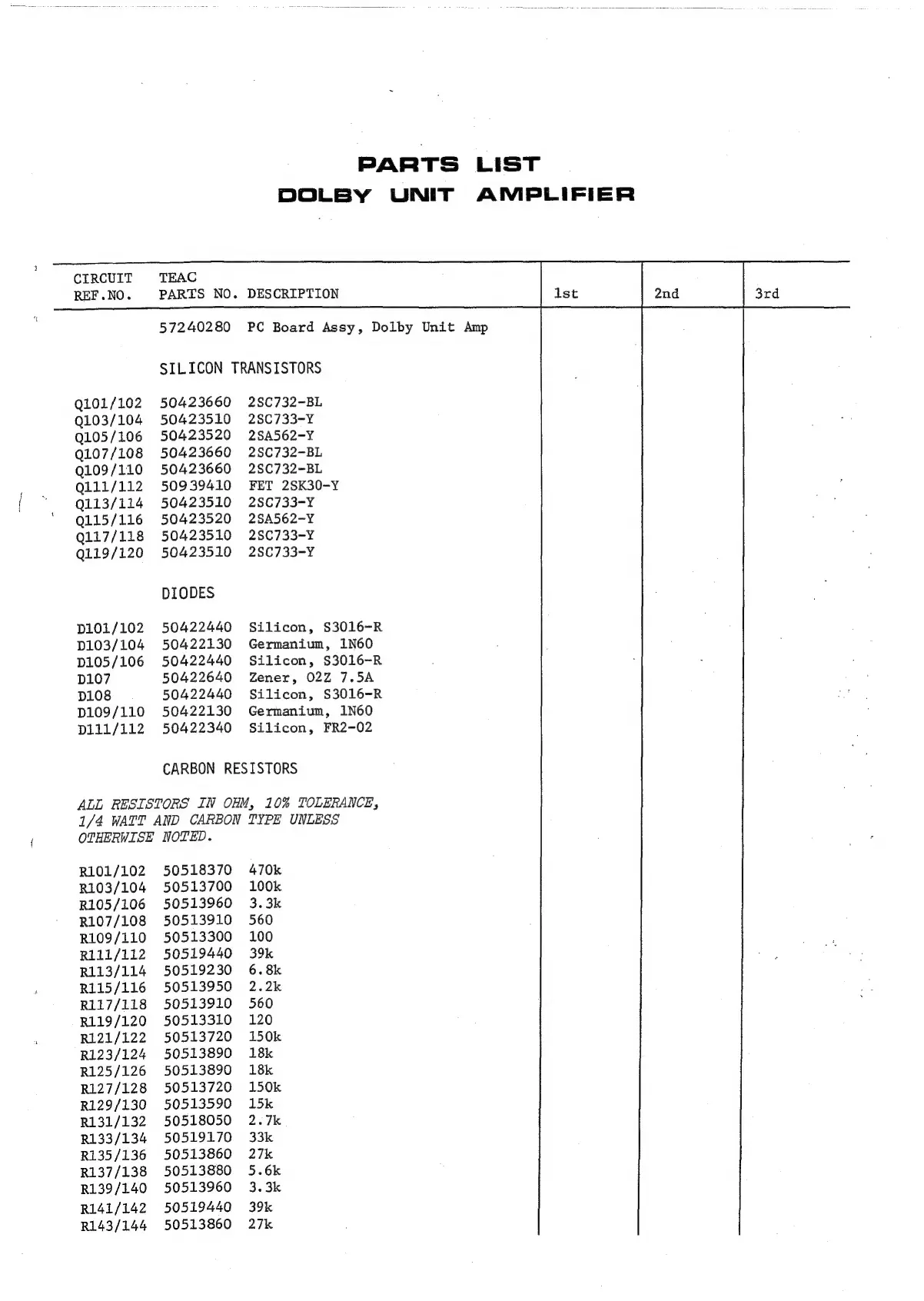

PARTS LIST
DOLBY UNIT AMPLIFIER
TEAC
PARTS NO. DESCRIPTION 1st and 3rd
57240280 PC Board Assy, Dolby Unit Amp
SILICON TRANSISTORS
50423660 2S8C732-BL
50423510 28C733-Y
50423520 2SA562-Y
50423660 2S8C732-BL
50423660 2SC732-BL
50939410 FET 2SK30-Y
50423510 28C733-Y
50423520 2SA562-Y
50423510 28C733-Y
50423510 28C733-Y
DIODES
50422440 Silicon, $3016-R
50422130 Germanium, 1N60
50422440 Silicon, $3016-R
50422640 Zener, 02Z 7.5A
50422440 Silicon, S3016-R
50422130 Germanium, 1N60
50422340 Silicon, FR2-02
CARBON RESISTORS
ALL RESISTORS IN OHM, 10% TOLERANCE,
1/4 WATT AND CARBON TYPE UNLESS
OTHERWISE NOTED.
RLO1/102
R1L03/104
R105/106
R107/108
R109/110
R111/112
R113/114
R115/116
R117/118
R119/120
R121/122
R123/124
R125/126
R127/128
R129/130
R131/132
R133/134
R135 /136
R137/138
R139/140
R141/142
R143/144
50518370 470k
50513700 100k
50513960 3.3k
50513910 560
50513300 100
50519440 39k
50519230 6.8k
50513950 2.2k
50513910 560
50513310 120
50513720 150k
50513890 18k
50513890 18k
50513720 150k
50513590 15k
50518050 2.7k
50519170 33k
50513860 27k
50513880 5.6k
50513960 3.3k
50519440 39k
50513860 27k
