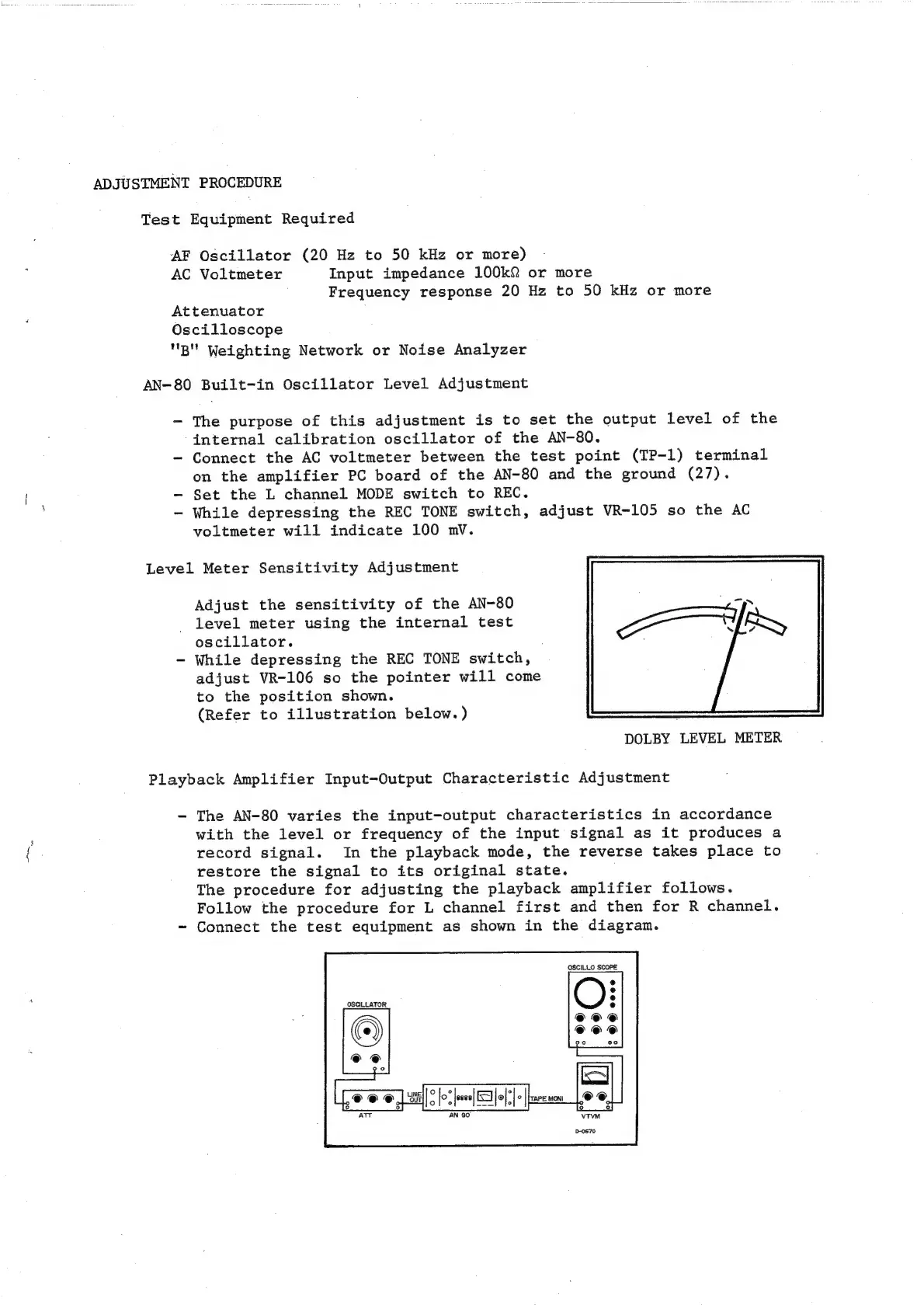

ADJUSTMENT
PROCEDURE
Test
Equipment
Required
AF
Oscillator
(20
Hz
to
50
kHz
or
more)
AC
Voltmeter
Input
impedance
100k
or
more
Frequency
response
20
Hz
to
50
kHz
or
more
Attenuator
Oscilloscope
"B"
Weighting
Network
or
Noise
Analyzer
AN-80
Built-in
Oscillator
Level
Adjustment
-
The
purpose
of
this
adjustment
is
to
set
the
output
level
of
the
‘internal
calibration
oscillator
of
the
AN-80.
~
Connect
the
AC
voltmeter
between
the
test
point
(TP-1)
terminal
on
the
amplifier
PC
board
of
the
AN-80
and
the
ground
(27).
-
Set
the
L
channel
MODE
switch
to
REC.
-
While
depressing
the
REC
TONE
switch,
adjust
VR-105
so
the
AC
voltmeter
will
indicate
100
mV.
Level
Meter
Sensitivity
Adjustment
Adjust
the
sensitivity
of
the
AN-80
level
meter
using
the
internal
test
oscillator.
-
While
depressing
the
REC
TONE
switch,
adjust
VR-106
so
the
pointer
will
come
to
the
position
shown.
(Refer
to
illustration
below.)
DOLBY
LEVEL
METER
Playback
Amplifier
Input-Output
Characteristic
Adjustment
-
The
AN-80
varies
the
input-output
characteristics
in
accordance
with
the
level
or
frequency
of
the
input
signal
as
it
produces
a
record
signal.
In
the
playback
mode,
the
reverse
takes
place
to
restore
the
signal
to
its
original
state.
The
procedure
for
adjusting
the
playback
amplifier
follows.
Follow
the
procedure
for
L
channel
first
and
then
for
R
channel.
~
Connect
the
test
equipment
as
shown
in
the
diagram.
