Teac AN-80 - Service Data; Input Impedance; Output Impedance

Frequency Response:
Increased SN Ratio:
Input Sensitivity:
Input Impedance:
Output Level:
Maximum Output Voltage:
Output Impedance:
Harmonic Distortion
Factor:
Multiplex Filter:
SN Ratio:
Calibration Oscillator:
Level variation
Oscillation Frequency:
Frequency Response:
Record Input
Sensitivity:
Input Impedance:
Record Output Level
Maximum Record Output
Level:
Output Impedance
Harmonic Distortion
Factor:
Multiplex Filter:
SN Ratio:

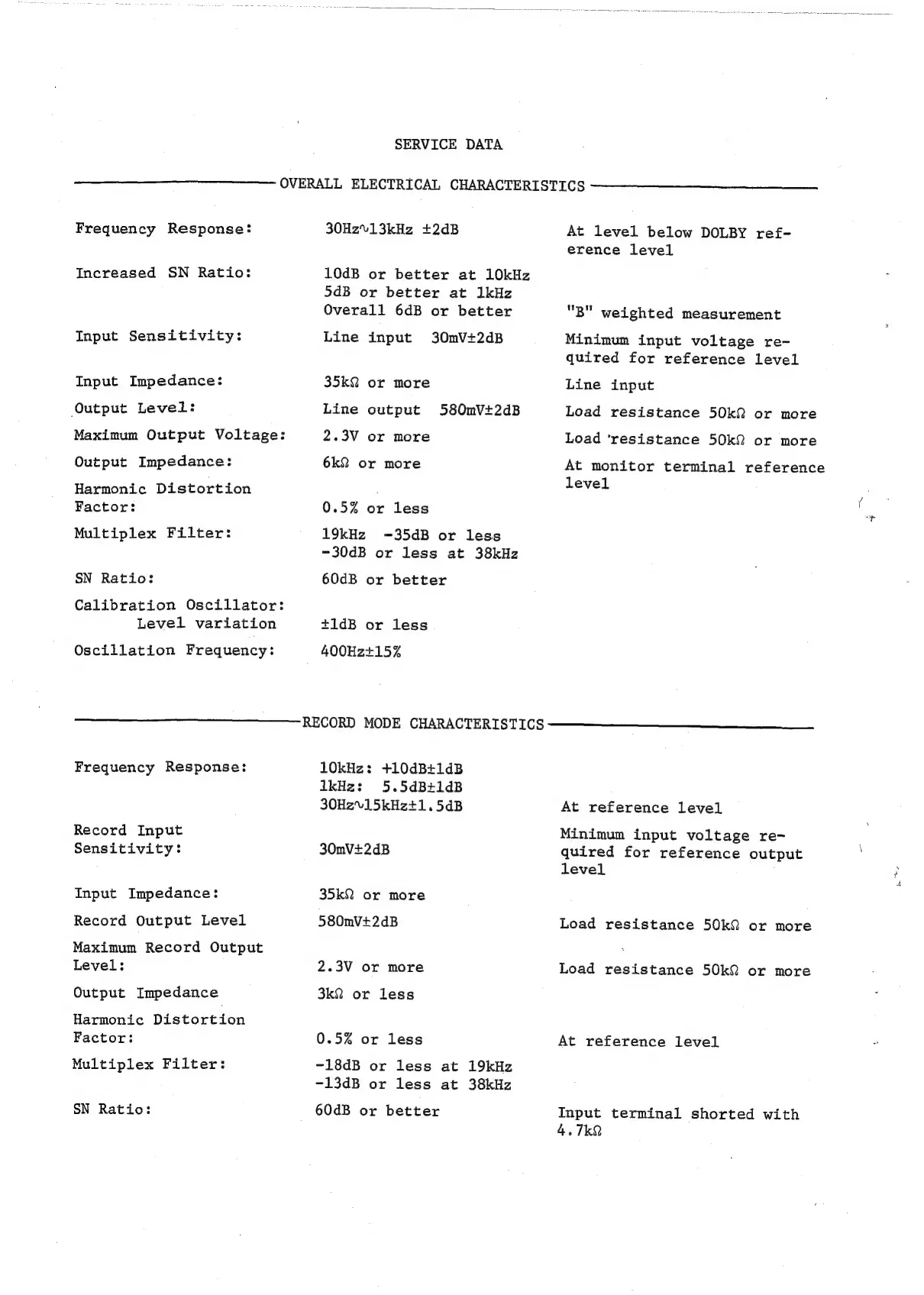

SERVICE DATA
30HZ2-13kHz +2dB
10dB or better at 10kHz
5dB or better at 1lkHz
Overall 6dB or better
Line input 30mV+2dB
35kQ or more
Line output 580mV+2dB
2.3V or more
6k2 or more
0.5% or less
19kHz --35dB or less
-30dB or less at 38kHz
60dB or better
+1dB or less
400H2+15%
10kHz: +10dB+1dB
kHz: 5.5dB+1dB
30HzV15kHz+1.5dB
30mVti2dB
35kQ or more
580mV+2dB
2.3V or more
3kQ2 or less
0.5% or less
-18dB or less at 19kHz
-13dB or less at 38kHz
60dB or better
OVERALL
ELECTRICAL
CHARACTERISTICS
—————————__________.
At level below DOLBY ref-
erence level
"B" weighted measurement
Minimum input voltage re-
quired for reference level
Line input
Load resistance 50k or more
Load ‘resistance 50k2 or more
At monitor terminal reference
level
RECORD
MODE
CHARACTERISTICS
—————____________
At reference level
Minimum input voltage re-
quired for reference output
level
Load resistance 50kQ2 or more
Load resistance 50k2 or more
At reference level
Input terminal shorted with
4, 7kQ
