Teac AN-80 - Page 3

aa
4
BPS
Frequency Response:
Playback Input
Sensitivity:
Input Impedance:
Playback Output Level:
Maximum playback output
Level:
Playback Output
Impedance:
Harmonic Distortion
Factor:
Multiplex Filter:
SN Ratio:
Power Supply:
Power Consumption:
AC Outlet:
Overall Dimensions:
Weight:

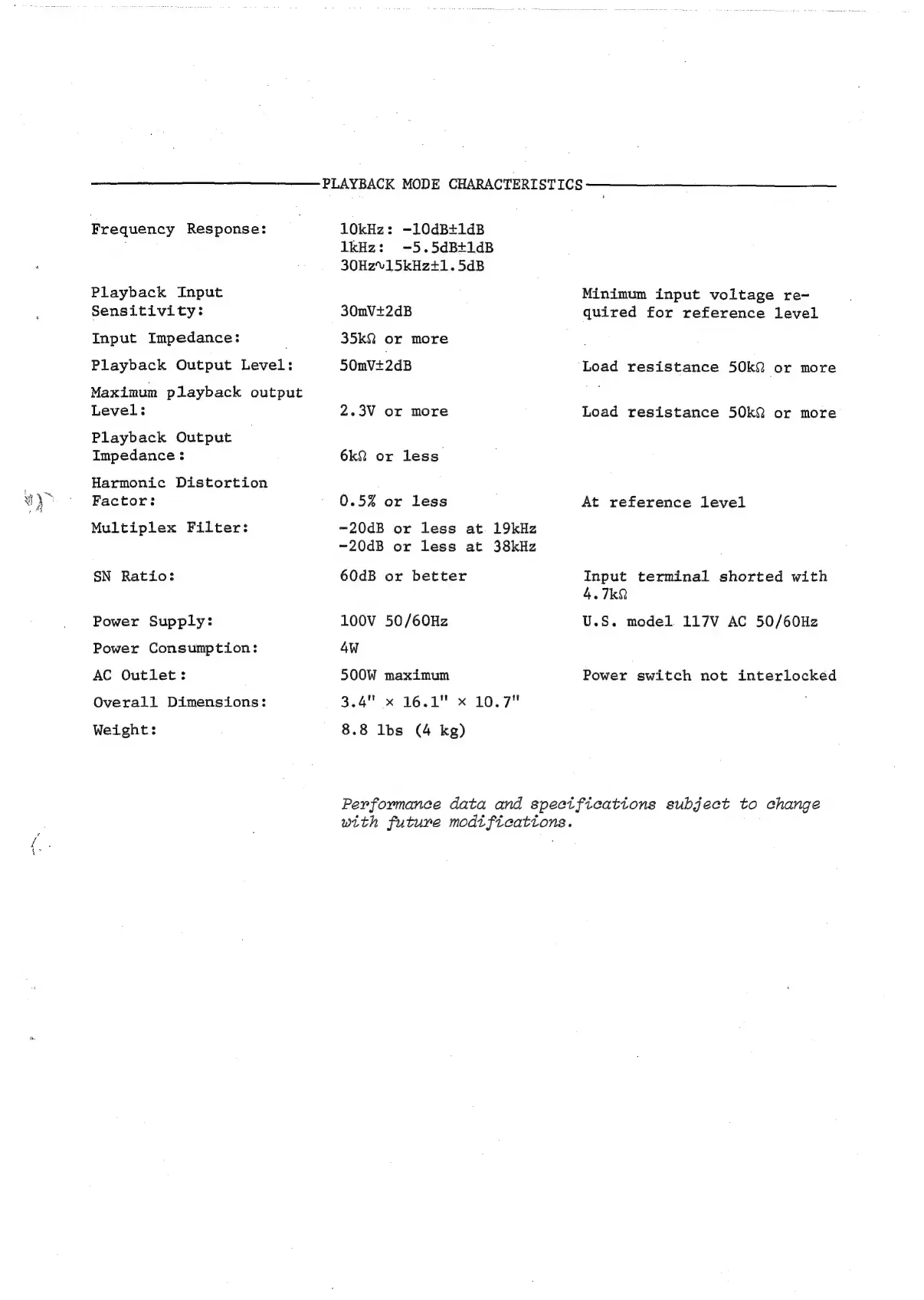

PLAYBACK MODE CHARACTERISTICS
10kHz: -10dB+1dB
lkHz: -5.5dB+t1dB
30HzV15kHz+1.5dB
Minimum input voltage re-
30mV+2dB quired for reference level
35kQ or more
50mVi2dB Load resistance 50k or more
2.3V or more Load resistance 50kQ2 or more
6k2 or less
0.5% or less At reference level
-20dB or less at 19kHz
-20dB or less at 38kHz
60dB or better Input terminal shorted with
4. 7kQ
100V 50/60Hz U.S. model. 117V AC 50/60Hz
4W
500W maximum Power switch not interlocked
3.4" x 16.1" x 10.7"
8.8 lbs (4 kg)
Performance data and spectfications subject to change
with future modt fications.
