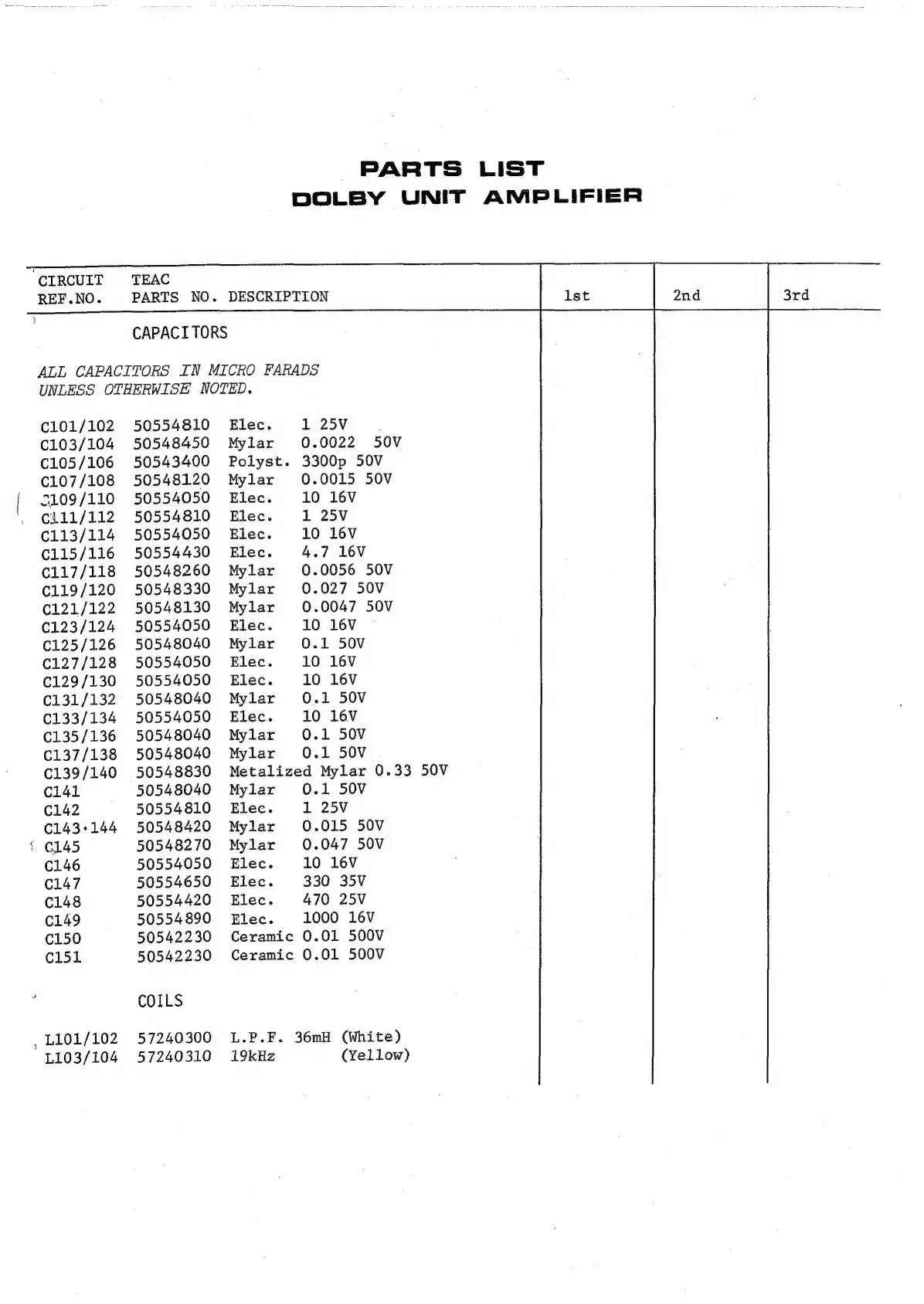

PARTS LIST
DOLBY
UNIT
AMPLIFIER
C101/102 50554810 Elec. 1 25V ;
C103/104 50548450 Mylar 0.0022 50V
C105/106 50543400 Polyst. 3300p 50V
C107/108 50548120 Mylar 0.0015 50V
[
2109/110
50554050
Elec.
10
16V
‘ ©@211/112 50554810 Elec. 1 25V
(113/114 50554050 Elec. 10 16V
C115/116 50554430 Elec. 4.7 16V
C117/118
50548260
Mylar
0.0056
50V
C119/120
50548330
Mylar
0.027
50V
(121/122 50548130 Mylar 0.0047 50V
C123/124 50554050 Elec. 10 16V
C125/126 50548040 Mylar 0.1 50V
C127/128 50554050 Elec. 10 16V
C129/130
50554050
Elec.
10
16V
C131/132.
50548040
Mylar
0.1
50V
C133/134
50554050
Elec.
10
16V
C135/136
50548040
Mylar
0.1
50V
C137/138
50548040
Mylar
0.1
50V
C139/140
50548830
Metalized
Mylar
0.33
50V
C141
50548040
Mylar
0.1
50V
C142
50554810
Elec.
1
25V
C143°144
50548420
Mylar
0.015
50V
{
GL45
50548270
Mylar
0.047
50V
C146
50554050
Elec.
10
16V
C147
50554650
Elec.
330
35V
C148
50554420
Elec.
470
25V
C149
50554890
Elec.
1000
16V
C150
50542230
Ceramic
0.01
500V
C151
50542230
Ceramic
0.01
500V
:
COILS
,
L101/102
57240300
L.P.F.
36mH
(White)
L103/104
57240310
19kHz
(Yellow)
“CIRCUIT
REF.NO.
j
TEAC
PARTS NO. DESCRIPTION
CAPACI TORS
ALL CAPACITORS IN MICRO FARADS
UNLESS OTHERWISE NOTED.
2nd
3rd
