3 ADJUSTMENTS AND CHECKS
Use a screwdriver with a plastic or ceramic grip for all adjustment.
3-1 TUNER SECTION
1. Set the function switch to the AM position.
2. Connect the test loop antenna across the output of the signal generator.
3. Connect the oscilloscope to the speaker terminal.
4. Set the signal generator as listed in the alignment chart.
3-1-2 AM adjustment
1. Set the function switch to the FM position.
2. Connect the signal generator output through a 75 ohm dummy
3. Connect the oscilloscope to the speaker terminal.
4. Set the signal generator as listed in the alignment chart.
3-1-1 FM adjustment
antenna to "ANT" on MAIN PCB.
3-2 Adjustment and Test Points
4
CD-X9

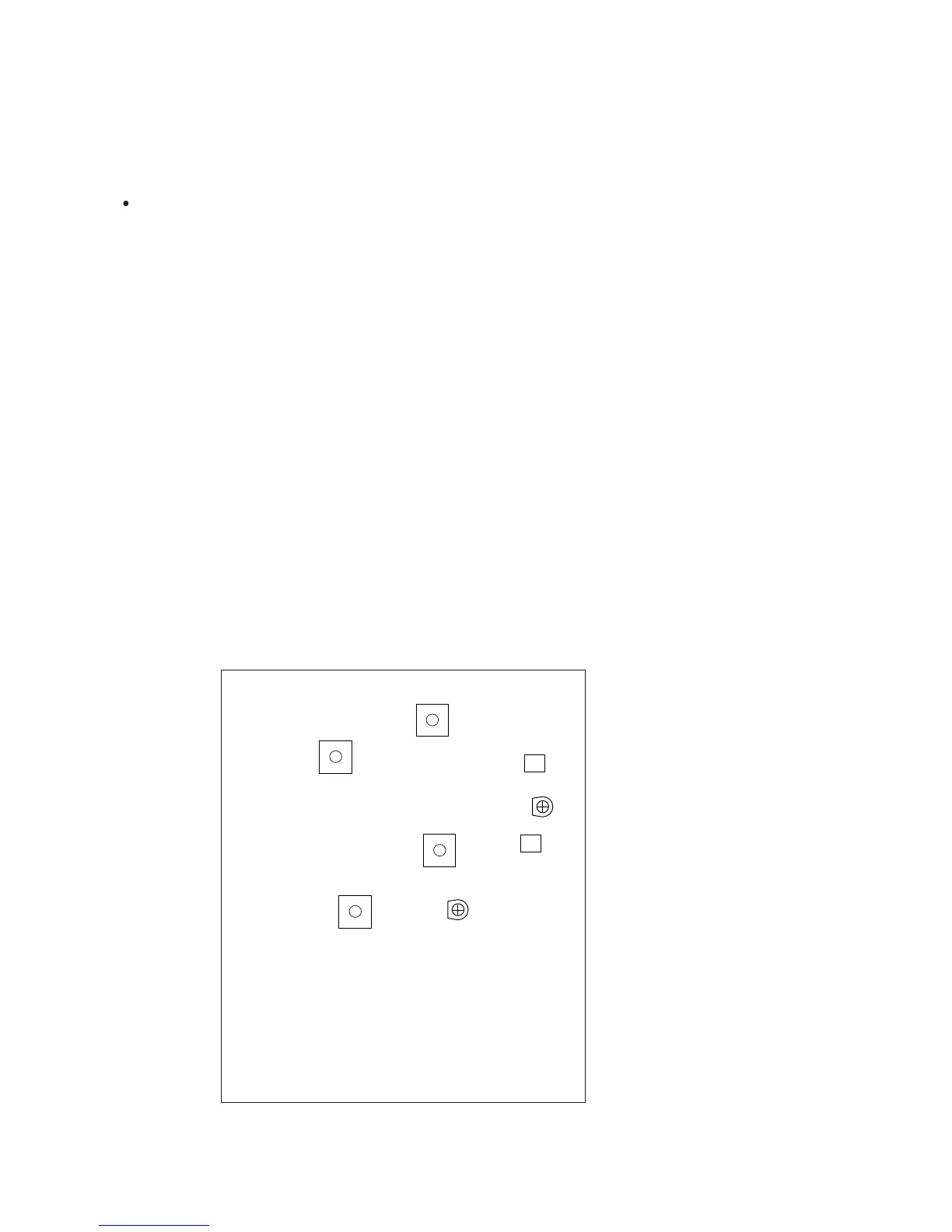

CD-X9 MAIN(TUNER) PCB
T205
L201
T204
SVC202
L202
SVC201
T203
T206
To Next Page
