3 ADJUSTMENTS AND CHECKS
Use a screwdriver with a plastic or ceramic grip for all adjustment.
3-1 TUNER Section
1. Set the function switch to the AM position.
2. Connect an RF generation to a standard radiating loop.
3-1-2 AM adjustment
1. Set the function switch to the FM position.
2. Connect an RF generator to the FM antenna terminal and ground.
3. Connect a SCOPE & VTVM across the speaker output.
3-1-1 FM adjustment
3-2 Adjustment and Test Points
4
GR-10i/SR-L200i
3. Connect a SCOPE & VTVM across the speaker output.

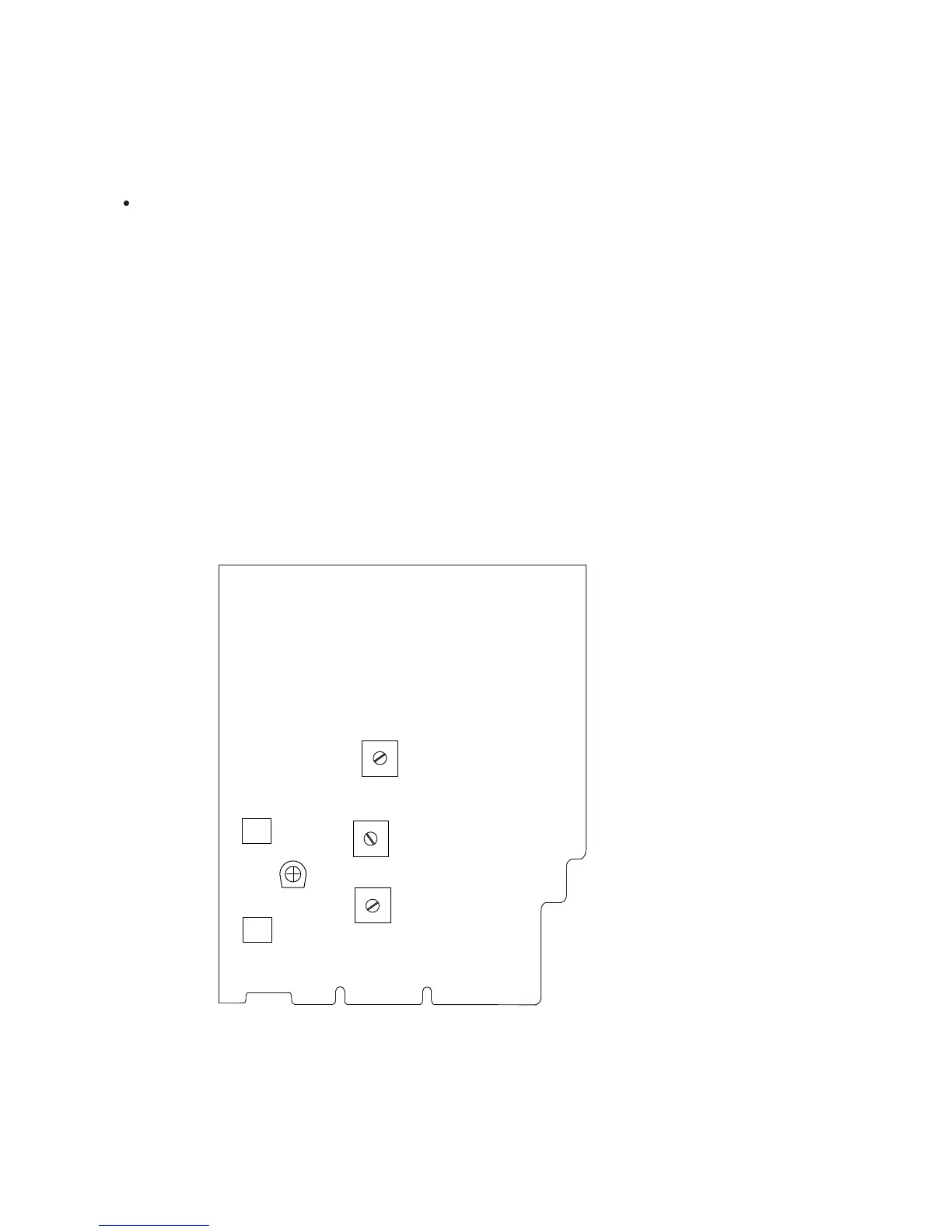

MAIN/TUNER PCB
T201
L201
L202
T203
T202
CT201
