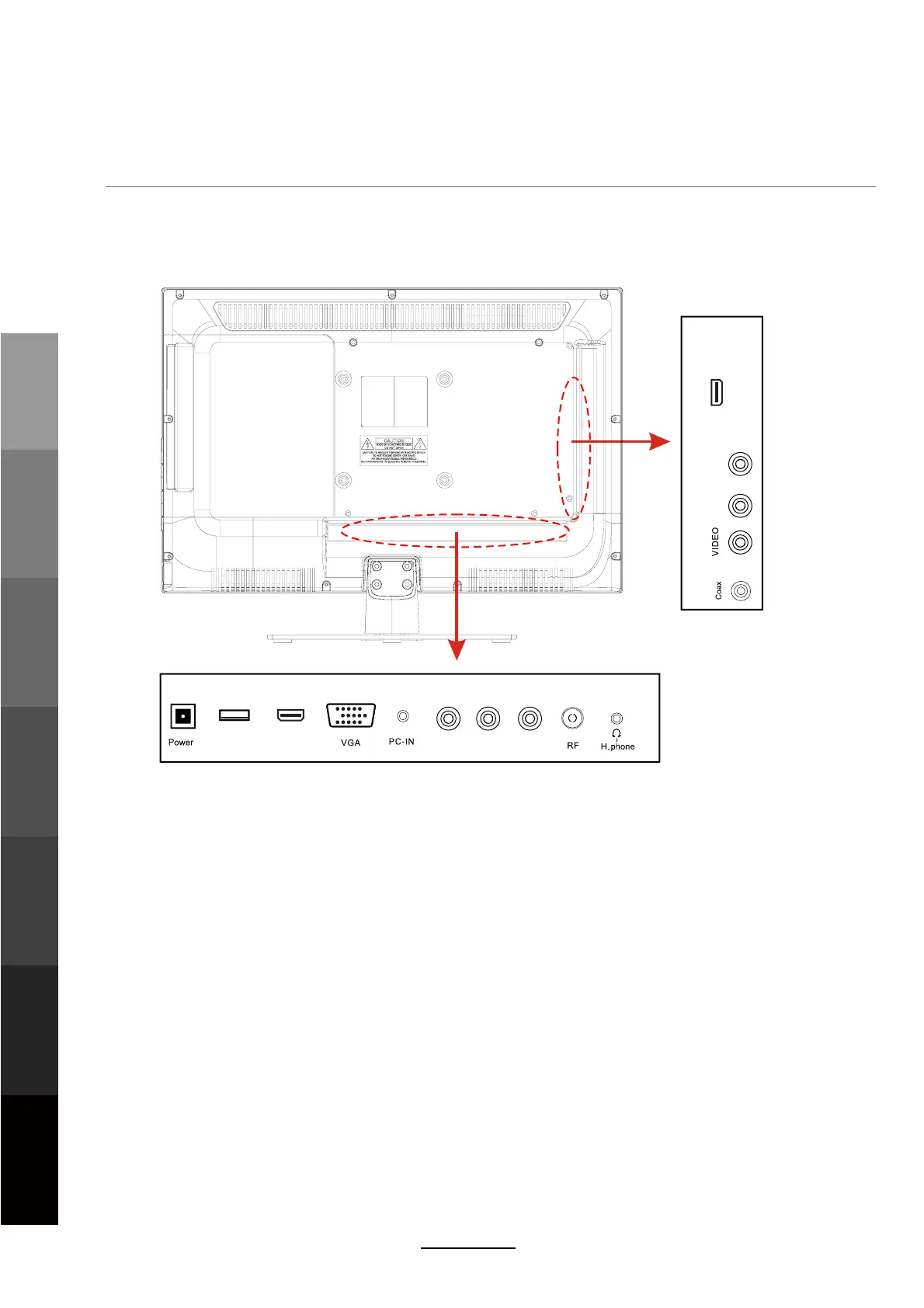

Back View
Basic OperationOSD Menu
Multimedia
Operation
Recording
Operation
DVD Operation
User Guidance
Information
Maintenance
and Service
8
POWER : Connect to the AC power adaptor.
USB: Connect USB storage devices/hard disk drives
.
HDMI1/2: Connect to the HDMI output of external devices like DVD players with a HDMI cable.
YPbPr: Connect to the YPbPr video output sockets of external devices.
PC-IN: Connect to the audio output terminal on the PC.
VGA : For PC video input. Connect to the VGA/RGB plug on the PC.
Coax: Digital output to AV receiver.
H.phone out : Connect to your headphones or other audio equipment.
VIDEO : Connect to video output terminal of external devices.
R/L in : Connect to the audio output terminal of external devices.(shared with YPbPr)
RF : Connect an antenna or a 75 Ohm coaxial cable to receive a TV signal.
Y Pb Pr
USB
HDMI2
HDMI1
L-in R-in
