Stand and wall-mounting instructions (optional)
How to assemble the stand
-Before attaching/detaching the stand, make sure to turn off the TV.
-Before performing work, spread cushioning over the base area to lay the LED TV on.
This will prevent it from being damaged.

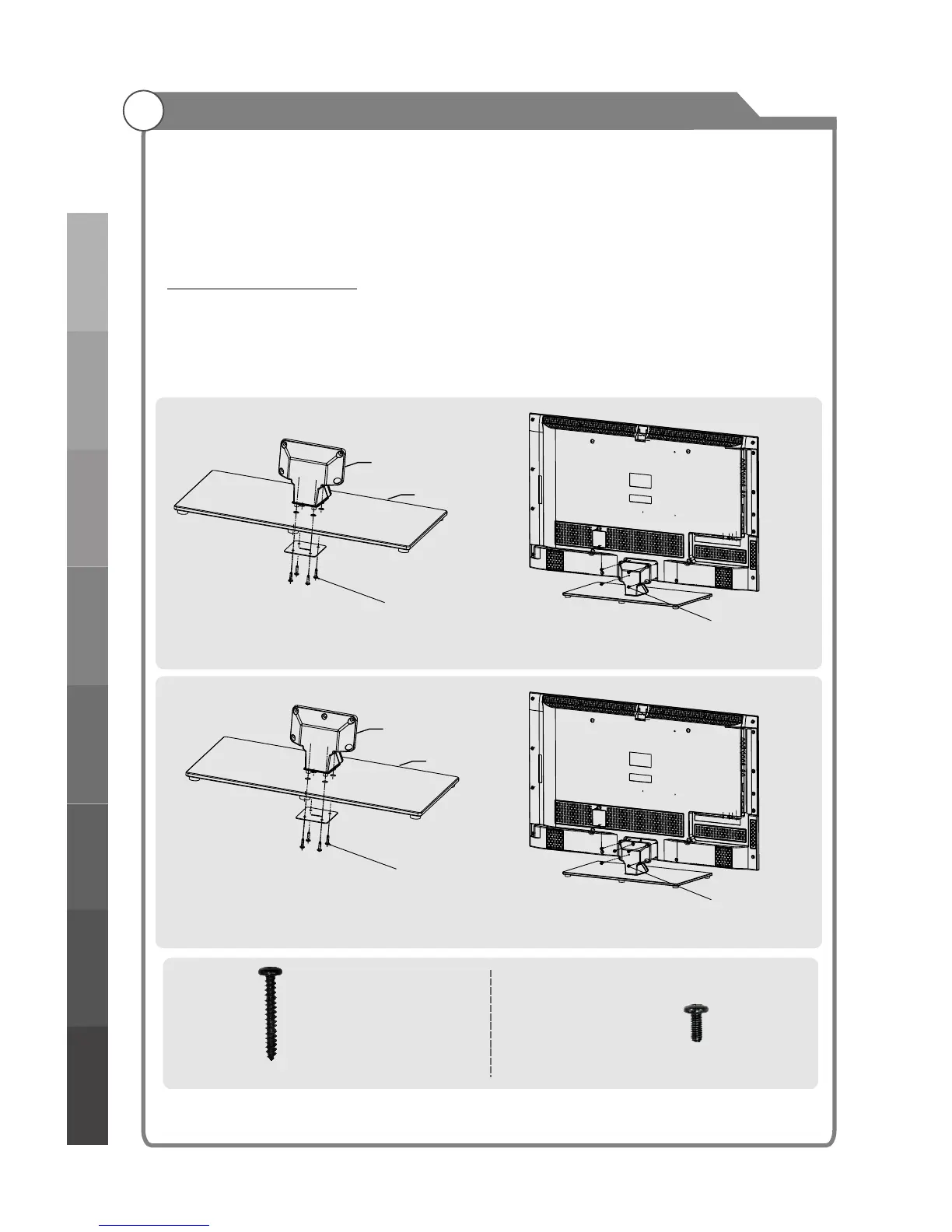

Assembling instruction:
1) Fix the bracket and the stand with four screws .(figure 1)
2) Put the television on the table, fix the stand and the unit with screws given in the carton.
(Figure 2)
- To disconnect the stand from the TV, perform the above steps in reverse order.
If you need to remove or assemble the stand please read the following instructions.
8
Figure 1
Figure 2
Screw
B-ST4*20x4
Screw
B-M4*10x4
Bracket
Stand
Figure 2
Screw
B-M4*10x5
Figure 1
Screw
B-ST4*20x4
Bracket
Stand
Only for 42”model
Only for 55”model
B- ST4*20
B-M4*10
