Teac MC-D76 - Page 13

13
ENGLISH

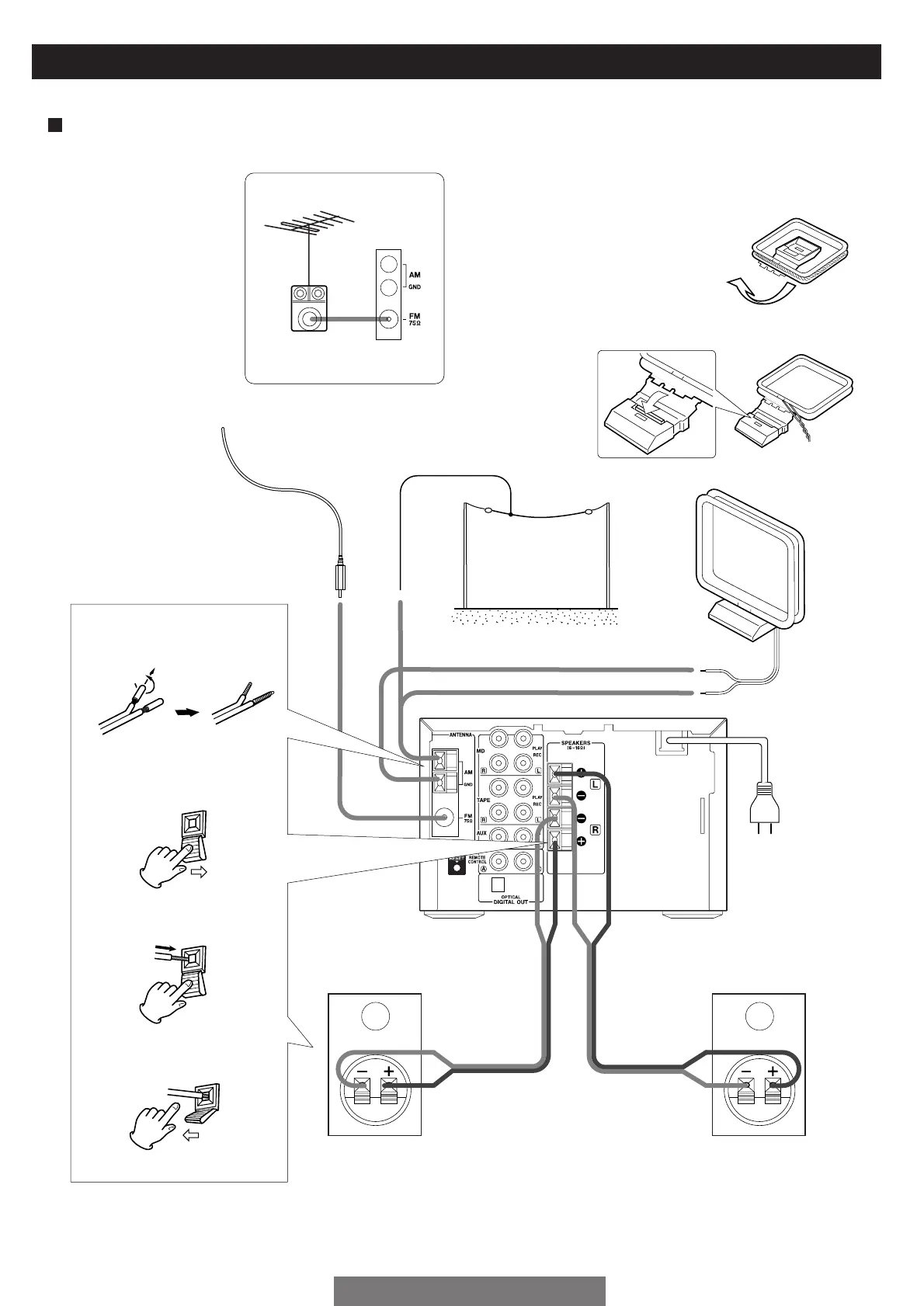

Connection of antennas and speakers
CAUTION:
Do not plug the power cord of any component into AC outlets and do not turn their POWER
switches on until all connections have been performed.
FM ANTENNA
Connect the lead-type
FM antenna to the FM
antenna terminal. Secure
it in the location providing
optimum reception.
In an area where FM
signals are weak, 75-ohm
unbalanced-type outdoor
FM antenna(3 elements or
more) is recommended.
AM Loop Antenna
To stand the antenna
on a surface, fix the
claw to the slot. After
standing it, position it to
find the best direction
and position for radio
reception.
Lead-type FM Antenna(75Ω)
AC Power
Connect the + terminal(red) to the
+
terminal(red), the _terminal(black) to
the _
terminal(black).
FM outdoor antenna
Matching Transformer
(optional)
In an area where AM signals
are weak, use an external
AM antenna.
1. Strip insulation from the ends
of antenna cables.
2. Press the tab.
3. Insert wire.
4. Release the tab.
