SERVICE MANUAL
39

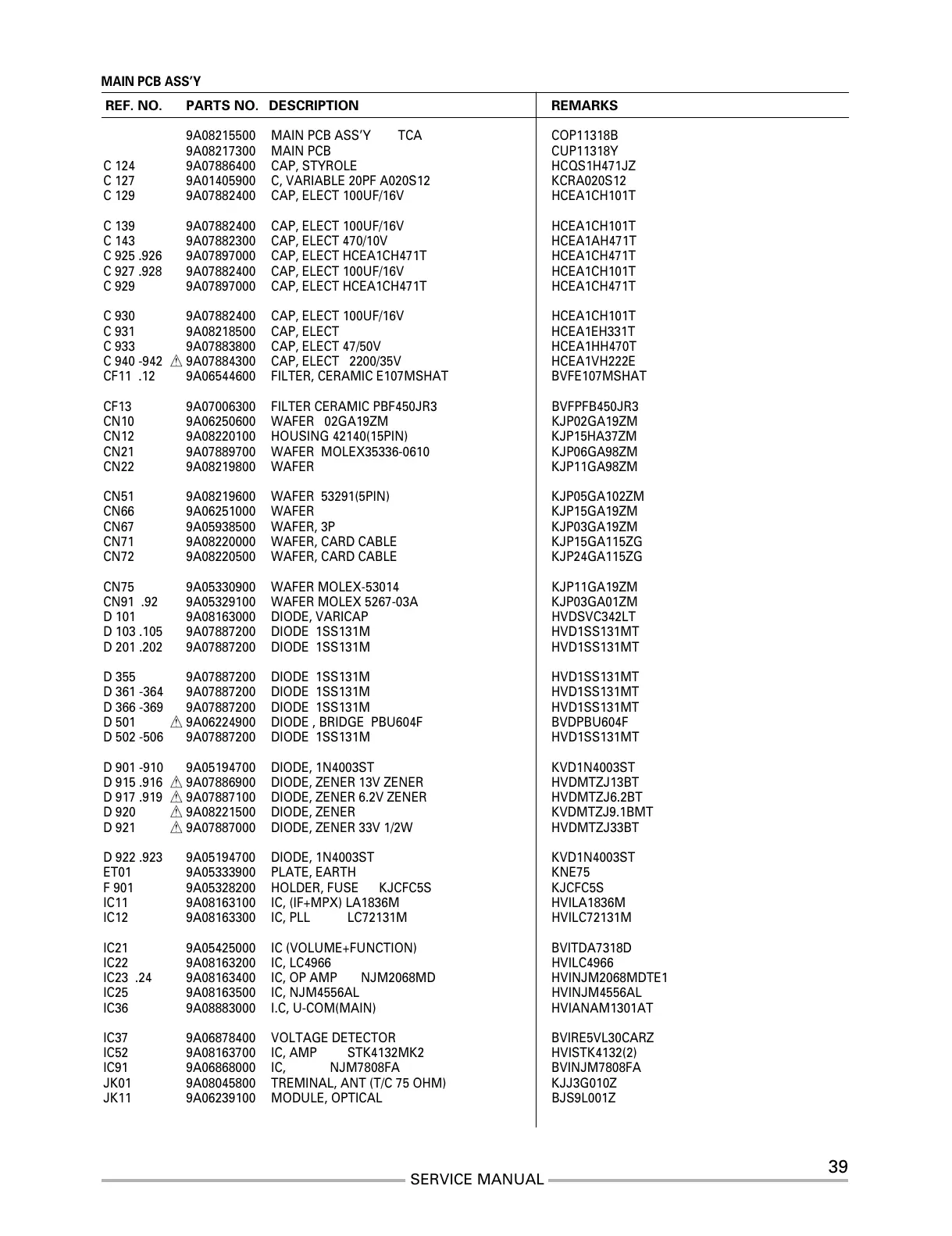

MAIN PCB ASS’Y
REF. NO. PARTS NO. DESCRIPTION REMARKS
9A08215500 MAIN PCB ASS’Y TCA COP11318B
9A08217300 MAIN PCB CUP11318Y
C 124 9A07886400 CAP, STYROLE HCQS1H471JZ
C 127 9A01405900 C, VARIABLE 20PF A020S12 KCRA020S12
C 129 9A07882400 CAP, ELECT 100UF/16V HCEA1CH101T
C 139 9A07882400 CAP, ELECT 100UF/16V HCEA1CH101T
C 143 9A07882300 CAP, ELECT 470/10V HCEA1AH471T
C 925 .926 9A07897000 CAP, ELECT HCEA1CH471T HCEA1CH471T
C 927 .928 9A07882400 CAP, ELECT 100UF/16V HCEA1CH101T
C 929 9A07897000 CAP, ELECT HCEA1CH471T HCEA1CH471T
C 930 9A07882400 CAP, ELECT 100UF/16V HCEA1CH101T
C 931 9A08218500 CAP, ELECT HCEA1EH331T
C 933 9A07883800 CAP, ELECT 47/50V HCEA1HH470T
C 940 -942
£
9A07884300 CAP, ELECT 2200/35V HCEA1VH222E
CF11 .12 9A06544600 FILTER, CERAMIC E107MSHAT BVFE107MSHAT
CF13 9A07006300 FILTER CERAMIC PBF450JR3 BVFPFB450JR3
CN10 9A06250600 WAFER 02GA19ZM KJP02GA19ZM
CN12 9A08220100 HOUSING 42140(15PIN) KJP15HA37ZM
CN21 9A07889700 WAFER MOLEX35336-0610 KJP06GA98ZM
CN22 9A08219800 WAFER KJP11GA98ZM
CN51 9A08219600 WAFER 53291(5PIN) KJP05GA102ZM
CN66 9A06251000 WAFER KJP15GA19ZM
CN67 9A05938500 WAFER, 3P KJP03GA19ZM
CN71 9A08220000 WAFER, CARD CABLE KJP15GA115ZG
CN72 9A08220500 WAFER, CARD CABLE KJP24GA115ZG
CN75 9A05330900 WAFER MOLEX-53014 KJP11GA19ZM
CN91 .92 9A05329100 WAFER MOLEX 5267-03A KJP03GA01ZM
D 101 9A08163000 DIODE, VARICAP HVDSVC342LT
D 103 .105 9A07887200 DIODE 1SS131M HVD1SS131MT
D 201 .202 9A07887200 DIODE 1SS131M HVD1SS131MT
D 355 9A07887200 DIODE 1SS131M HVD1SS131MT
D 361 -364 9A07887200 DIODE 1SS131M HVD1SS131MT
D 366 -369 9A07887200 DIODE 1SS131M HVD1SS131MT
D 501
£
9A06224900 DIODE , BRIDGE PBU604F BVDPBU604F
D 502 -506 9A07887200 DIODE 1SS131M HVD1SS131MT
D 901 -910 9A05194700 DIODE, 1N4003ST KVD1N4003ST
D 915 .916
£
9A07886900 DIODE, ZENER 13V ZENER HVDMTZJ13BT
D 917 .919
£
9A07887100 DIODE, ZENER 6.2V ZENER HVDMTZJ6.2BT
D 920
£
9A08221500 DIODE, ZENER KVDMTZJ9.1BMT
D 921
£
9A07887000 DIODE, ZENER 33V 1/2W HVDMTZJ33BT
D 922 .923 9A05194700 DIODE, 1N4003ST KVD1N4003ST
ET01 9A05333900 PLATE, EARTH KNE75
F 901 9A05328200 HOLDER, FUSE KJCFC5S KJCFC5S
IC11 9A08163100 IC, (IF+MPX) LA1836M HVILA1836M
IC12 9A08163300 IC, PLL LC72131M HVILC72131M
IC21 9A05425000 IC (VOLUME+FUNCTION) BVITDA7318D
IC22 9A08163200 IC, LC4966 HVILC4966
IC23 .24 9A08163400 IC, OP AMP NJM2068MD HVINJM2068MDTE1
IC25 9A08163500 IC, NJM4556AL HVINJM4556AL
IC36 9A08883000 I.C, U-COM(MAIN) HVIANAM1301AT
IC37 9A06878400 VOLTAGE DETECTOR BVIRE5VL30CARZ
IC52 9A08163700 IC, AMP STK4132MK2 HVISTK4132(2)
IC91 9A06868000 IC, NJM7808FA BVINJM7808FA
JK01 9A08045800 TREMINAL, ANT (T/C 75 OHM) KJJ3G010Z
JK11 9A06239100 MODULE, OPTICAL BJS9L001Z
