Teac MC-D90 - PCB ASSEMBLIES

SERVICE MANUAL
42

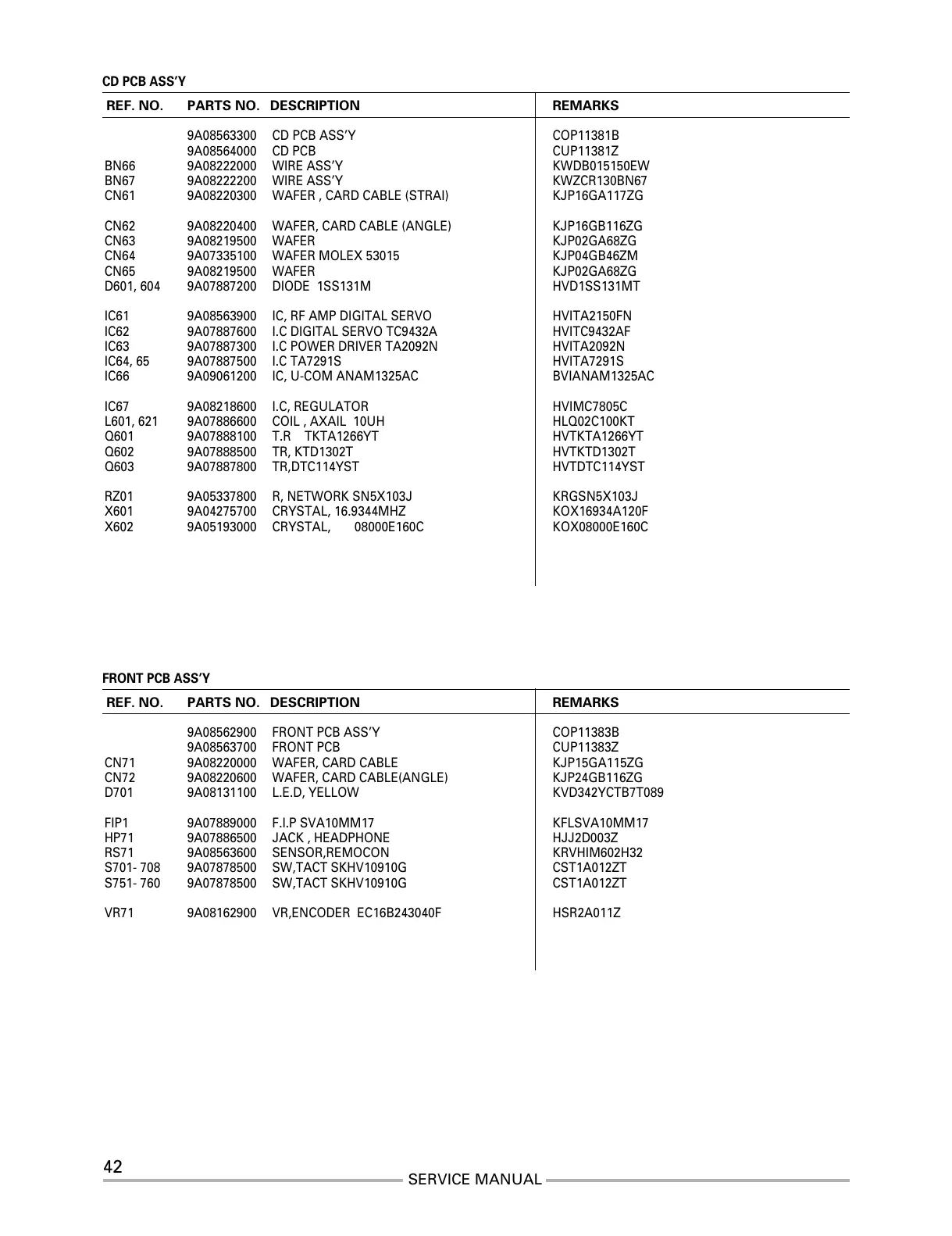

CD PCB ASS’Y
REF. NO. PARTS NO. DESCRIPTION REMARKS
9A08563300 CD PCB ASS’Y COP11381B
9A08564000 CD PCB CUP11381Z
BN66 9A08222000 WIRE ASS’Y KWDB015150EW
BN67 9A08222200 WIRE ASS’Y KWZCR130BN67
CN61 9A08220300 WAFER , CARD CABLE (STRAI) KJP16GA117ZG
CN62 9A08220400 WAFER, CARD CABLE (ANGLE) KJP16GB116ZG
CN63 9A08219500 WAFER KJP02GA68ZG
CN64 9A07335100 WAFER MOLEX 53015 KJP04GB46ZM
CN65 9A08219500 WAFER KJP02GA68ZG
D601, 604 9A07887200 DIODE 1SS131M HVD1SS131MT
IC61 9A08563900 IC, RF AMP DIGITAL SERVO HVITA2150FN
IC62 9A07887600 I.C DIGITAL SERVO TC9432A HVITC9432AF
IC63 9A07887300 I.C POWER DRIVER TA2092N HVITA2092N
IC64, 65 9A07887500 I.C TA7291S HVITA7291S
IC66 9A09061200 IC, U-COM ANAM1325AC BVIANAM1325AC
IC67 9A08218600 I.C, REGULATOR HVIMC7805C
L601, 621 9A07886600 COIL , AXAIL 10UH HLQ02C100KT
Q601 9A07888100 T.R TKTA1266YT HVTKTA1266YT
Q602 9A07888500 TR, KTD1302T HVTKTD1302T
Q603 9A07887800 TR,DTC114YST HVTDTC114YST
RZ01 9A05337800 R, NETWORK SN5X103J KRGSN5X103J
X601 9A04275700 CRYSTAL, 16.9344MHZ KOX16934A120F
X602 9A05193000 CRYSTAL, 08000E160C KOX08000E160C
FRONT PCB ASS’Y
REF. NO. PARTS NO. DESCRIPTION REMARKS
9A08562900 FRONT PCB ASS’Y COP11383B
9A08563700 FRONT PCB CUP11383Z
CN71 9A08220000 WAFER, CARD CABLE KJP15GA115ZG
CN72 9A08220600 WAFER, CARD CABLE(ANGLE) KJP24GB116ZG
D701 9A08131100 L.E.D, YELLOW KVD342YCTB7T089
FIP1 9A07889000 F.I.P SVA10MM17 KFLSVA10MM17
HP71 9A07886500 JACK , HEADPHONE HJJ2D003Z
RS71 9A08563600 SENSOR,REMOCON KRVHIM602H32
S701- 708 9A07878500 SW,TACT SKHV10910G CST1A012ZT
S751- 760 9A07878500 SW,TACT SKHV10910G CST1A012ZT
VR71 9A08162900 VR,ENCODER EC16B243040F HSR2A011Z
