Teac MC-D90 - MAIN PCB ASSY COMPONENT DETAILS

SERVICE MANUAL
41

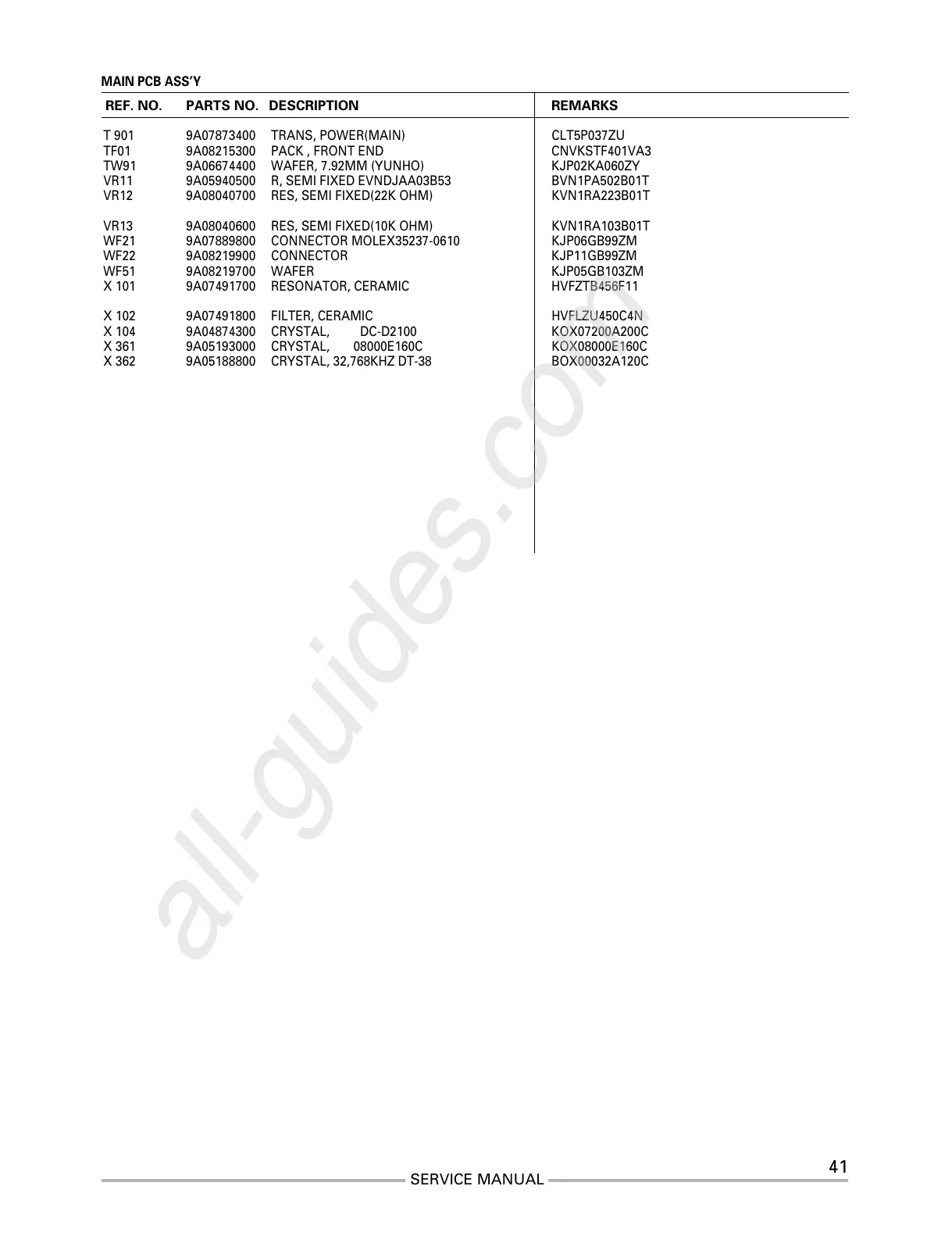

MAIN PCB ASS’Y
REF. NO. PARTS NO. DESCRIPTION REMARKS
T 901 9A07873400 TRANS, POWER(MAIN) CLT5P037ZU
TF01 9A08215300 PACK , FRONT END CNVKSTF401VA3
TW91 9A06674400 WAFER, 7.92MM (YUNHO) KJP02KA060ZY
VR11 9A05940500 R, SEMI FIXED EVNDJAA03B53 BVN1PA502B01T
VR12 9A08040700 RES, SEMI FIXED(22K OHM) KVN1RA223B01T
VR13 9A08040600 RES, SEMI FIXED(10K OHM) KVN1RA103B01T
WF21 9A07889800 CONNECTOR MOLEX35237-0610 KJP06GB99ZM
WF22 9A08219900 CONNECTOR KJP11GB99ZM
WF51 9A08219700 WAFER KJP05GB103ZM
X 101 9A07491700 RESONATOR, CERAMIC HVFZTB456F11
X 102 9A07491800 FILTER, CERAMIC HVFLZU450C4N
X 104 9A04874300 CRYSTAL, DC-D2100 KOX07200A200C
X 361 9A05193000 CRYSTAL, 08000E160C KOX08000E160C
X 362 9A05188800 CRYSTAL, 32,768KHZ DT-38 BOX00032A120C
