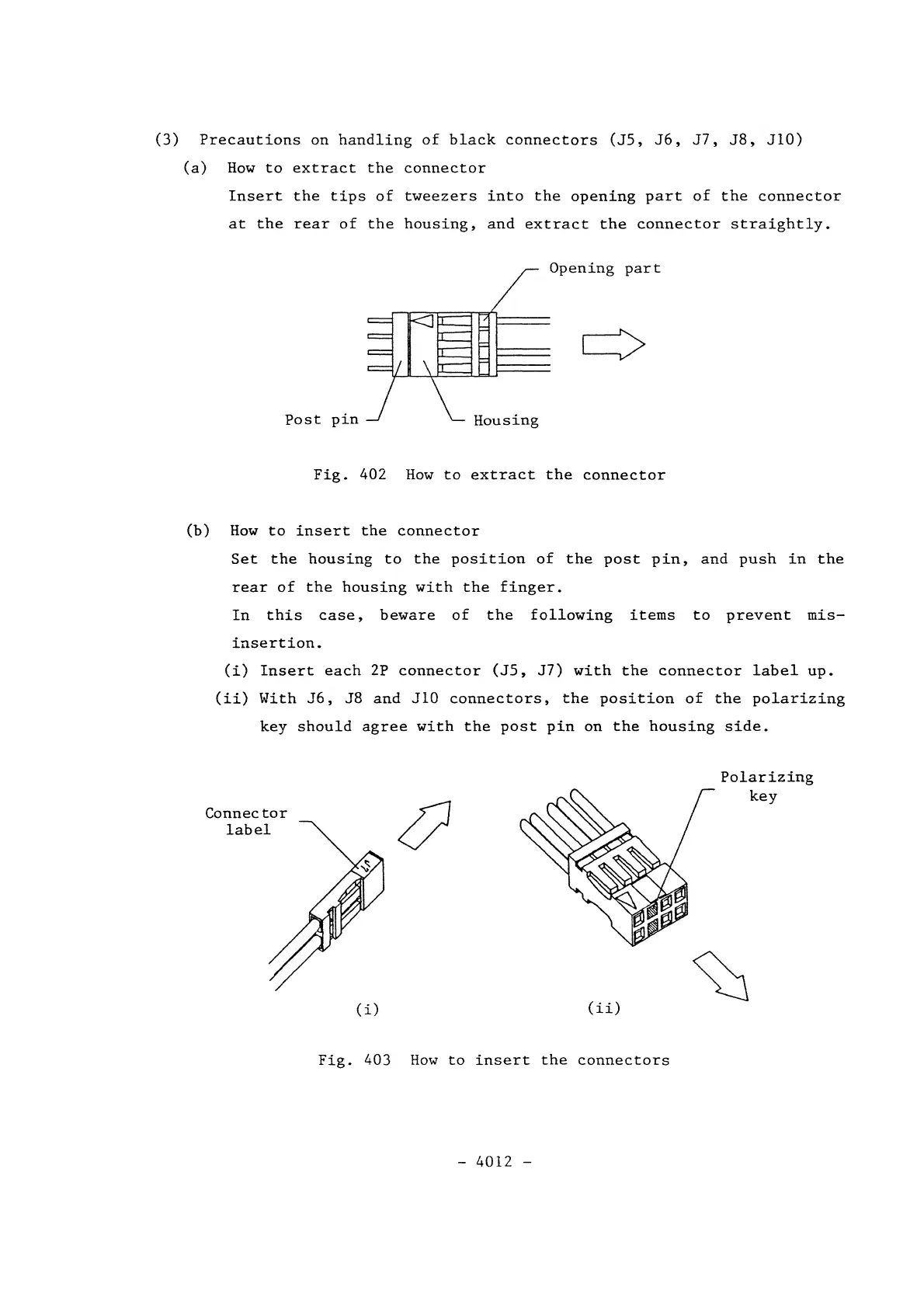

(3)
Precautions
on
handling
of
black
connectors
(J5,
J6,
J7,
J8,
JI0)
(a)
How
to
extract
the
connector
Insert
the
tips
of
tweezers
into
the
opening
part
of
the
connector
at
the
rear
of
the
housing,
and
extract
the
connector
straightly.
Opening
part
Post
pin
Fig.
402
How
to
extract
the
connector
(b)
How
to
insert
the
connector
Set
the
housing
to
the
position
of
the
post
pin,
and
push
in
the
rear
of
the
housing
with
the
finger.
In
this
case,
beware
of
the
following
items
to
prevent
mis-
insertion.
(i)
Insert
each
2P
connector
(J5,
J7)
with
the
connector
label
up.
(ii)
With
J6,
J8
and
JI0
connectors,
the
position
of
the
polarizing
key
should
agree
with
the
post
pin
on
the
housing
side.
Connector
label
(i)
(ii)
Fig.
403
How
to
insert
the
connectors
-
4012
-
Polarizing
key
