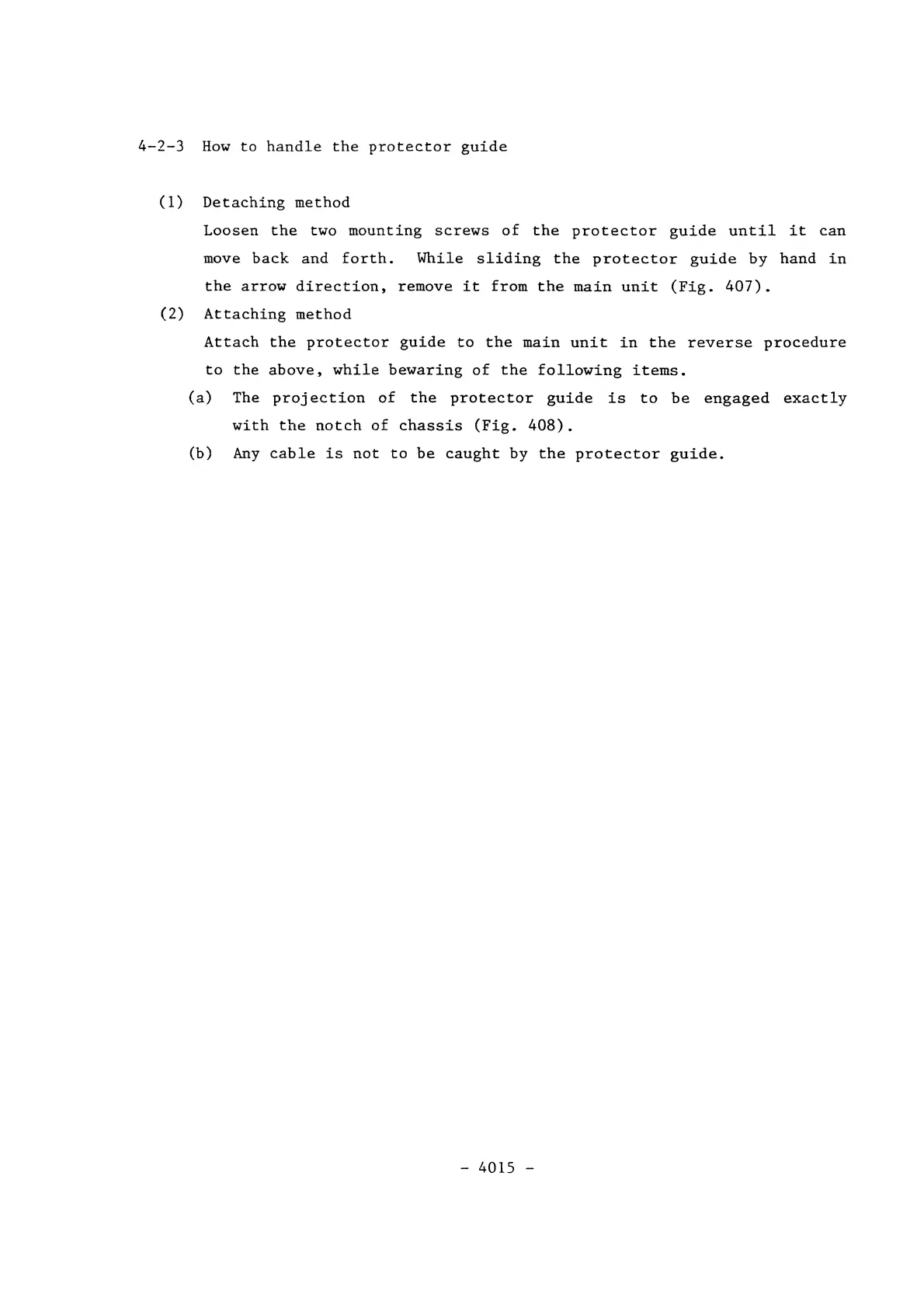

4-2-3 How to handle the protector guide
(1) Detaching method
Loosen the two mounting screws of the protector guide until it can
move back and forth. While sliding the protector guide by hand in
the arrow direction, remove it from the main unit (Fig. 407).
(2) Attaching method
Attach the protector guide to the main unit in the reverse procedure
to the above, while bewaring of the following items.
(a) The projection of the protector guide is to be engaged exactly
with the notch of chassis (Fig. 408).
(b) Any cable is not to be caught by the protector guide.
- 4015 -
