(4)
Handling
methods
for
FPC
connector
J9
(a)
How
to
extract
the
FPC
Lift
up
the
upper
projection
of
the
socket
with
the
connector
jig.
Then,
grip
FPC
with
the
fingers,
and
extract
it
from
the
socket.
At
this
time,
grip
the
reinforced
portion
of
FPC.
If
any
other
part
than
the
reinforced
portion
is
pulled
forcibly,
there
is
a
danger
that
FPC may
be
damaged.
(b)
How
to
insert
the
FPC
While
setting
the
groove
of
FPC
to
the
partition
of
the
socket,
insert
FPC
into
the
socket.
Then,
while
depressing
FPC
to
prevent
it
from
being
disengaged
from
the
socket,
push
in
the
top
of
the
socket
with
the
finger.
After
the
completion
of
connection.
lift
FPC
upward
slightly
with
the
fingers,
and
check
if
the
two
are
connected
tight
with
each
other.
Connector
jig
FPC
D
Connector
J9

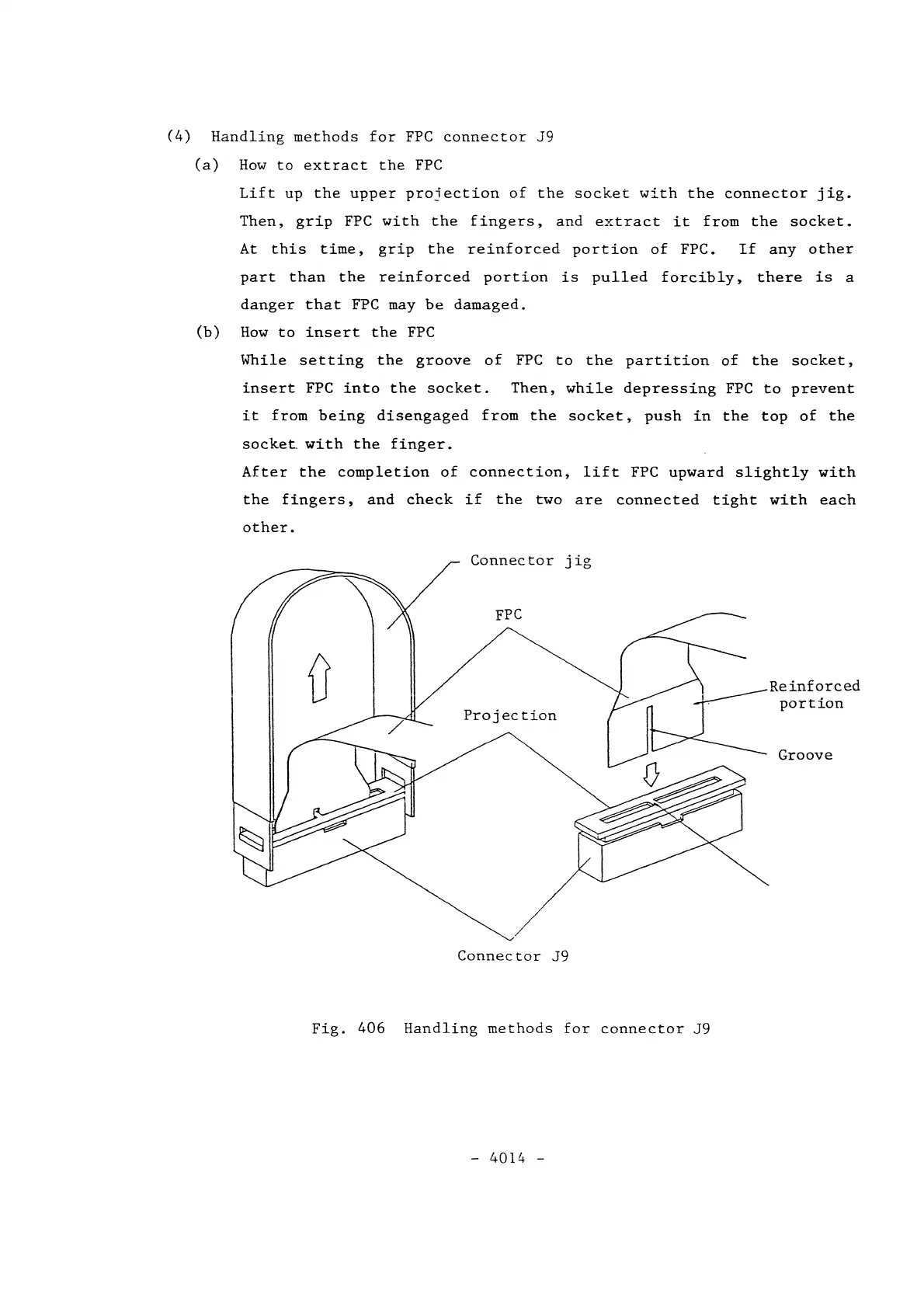

Fig.
406
Handling
methods
for
connector
J9
-
4014
-
Reinforced
portion
Groove
