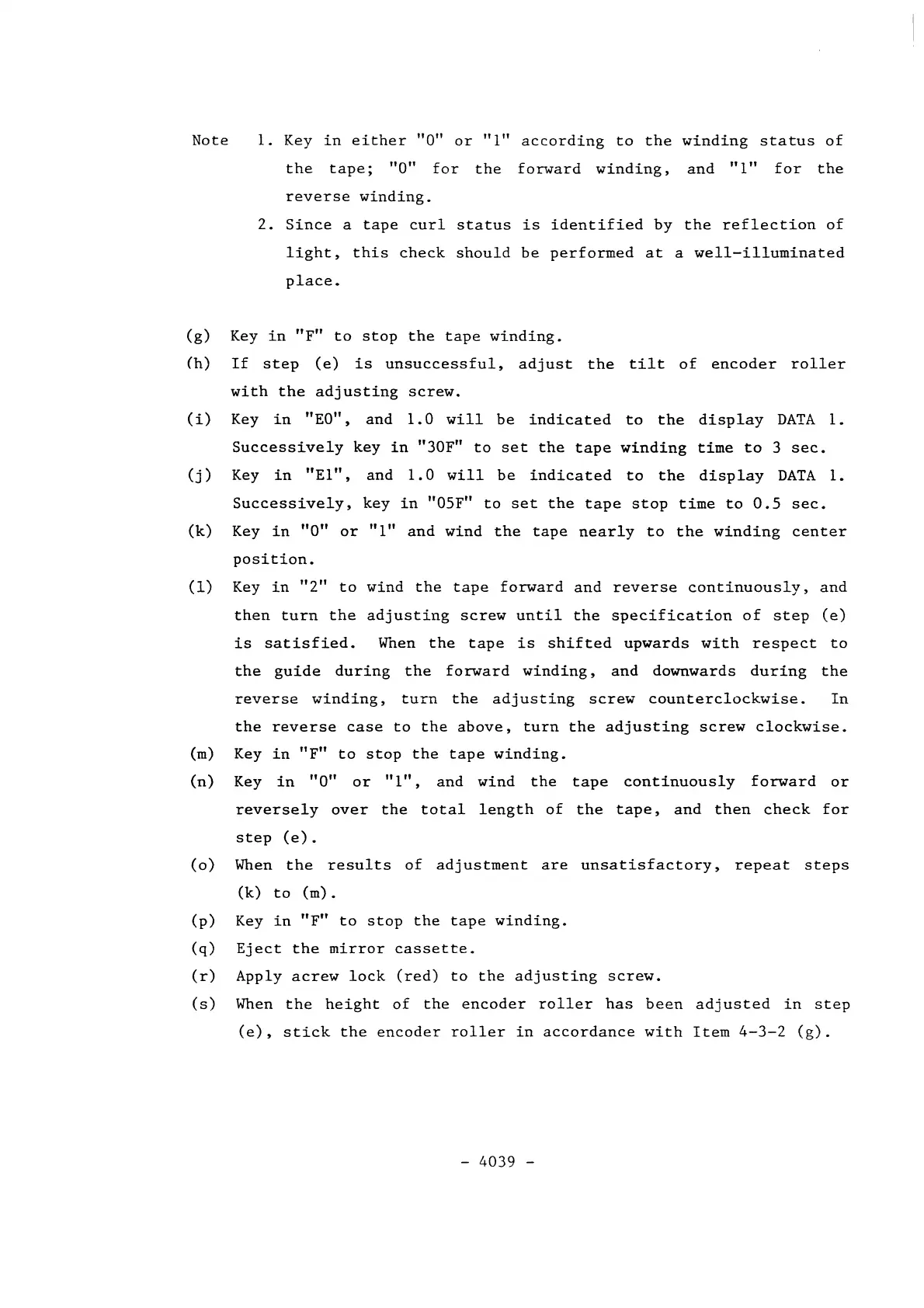

Note
1.
Key
in
either
"0"
or
"1"
according
to
the
winding
status
of
the
tape;
"0"
for
the
forward
winding,
and
"1"
for
the
reverse
winding.
2.
Since
a
tape
curl
status
is
identified
by
the
reflection
of
light,
this
check
should
be
performed
at
a
well-illuminated
place.
(g)
Key
in
"F"
to
stop
the
tape
winding.
(h)
If
step
(e)
is
unsuccessful,
adjust
the
tilt
of
encoder
roller
with
the
adjusting
screw.
(i)
Key
in
"EO",
and
1.0
will
be
indicated
to
the
display
DATA
1.
Successively
key
in
"30F"
to
set
the
tape
winding
time
to
3
sec.
(j)
Key
in
"E1",
and
1.0
will
be
indicated
to
the
display
DATA
1.
Successively,
key
in
"OSF"
to
set
the
tape
stop
time
to
0.5
sec.
(k)
Key
in
"0"
or
"1"
and
wind
the
tape
nearly
to
the
winding
center
position.
(1)
Key
in
"2"
to
wind
the
tape
forward
and
reverse
continuously,
and
then
turn
the
adjusting
screw
until
the
specification
of
step
(e)
is
satisfied.
Wnen
the
tape
is
shifted
upwards
with
respect
to
the
guide
during
the
forward
winding,
and
downwards
during
the
reverse
winding,
turn
the
adjusting
screw
counterclockwise.
In
the
reverse
case
to
the
above,
turn
the
adjusting
screw
clockwise.
(m)
Key
in
"F"
to
stop
the
tape
winding.
(n)
Key
in
"0"
or
"1",
and
wind
the
tape
continuously
forward
or
reversely
over
the
total
length
of
the
tape,
and
then
check
for
step
(e).
(0)
When
the
results
of
adjustment
are
unsatisfactory,
repeat
steps
(k)
to
(m).
(p)
Key
in
"F"
to
stop
the
tape
winding.
(q)
Eject
the
mirror
cassette.
(r)
Apply
acrew
lock
(red)
to
the
adjusting
screw.
(s)
When
the
height
of
the
encoder
roller
has
been
adjusted
in
step
(e),
stick
the
encoder
roller
in
accordance
with
Item
4-3-2
(g).
-
4039
-
