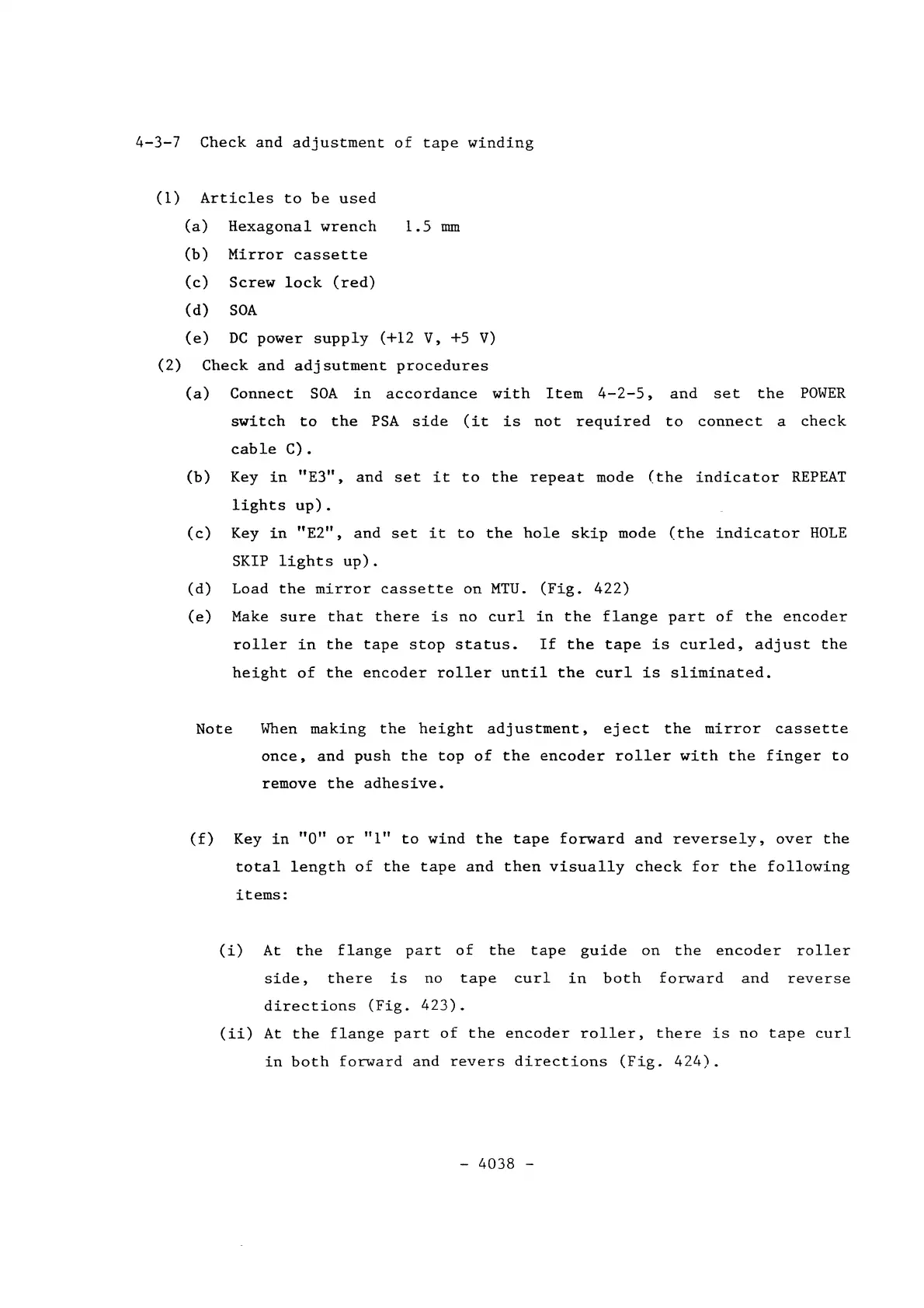

4-3-7
Check
and
adjustment
of
tape
winding
(1)
Articles
to
be
used
(a)
Hexagonal
wrench
(b)
Mirror
cassette
(c)
Screw
lock
(red)
(d)
SOA
1.5
mm
(e)
DC
power
supply
(+12
V,
+5
V)
(2)
Check
and
adjsutment
procedures
(a)
Connect
SOA
in
accordance
with
Item
4-2-5,
and
set
the
POWER
switch
to
the
PSA
side
(it
is
not
required
to
connect
a
check
cable
C).
(b)
Key
in
"E3",
and
set
it
to
the
repeat
mode
(the
indicator
REPEAT
lights
up).
(c)
Key
in
"E2",
and
set
it
to
the
hole
skip
mode
(the
indicator
HOLE
SKIP
light
s
up).
(d)
Load
the
mirror
cassette
on
MTU.
(Fig.
422)
(e)
Make
sure
that
there
is
no
curl
in
the
flange
part
of
the
encoder
roller
in
the
tape
stop
status.
If
the
tape
is
curled,
adjust
the
height
of
the
encoder
roller
until
the
curl
is
sliminated.
Note
When
making
the
height
adjustment,
ej
ect
the
mirror
cassette
once,
and
push
the
top
of
the
encoder
roller
with
the
finger
to
remove
the
adhesive.
(f)
Key
in
"0"
or
"1"
to
wind
the
tape
forward
and
reversely,
over
the
total
length
of
the
tape
and
then
visually
check
for
the
following
items:
(i)
At
the
flange
part
of
the
tape
guide
on
the
encoder
roller
side,
there
is
no
tape
curl
in
both
forward
and
reverse
directions
(Fig.
423).
(ii)
At
the
flange
part
of
the
encoder
roller,
there
is
no
tape
curl
in
both
forward
and
revers
directions
(Fig.
424).
-
4038
-
