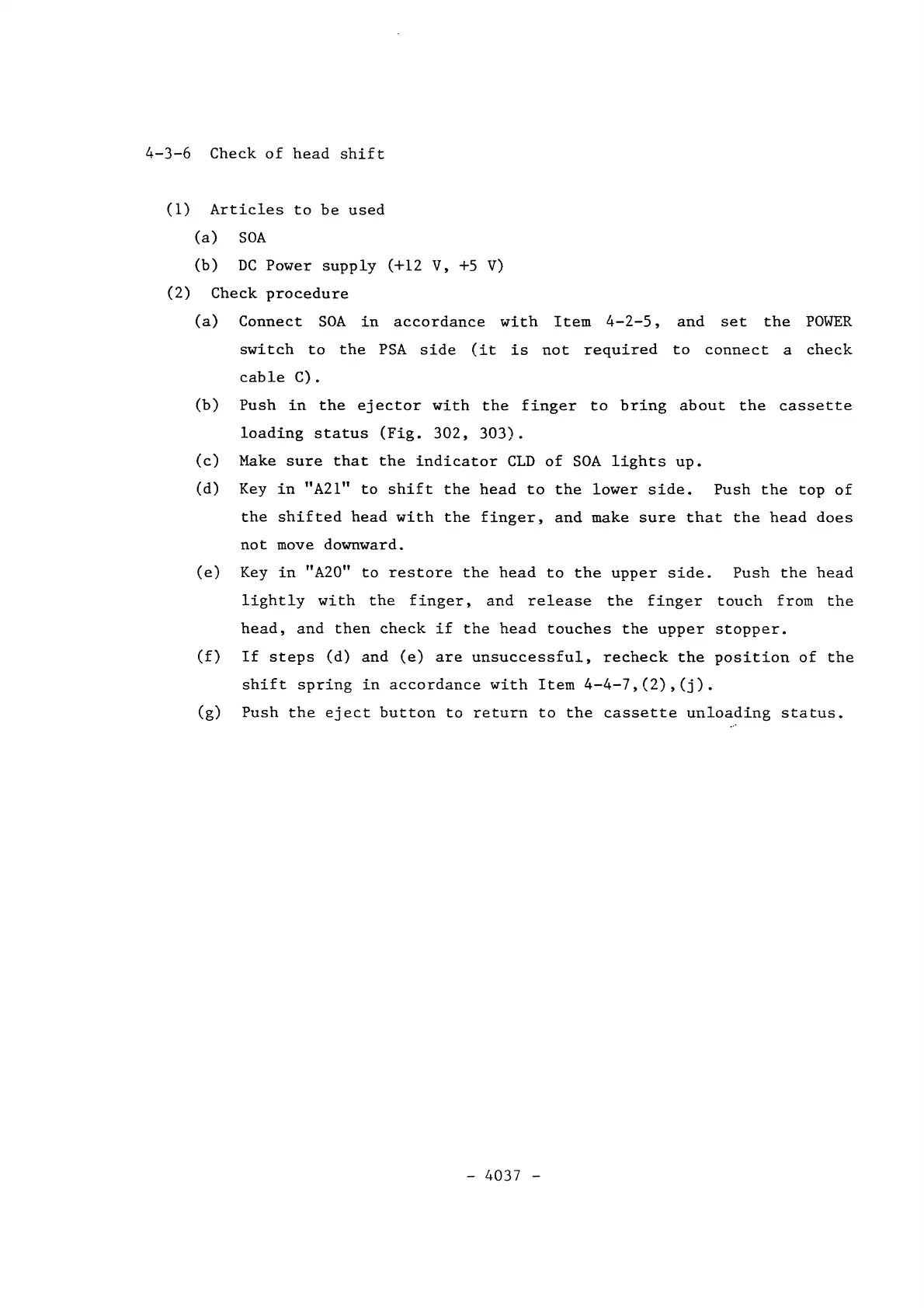

4-3-6
Check
of
head
shift
(1)
Articles
to
be
used
(a)
SOA
(b)
DC
Power
supply
(+12
V.
+5
V)
(2)
Check
procedure
(a)
Connect
SOA
in
accordance
with
Item
4-2-5.
and
set
the
POWER
switch
to
the
PSA
side
(it
is
not
required
to
connect
a
check
cable
C).
(b)
Push
in
the
ejector
with
the
finger
to
bring
about
the
cassette
loading
status
(Fig.
302.
303).
(c)
Make
sure
that
the
indicator
CLD
of
SOA
lights
up.
(d)
Key
in
"A21"
to
shift
the
head
to
the
lower
side.
Push
the
top
of
the
shifted
head
with
the
finger.
and
make
sure
that
the
head
does
not
move
downward.
(e)
Key
in
"A20"
to
restore
the
head
to
the
upper
side.
Push
the
head
lightly
with
the
finger.
and
release
the
finger
touch
from
the
head.
and
then
check
if
the
head
touches
the
upper
stopper.
(f)
If
steps
(d)
and
(e)
are
unsuccessful.
recheck
the
position
of
the
shift
spring
in
accordance
with
Item
4-4-7.(2).(j).
(g)
Push
the
eject
button
to
return
to
the
cassette
unloading
status.
-
