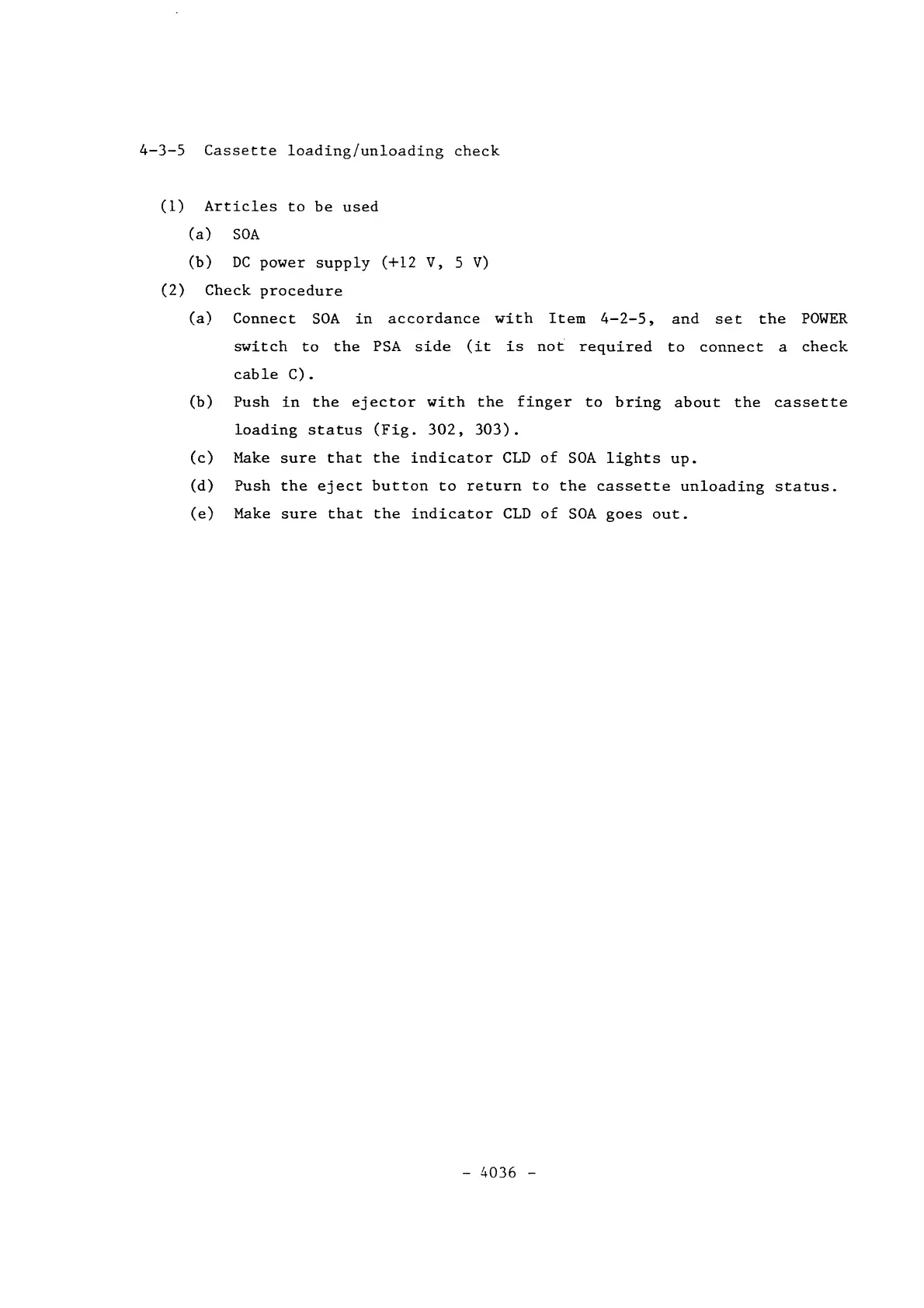

4-3-5
Cassette
loading/unloading
check
(1)
Articles
to
be
used
(a)
SDA
(b)
DC
power
supply
(+12
V, 5
V)
(2)
Check
procedure
(a)
Connect
SDA
in
accordance
with
Item
4-2-5,
and
set
the
POWER
switch
to
the
PSA
side
(it
is
not
required
to
connect
a
check
cable
C).
(b)
Push
in
the
ejector
with
the
finger
to
bring
about
the
cassette
loading
status
(Fig.
30'2, 30'3).
(c)
Hake
sure
that
the
indicator
CLD
of
SDA
lights
up.
(d)
Push
the
eject
button
to
return
to
the
cassette
unloading
status.
(e)
Hake
sure
that
the
indicator
CLD
of
SDA
goes
out.
