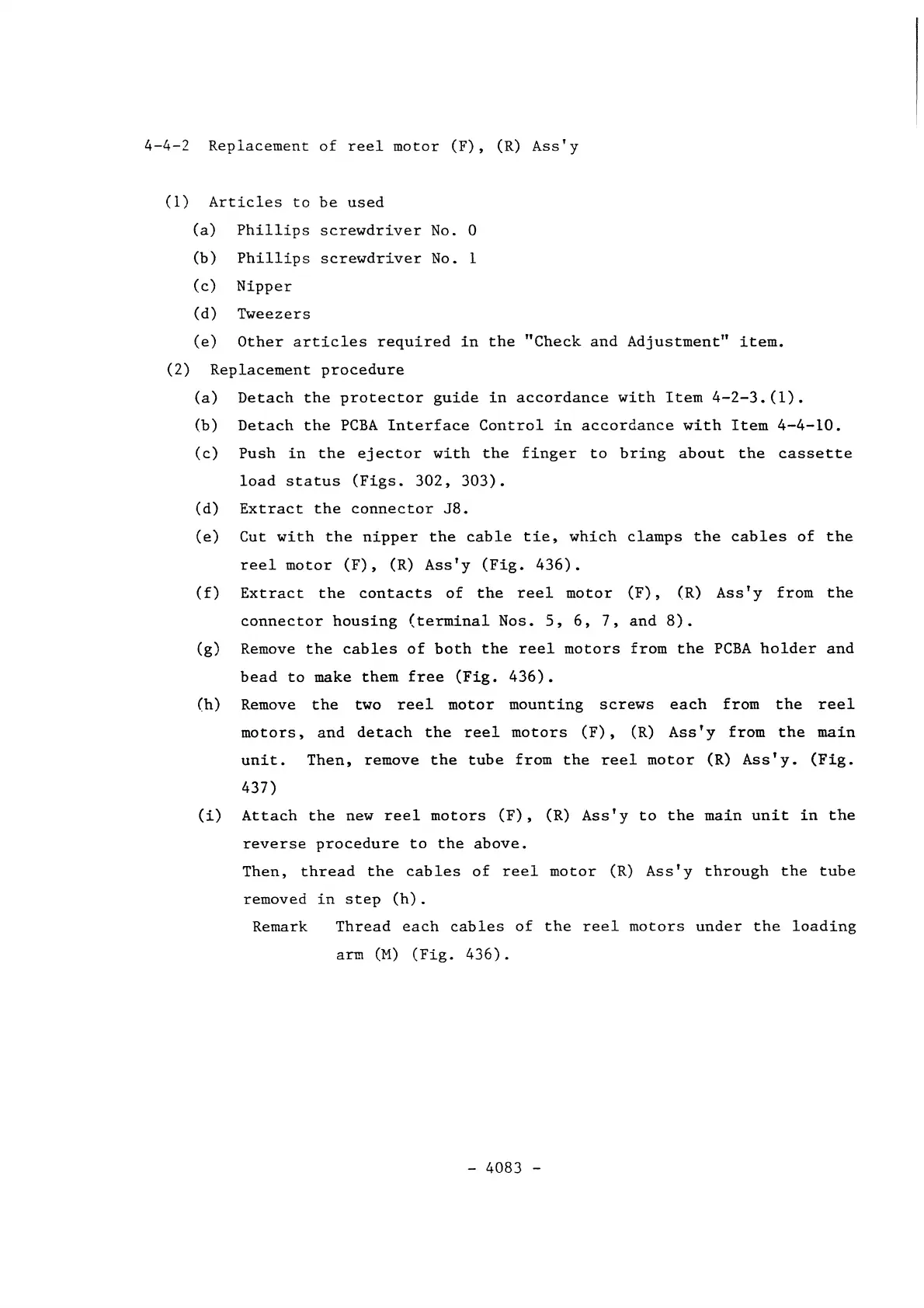

4-4-2
Replacement
of
reel
motor
(F),
(R)
Ass'y
(1)
Articles
to
be
used
(a)
Phillips
screwdriver
No. 0
(b)
Phillips
screwdriver
No. 1
(c)
Nipper
(d)
Tweezers
(e)
Other
articles
required
in
the
"Check
and
Adjustment"
item.
(2)
Replacement
procedure
(a)
Detach
the
protector
guide
in
accordance
with
Item
4-2-3.(1).
(b)
Detach
the
PCBA
Interface
Control
in
accordance
with
Item
4-4-10.
(c)
Push
in
the
ejector
with
the
finger
to
bring
about
the
cassette
load
status
(Figs.
302,
303).
(d)
Extract
the
connector
J8.
(e)
Cut
with
the
nipper
the
cable
tie,
which
clamps
the
cables
of
the
reel
motor
(F),
(R)
Ass'y
(Fig.
436).
(f)
Extract
the
contacts
of
the
reel
motor
(F),
(R)
Ass'y
from
the
connector
housing
(terminal
Nos.
5,
6,
7,
and
8).
(g)
Remove
the
cables
of
both
the
reel
motors
from
the
PCBA
holder
and
bead
to
make them
free
(Fig.
436).
(h)
Remove
the
two
reel
motor
mounting
screws
each
from
the
reel
motors,
and
detach
the
reel
motors
(F),
(R)
Ass'
y from
the
main
unit.
Then,
remove
the
tube
from
the
reel
motor
(R)
Ass'y.
(Fig.
437)
(i)
Attach
the
new
reel
motors
(F),
(R)
Ass'y
to
the
main
unit
in
the
reverse
procedure
to
the
above.
Then,
thread
the
cables
of
reel
motor
(R)
Ass'y
through
the
tube
removed
in
step
(h).
Remark
Thread
each
cables
of
the
reel
motors
under
the
loading
arm
(M)
(Fig.
436).
