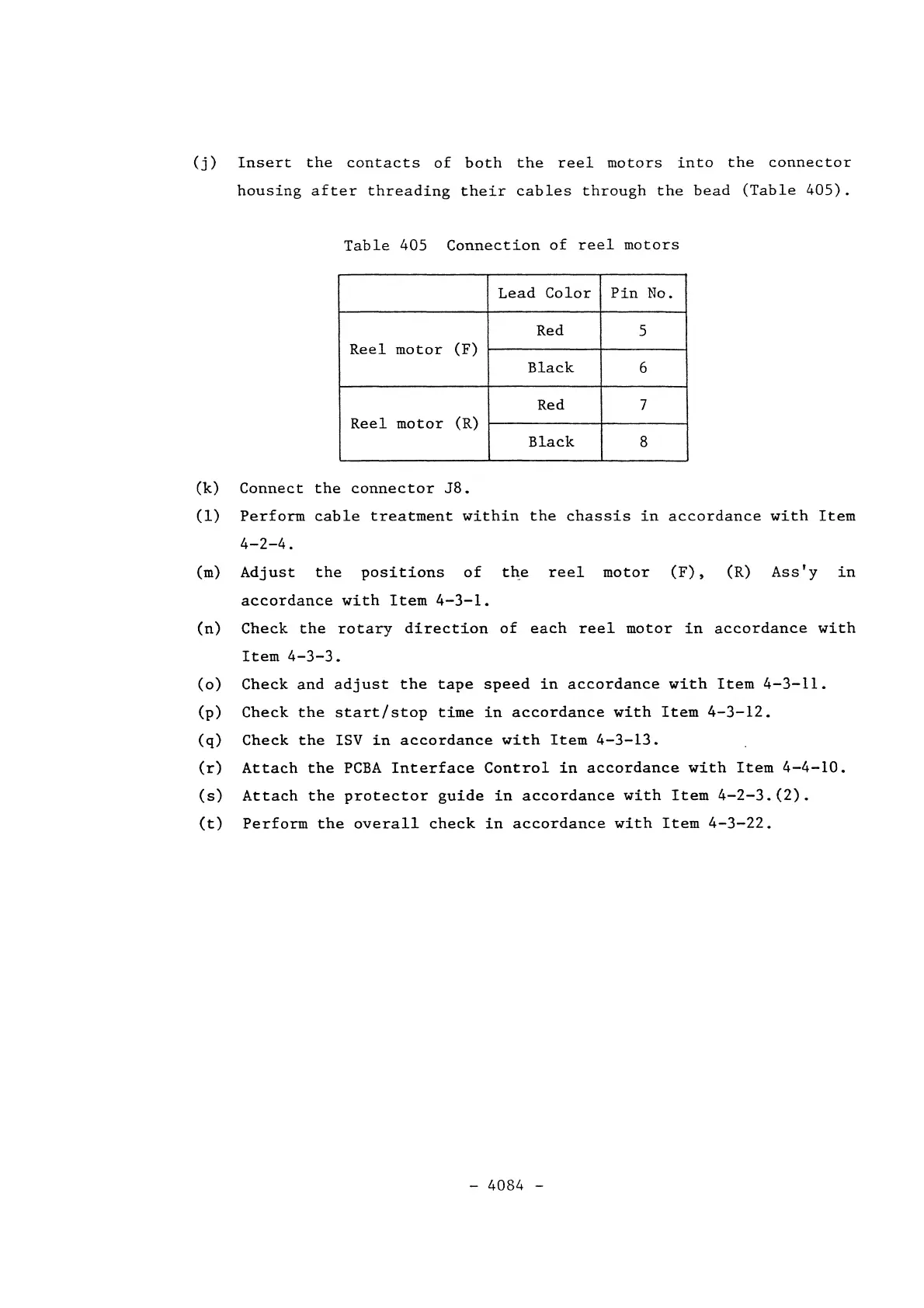

(j)
Insert
the
contacts
of
both
the
reel
motors
into
the
connector
housing
after
threading
their
cables
through
the
bead
(Table
405).
Table
405
Connection
of
reel
motors
Lead
Color
Pin
No.
Red
5
Reel
motor
(F)
Black
6
Red
7
Reel
motor
(R)
Black
8
(k)
Connect
the
connector
J8.
(1)
Perform
cable
treatment
within
the
chassis
in
accordance
with
Item
4-2-4.
(m)
Adjust
the
positions
of
the
reel
motor
(F),
(R)
Ass'y
in
accordance
with
Item
4-3-1.
(n)
Check
the
rotary
direction
of
each
reel
motor
in
accordance
with
Item
4-3-3.
(0)
Check
and
adjust
the
tape
speed
in
accordance
with
Item
4-3-11.
(p)
Check
the
start/stop
time
in
accordance
with
Item
4-3-12.
(q)
Check
the
ISV
in
accordance
with
Item
4-3-13.
(r)
Attach
the
PCBA
Interface
Control
in
accordance
with
Item
4-4-10.
(5)
Attach
the
protector
guide
in
accordance
with
Item
4-2-3.(2).
(t)
Perform
the
overall
check
in
accordance
with
Item
4-3-22.
- 4084 -
