5-2 Disassembly drawings and parts lists of mechanical section
5-2-1 Mechanical parts of MTU

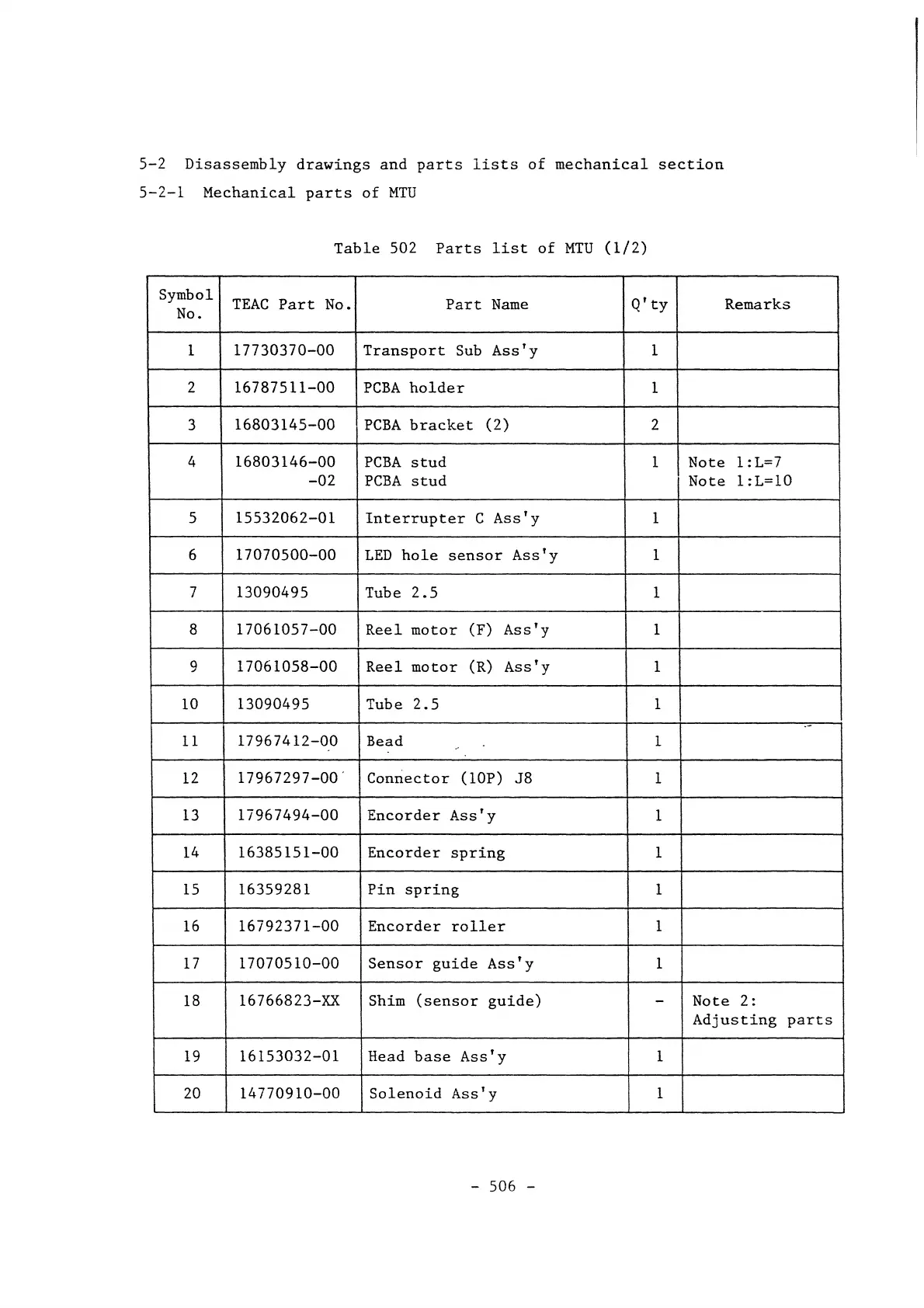

Table 502 Parts list of MTU (1/2)
Symbol
TEAC Part No.
Part
Name Q'ty
Remarks
No.
1
17730370-00 Transport Sub Ass'y
1
2
16787511-00 PCBA holder
1
3
16803145-00 PCBA bracket
(2)
2
4
16803146-00
PCBA stud 1 Note 1 :L=7
-02 PCBA stud
Note
1 :L=10
5 15532062-01 Interrupter
C Ass'y
1
6
17070500-00 LED hole sensor Ass'y
1
7
13090495
Tube 2.5 1
8
17061057-00 Reel motor
(F)
Ass'y
1
9
17061058-00 Reel motor (R) Ass'y
1
10 13090495 Tube 2.5 1
11
17967412-00 Bead
1
.'
12
17967297-00'
Connector (lOP)
J8 1
13 17967494-00 Encorder
ASs'y
1
14
16385151-00
Encorder
spring 1
15 16359281
Pin spring
1
16 16792371-00 Encorder roller 1
17
17070510-00 Sensor guide
ASs'y
1
18
16766823-XX Shim (sensor guide)
-
Note 2:
.-
Adjusting parts
19
16153032-01 Head base Ass'y 1
20 14770910-00
Solenoid Ass'y 1
-
506 -
