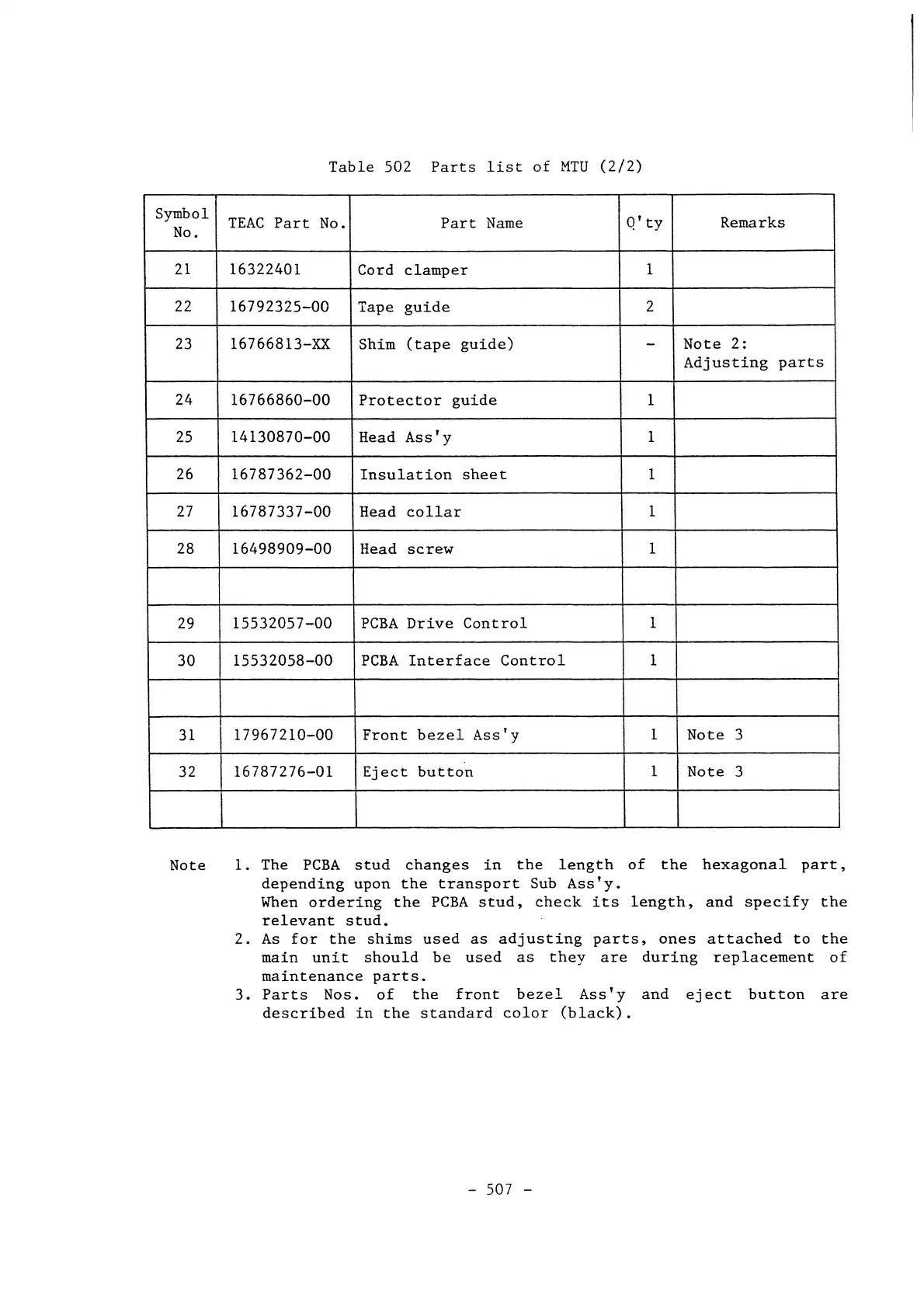

Table 502 Parts list of MTU (2/2)
Symbol
TEAC Part
No. Part Name
Q'ty
Remarks
No.
21
16322401
Cord clamper
1
22
16792325-00 Tape
guide
2
23 16766813-XX Shim (tape guide)
-
Note 2:
Adjusting
parts
24 16766860-00 Protector guide
1
25 14130870-00
Head Ass'y 1
26
16787362-00 Insulation
sheet
1
27 16787337-00 Head collar
1
28
16498909-00
Head screw 1
29
15532057-00 PCBA Drive Control
1
30
15532058-00
PCBA Interface Control
1
31 17967210-00
Front
bezel Ass'y 1 Note
3
32 167872 76-01 Eject button
1 Note
3
Note 1. The PCBA stud changes in the length of the hexagonal part,
depending upon the transport Sub Ass'y.
When ordering the PCBA stud, check its length, and specify the
relevant stud.
2. As for the shims used as adjusting parts, ones attached to the
main unit should be used as they are during replacement of
maintenance parts.
3. Parts Nos. of the front bezel Ass'y and eject button are
described in the standard color (black).
- 507 -
