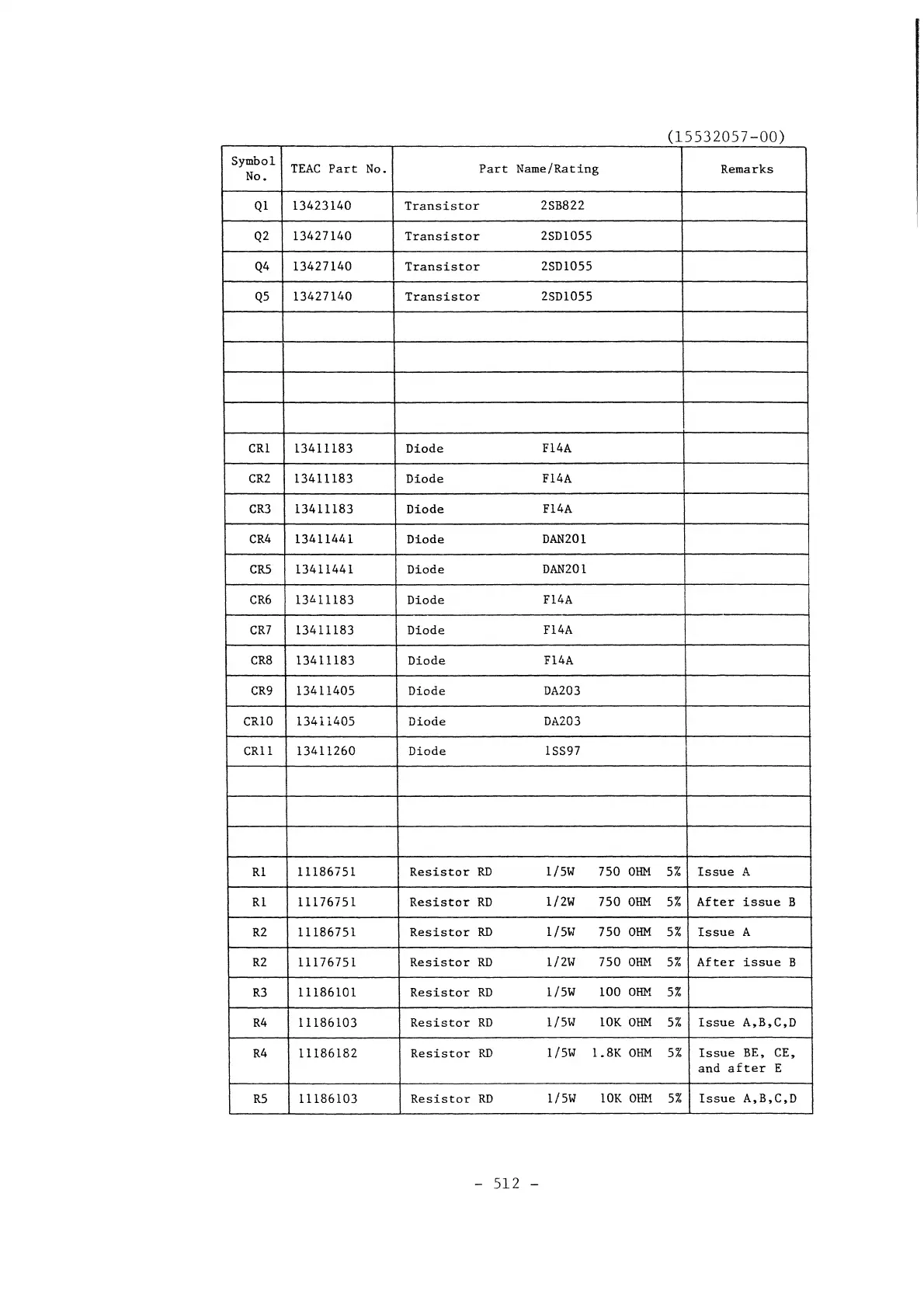

Teac MT-20D-IO - Page 221

(15532057-00)
Symbol
TEAC Part No. Part
Name/Rating
Remarks
No.
Ql
13423140 Transistor 2SB822
Q2
13427140
Transistor
2SDI055
Q4
13427140 Transistor
2SDI055
Q5
13427140
Transistor
2SDI055
CRI 13411183 Diode
Fl4A
CR2 13411183 Diode
F14A
CR3 13411183
Diode
F14A
CR4 13411441 Diode DAN201
CRS
13411441 Diode DAN201
CR6 13.1.11183 Diode
Fl4A
CR7 13411183 Diode
Fl4A
CR8
13411183 Diode
Fl4A
CR9 13411405 Diode DA203
CR10 13411405 Diode DA203
CRll 13411260 Diode 1SS97
R1 11186751
Resistor RD 1/5W 750 OHM
5%
Issue A
R1 11176751
Resistor RD 1/2W 750 OHM 5% After issue
B
R2 11186751
Resistor RD 1/5W 750 OHM
5%
Issue A
R2 11176751 Resistor RD
1/2\01
750
OHM
5% After
issue
B
R3 11186101 Resistor RD
1/5W 100 OHM
5%
R4 11186103 Resistor RD
1/SW 10K OHM
5%
Issue
A,B,C,D
R4 11186182 Resistor RD
1/5W 1.8K OHM 5%
Issue BE, CE,
and after E
R5 11186103 Resistor RD
1/5W 10K OHM 5%
Issue A,B,C,D
- 512 -
