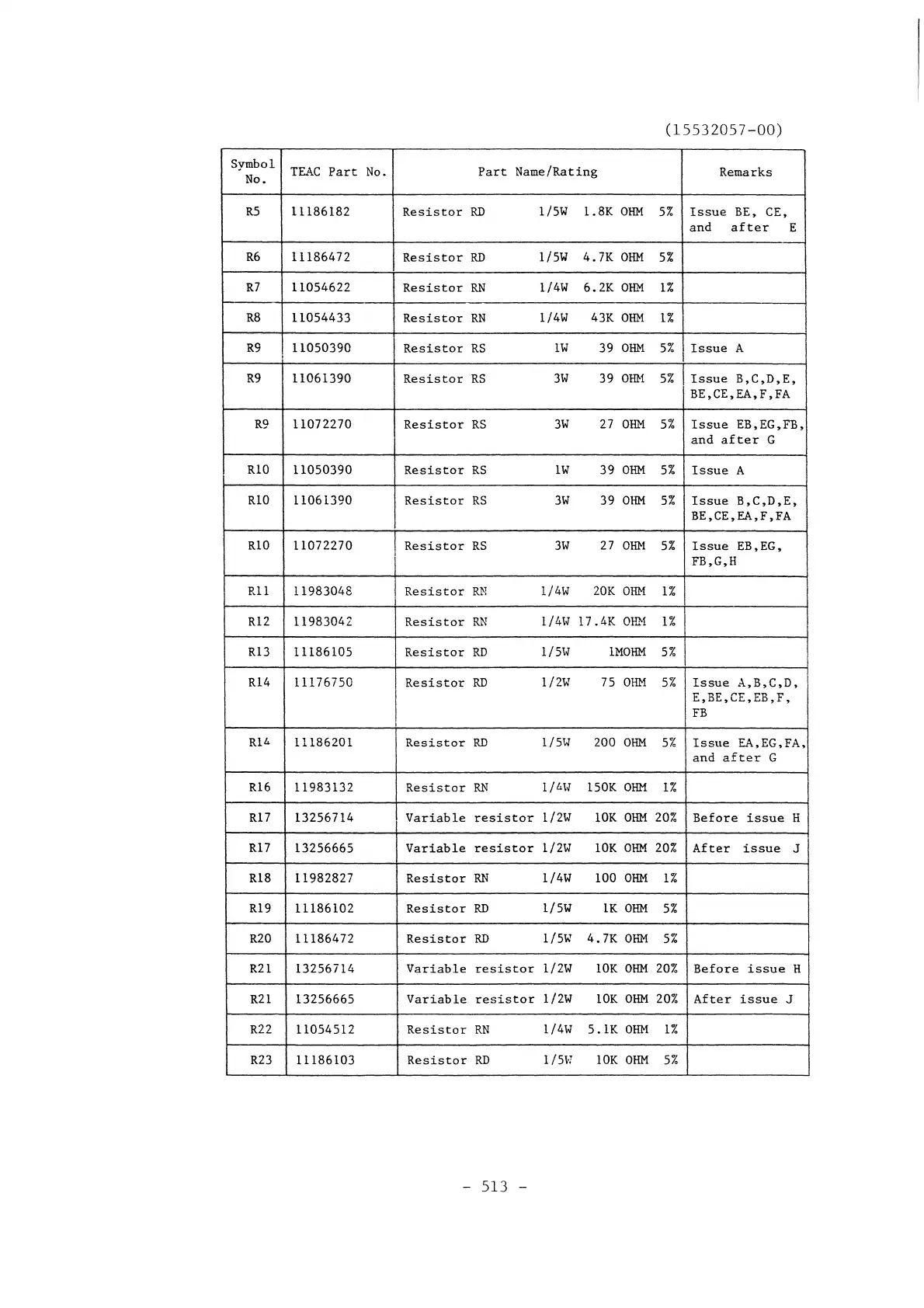

Symbol
TEAC Part No. Part
Name/Rating
Remarks
No.
R5 11186182 Resistor RD
1/5W 1.8K OHM
5% Issue BE. CEo
and after
E
R6 11186472
Resistor RD
1/5W 4.7K OHM
5%
R7 11054622
Resistor RN
1/4W
6.2K OHM 1%
R8
11054433 Resistor
RN
1/4W
43K OHM
1%
R9
11050390 Resistor
RS
lW
39 OHM
5% I Issue
A
,
R9
11061390 Resistor RS
3W
39
OHH
5%
Issue B.C.D.E.
BE.CE.EA.F.FA
R9 11072270
Resistor RS
3W 27 OHM
5%
Issue EB.EG.FB.
and after G
RIO
11050390 Resistor RS lW 39 OHM 5%
Issue A
RIO 11061390
Resistor RS
3W
39 OHM 5%
Issue B,C.D.E,
BE.CE,EA,F,FA
RIO 11072270
Resistor RS
3W 27 OHH
5% Issue EB.EG,
FB.G.H
Rll 11983048 Resistor RN 1/4W
20K OHM
1%
R12
11983042 Resistor RN
1/4\~ 17. 4K OHM
1%
R13
11186105 Resistor
RD
1/5\-1'
IHOHM
5%
R14 11176750
Resistor RD
1/2W 75 OHM
5% Issue A.B.C,D,
E.BE,CE,EB,F,
FB
Rll..
11186201 Resistor RD 1/5W 200 OHM
5% Issue EA.EG,FA,
and after G
R16
11983132 Resistor
RN
1/l..W
150K OHM 1%
R17 13256714 Variable resistor 1/2W 10K OHM 20%
Before issue H
R17
13256665 Variable resistor 1/2W 10K OHM 20% After issue
J
R18
11982827 Resistor RN
1/4W 100 OHM
1%
R19
11186102 Resistor RD
1/5W lK OHM
5%
R20
11186472 Resistor RD
1/5W 4.7K OHM
5%
R21 13256714 Variable resistor 1/2W 10K OHM 20% Before issue H
R21 13256665
Variable resistor 1/2W 10K OHM 20%
After issue J
R22
11054512 Resistor RN
1/4W 5.1K OHM 1%
R23 11186103 Resistor
RD
1/5H 10K OHM 5%
