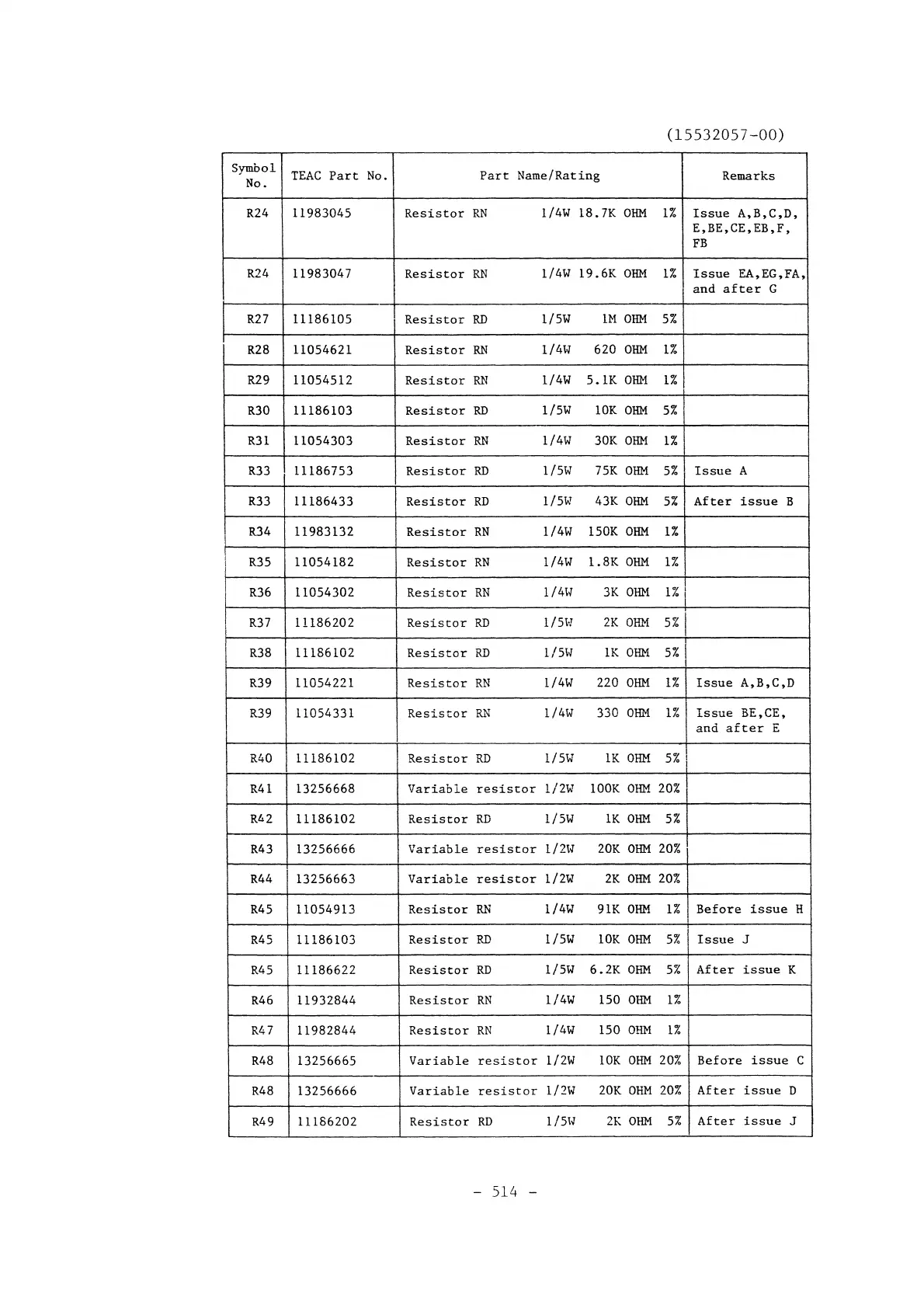

Teac MT-20D-IO - Page 223

(15532057-00)
Symbol
TEAC Part No.
Part Name/Rating
Remarks
No.
R24 11983045
Resistor RN
l/4W 18.7K OHM
1%
Issue A,B,C,D,
E,BE,CE,EB,F,
FB
R24
11983047 Resistor RN
l/4W 19.6K OHM
1%
Issue EA,EG,FA,
and after G
R27 11186105
Resistor RD
1/5W 1M OHM
5%
R28 11054621 Resistor
RN
1/4W
620 OHM
1%
R29
11054512 Resistor RN
1/4W 5.1K OHM
1%
R30 11186103 Resistor RD
1/5W 10K OHM
5%
R31 11054303 Resistor RN
1/4W 30K OHM
1%
R33 11186753 Resistor RD
1/5W 75K OHM
5%
Issue A
R33 11186433 Resistor RD
1/5W 43K OHM
5%
After issue
B
R34 11983132 Resistor RN 1/4W
150K OHM
1%
R35
11054182
Resistor RN
1/4W
1.8K OHM
1%
R36 11054302
Resistor RN
1/4\-1 3K OHM
1% I
R37 11186202 Resistor RD
1/5H 2K OHM
5%
R38 11186102
Resistor RD 1!5W
lK OHM 5%
R39 11054221 Resistor RN
1/4W 220 OHM
1%
Issue A,B,C,D
R39 11054331 Resistor RN
1/4W 330 OHM
1%
Issue BE,CE,
and after E
R40 11186102 Resistor RD 1/5H lK OHM 5%
R41 13256668
Variable resistor l/2W lOOK OHM 20%
R42
11186102
Resistor
RD
1/5W lK OHM
5%
R43 13256666
Variable resistor
1/2\.]
20K OHM 20%
R44
13256663
Variable resistor 1/2W 2K OHM 20%
R45 11054913 Resistor RN
1/4W 91K OHM
1%
Before issue H
R45 11186103
Resistor RD
1/5W 10K OHM
5%
Issue J
R45 11186622 Resistor RD
1/5W 6.2K OHM
5%
After issue K
R46 11932844
Resistor RN
1/4W
150 OHM 1%
R47
11982844
Resistor RN
1/4W 150 OHM
1%
R48 13256665
Variable resistor 1/2W 10K OHM 20%
Before issue C
R48
13256666
Variable resistor 1/2W
20K OHM 20% After issue D
R49
11186202 Resistor RD
1/5t.]
2K OHM
5% After issue J
