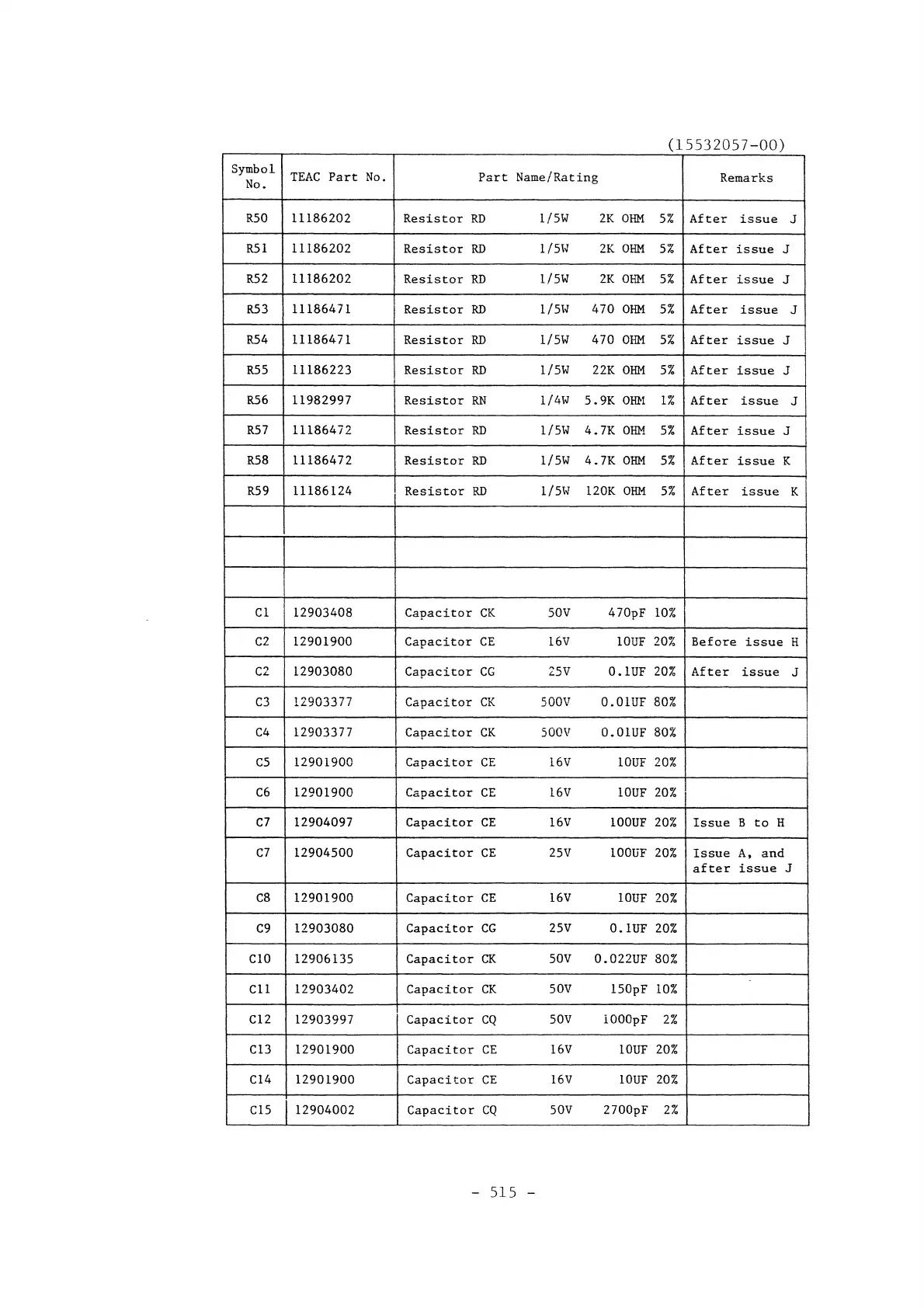

Teac MT-20D-IO - Page 224

(15532057-00)
Symbol
TEAC Part No.
Part Name/Rating
Remarks
No.
R50 11186202 Resistor
RD
l/5W 2K
OHM
5%
After
issue
J
RS1 11186202
Resistor RD
l/5H 2K OHM
5% After
issue J
RS2 11186202
Resistor RD 1/5W 2K OHM
5%
After
issue
J
RS3
11186471
Resistor RD 1/5W 470 OHM
5%
After
issue
J
RS4 11186471
Resistor RD 1/5W 470 OHM
5%
After
issue
J
RS5 11186223 Resistor RD 1/5W 22K OHM
5%
After
issue
J
RS6
11982997 Resistor
RN
l/4W
5.9K OR}!
1% After issue
J
R57 11186472 Resistor RD 1/5W
4.7K OHM
5%
After
issue J
R58 11186472 Resistor RD 1/5W 4.7K OHM
5% After issue K
R59 11186124 Resistor RD
l/5\{
120K OHM
5%
After
issue K
Cl 12903408 Capacitor CK 50V 470pF
10%
C2 12901900
Capacitor CE
16V
10UF 20% Before issue
R
C2 12903080 Capacitor CG 25V O.IUF 20%
After issue
J
C3 12903377 Capacitor CK SOOV O.OIUF 80%
C4
12903377 Capacitor CK 500V O.OlUF 80%
C5 12901900 Capacitor CE 16V 10UF 20%
C6 12901900 Capacitor CE 16V 10UF 20%
C7 12904097 Capacitor CE 16V 100UF 20%
Issue B to R
C7
12904500 Capacitor CE 25V 100UF
20% Issue
A. and
after
issue J
C8
12901900
Capacitor CE 16V 10UF
20%
C9
12903080 Capacitor CG
25V
O.IUF 20%
CI0 12906135 Capacitor CK
50V
0.022UF 80%
C11 12903402 Capacitor CK
SOV
150pF 10%
Cl2
12903997
Capacitor
CQ
50V iOOOpF
2%
C13 12901900 Capacitor CE
16V
10UF 20%
C14 12901900 Capacitor CE 16V 10UF 20%
CIS 12904002 Capacitor CQ
SOV
2700pF 2%
