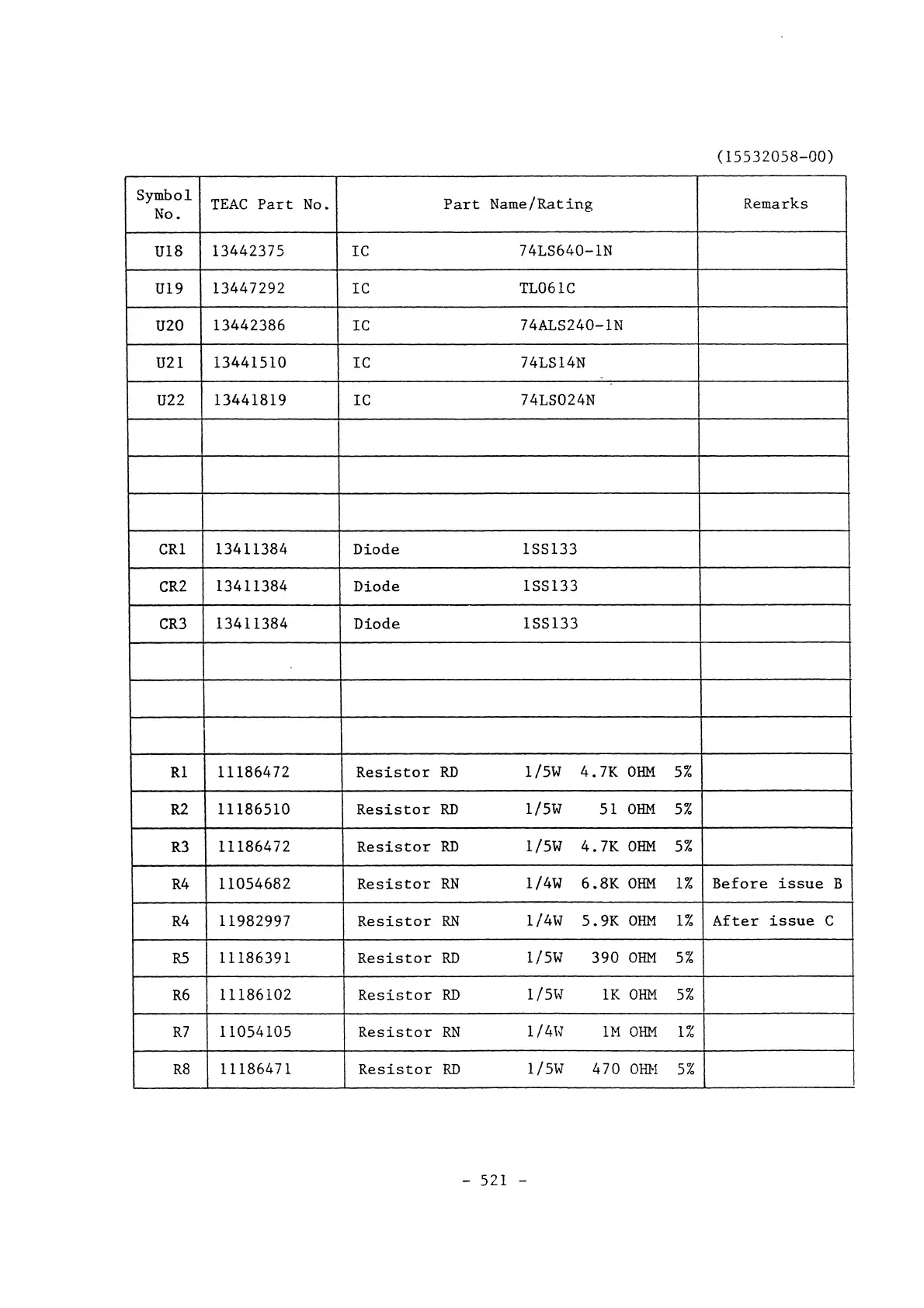

Teac MT-20D-IO - Page 230

(15532058-00)
Symbol
TEAC Part No. Part
Name/Rating
Remarks
No.
U18
13442375 IC
74LS640-1N
U19
13447292
IC
TL061C
U20
13442386 IC 74ALS240-1N
U21 13441510 IC 74LS14N
U22 13441819
IC
74LS024N
CRI 13411384 Diode
ISS133
CR2
13411384 Diode 1SS133
CR3 13411384 Diode
ISS133
I
Rl 11186472
Resistor RD 1/5W 4.7K OHM 5%
R2
11186510 Resistor RD 1/5W 51 OHM 5%
R3 11186472
Resistor RD
1/5W
4.7K OHM 5%
R4
11054682 Resistor
RN 1/4W 6.8K OHM 1%
Before issue B
R4 11982997
Resistor
RN
1/4W
5.9K OHM 1%
After issue C
R5
11186391
Resistor
RD
1/5W 390 OHM
5%
R6
11186102 Resistor RD
1/51;{
1K OHM 5%
R7 11054105 Resistor RN
1/4"1 1M OHM
1%
R8
11186471
Resistor RD
1/5W 470 ORN
5%
- 521 -
