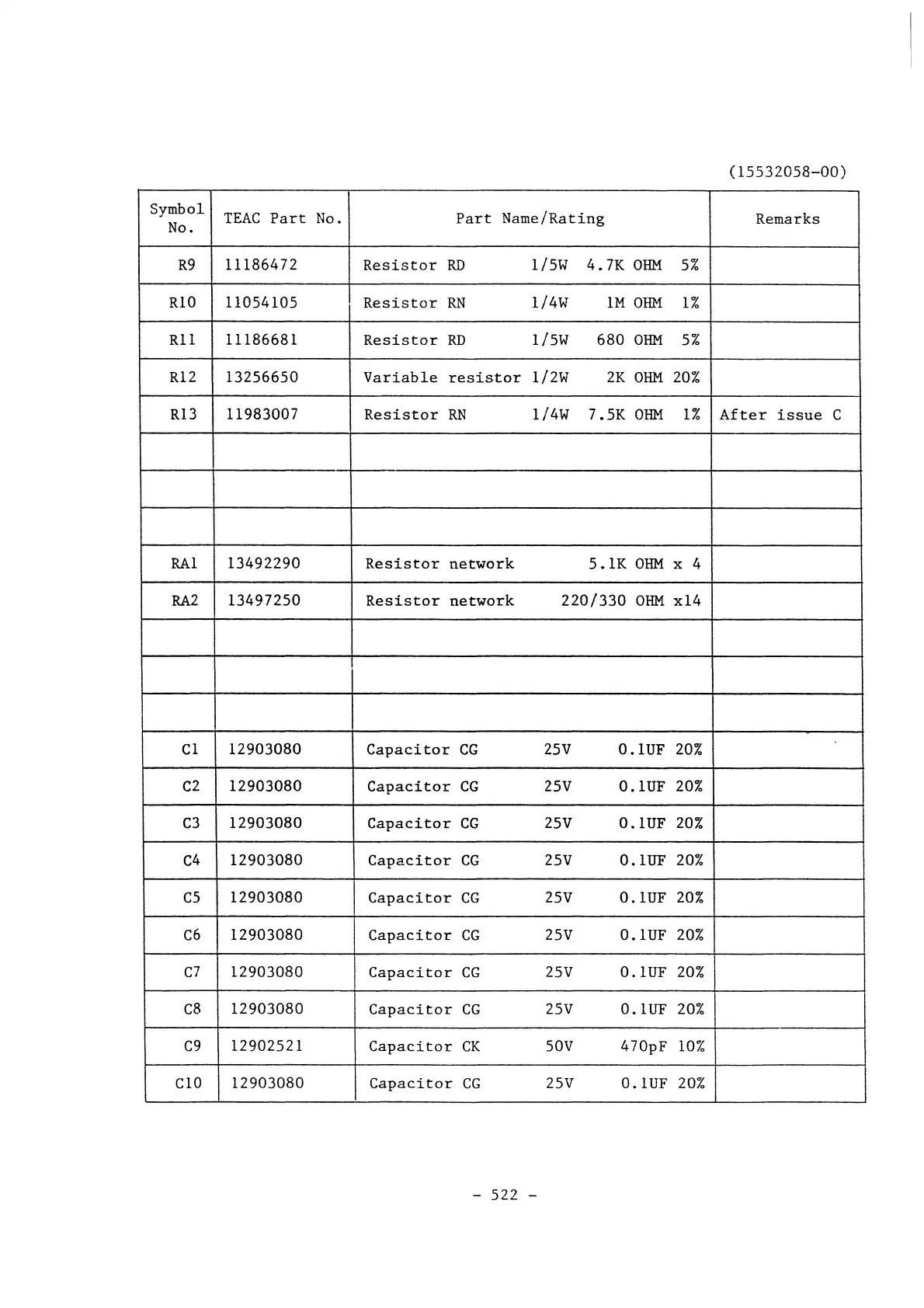

Teac MT-20D-IO - Page 231

(15532058-00)
Symbol
TEAC Part
No. Part Name/Rating
Remarks
No.
R9 11186472 Resistor RD
1/5W
4.7K OHM
5%
RIO 11054105 Resistor
RN 1/4W
1M OHM
1%
Rll
11186681
Resistor RD
1/5W
680 OHM 5%
R12
13256650 Variable
resistor l/2W
2K OHM 20%
R13
11983007 Resistor
RN
l/4W 7.5K OHM 1% After
issue C
RAI 13492290
Resistor network 5.1K OHM x 4
RA2 13497250 Resistor network 220/330 OHM x14
Cl 12903080 Capacitor CG
25V O.lUF 20%
C2 12903080 Capacitor
CG
25V
O.IUF
20%
C3 12903080 Capacitor
CG
25V O.IUF
20%
C4 12903080 Capacitor CG
25V
O.IUF 20%
C5
12903080
Capacitor CG
25V
O.lUF 20%
C6 12903080 Capacitor
CG
25V O.IUF 20%
C7 12903080
Capacitor CG
25V O.lUF
20%
C8
12903080
Capacitor CG
25V
O.IUF 20%
C9
12902521
Capacitor CK SOV 470pF
10%
CI0 12903080 Capacitor
CG
25V O.IUF 20%
