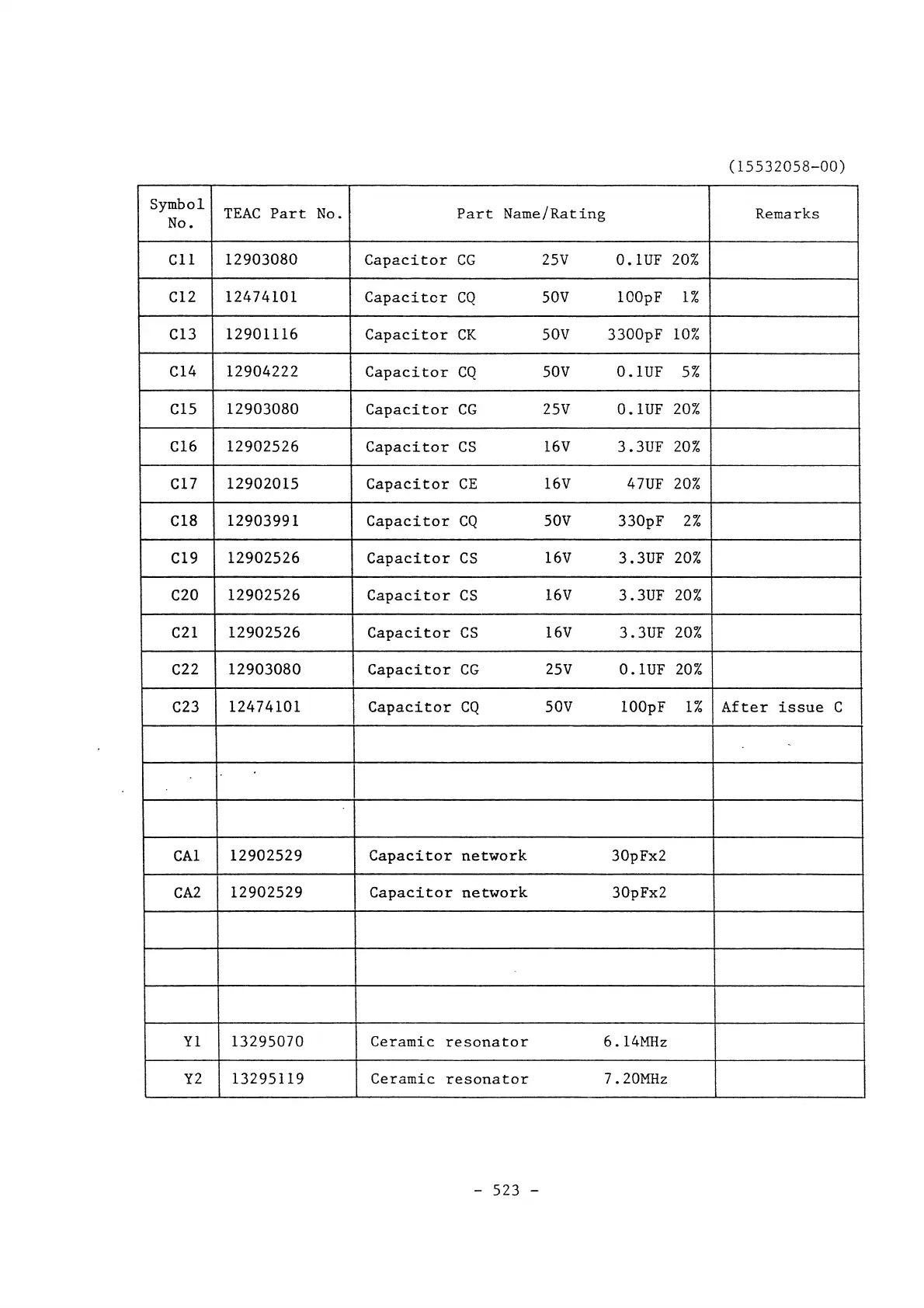

(15532058-00)
Symbol
TEAC Part No.
Part
Name/Rating
Remarks
No.
Cll 12903080
Capacitor CG 25V O.lUF 20%
C12
12474101
Capacitor
CQ
50V 100pF 1%
C13
12901116
Capacitor CK 50V 3300pF 10%
C14 12904222
Capacitor
CQ
50V O.lUF
5%
C15 12903080
Capacitor CG
25V
O.lUF
20%
C16 12902526
Capacitor
CS
16V
3.3UF 20%
Cl7 12902015 Capacitor CE 16V 47UF 20%
C18
12903991
Capacitor
CQ
50V
330pF 2%
C19
12902526 Capacitor
CS
16V
3.3UF
20%
C20 12902526 Capacitor
CS
16V
3.3UF 20%
C21 12902526 Capacitor
CS
16V
3.3UF 20%
C22 12903080
Capacitor CG
25V
O.lUF 20%
C23 12474101 Capacitor CQ 50V 100pF 1% After
issue C
I
CAl
12902529 Capacitor network
30pFx2
CA2
12902529 Capacitor network 30pFx2
Yl 13295070 Ceramic resonator 6. 14MHz
Y2 13295119 Ceramic resonator 7.20MHz
- 523 -
