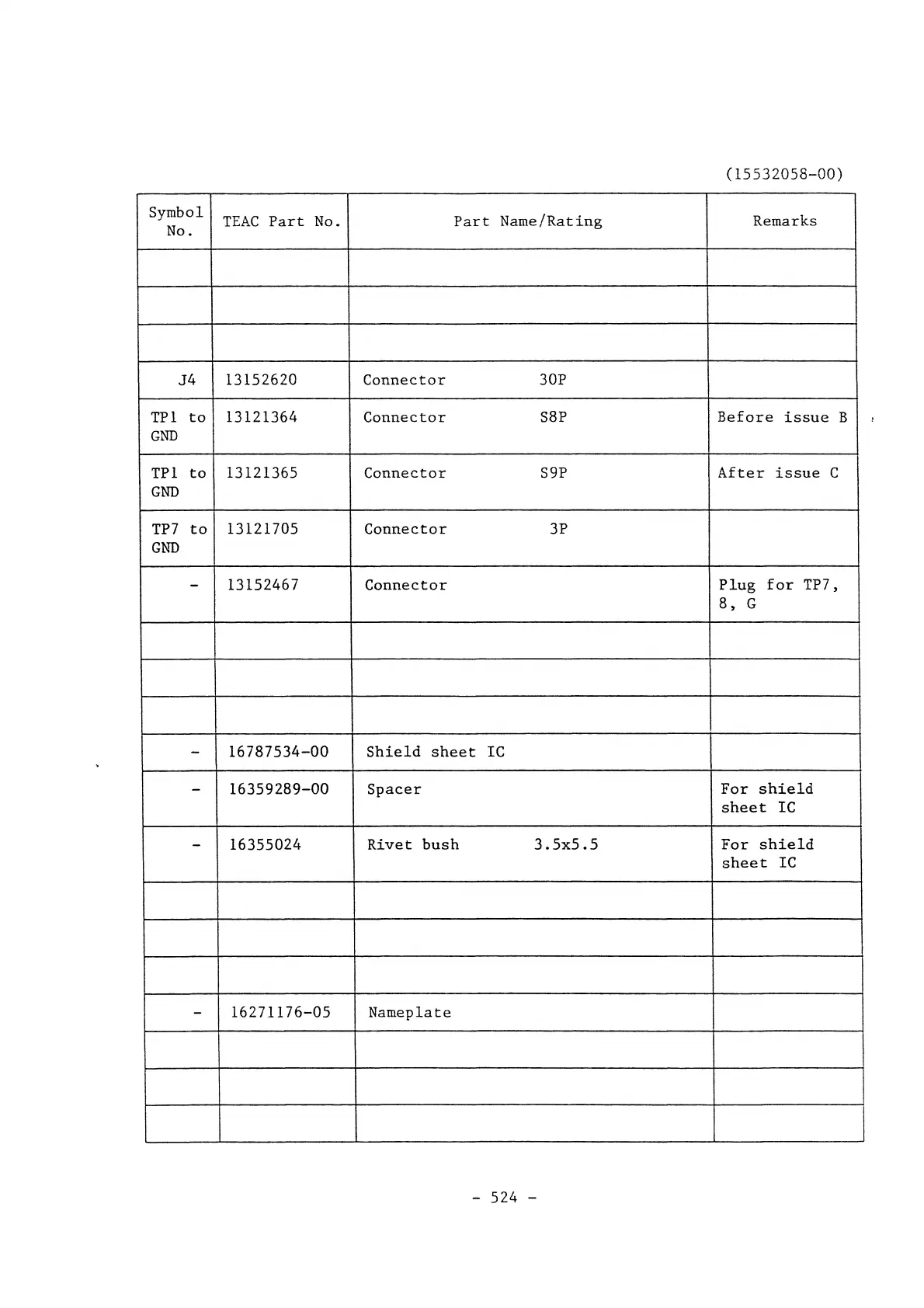

(15532058-00)
Symbol
TEAC Part No. Part Name/Rating
Remarks
No.
J4
13152620 Connector 30P
TP1 to 13121364 Connector S8P
Before
issue
B
GND
TP1 to 13121365
Connector S9P After issue C
GND
TP7
to 13121705 Connector 3P
GND
-
13152467 Connector Plug
for TP7,
8, G
-
16787534-00
Shield sheet Ie
-
16359289-00
Spacer For shield
sheet Ie
-
16355024
Rivet bush 3.5x5.5
For shield
sheet Ie
- 16271176-05 Nameplate
- 524 -
